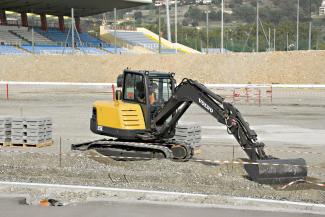

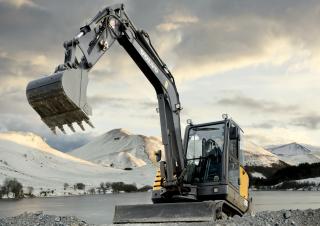

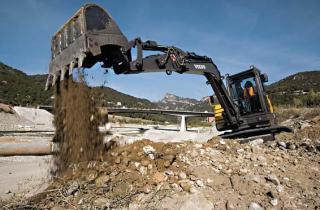

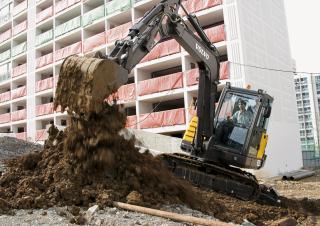

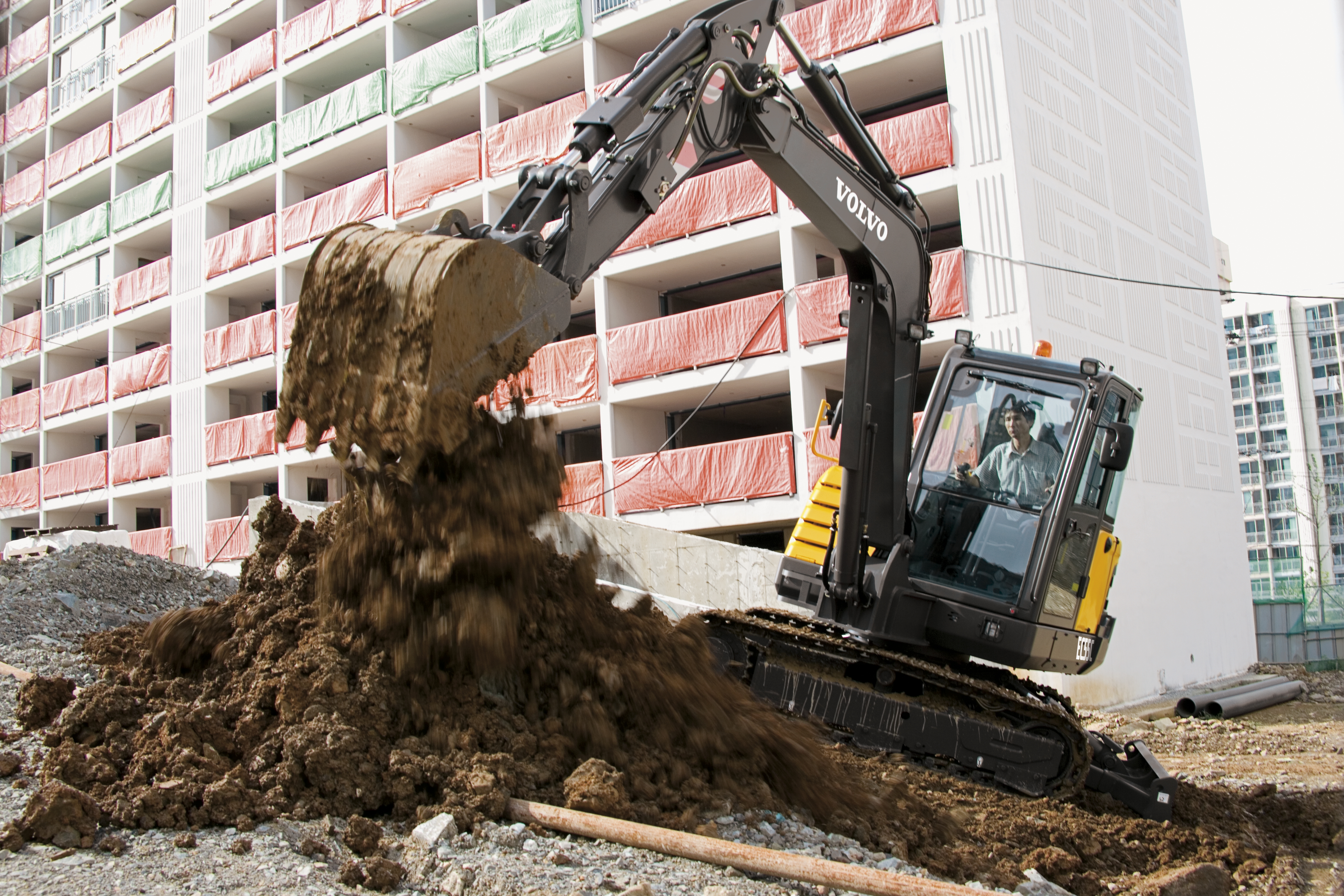

EC55C Volvo excavator specs & dimensions (2007 - 2019)

STANDARD EQUIPMENT Engine Electrical system Undercarriage Hydraulic system
low emission Volvo engine session EPA Interim Tier 4 / EU Stage IIIA environmental regulations. Two-stage air filter with blinding indicators. Electric heating device. Diesel filter and sediment chamber. Automatic return to idle. Oil sump sheet metal. Smooth sound double case muffler. Maintenance free 12 V - 100 AH battery. Starter motor 12 v, 3 kw. Halogen working lights (2 on tower and 1 on boom). Water resistant electrical connections (IP67) 16" (400 mm) Wide rubber tracks. Floating blade. Remote lubrication of the slew ring. ISO power assisted hydraulic control. Cylinder cushions with contamination seals. Total Power Control System. Boom Anti-Lowling unit. Multiple filtration system (30 μm). Double acting hydraulic circuit for accessories fitted to the boom. Accessory Circuit and boom offset are controlled by an electroporportional control on the right joystick. Progressive finger button control of the accessory circuit & offset. Control of forward and reverse movements coupled to the pedal levers through two levers.

OPTIONAL EQUIPMENT Handling and earthwork equipment Engine
6'3" (1900 mm) Tilt arm. Safety valve controlled by the power assistance circuit on the boom arm cylinder with overload indicator. Safety valve on dipper arm cylinder. Quick change accessory hitch. 2. Auxiliary circuit operated by electro proportional control on the left joystick. Heavy-duty dipper arm. Electric fuel tank fill pump 9 US gal/min (35 l).
Safety Official approval
Device to lock the earthworks controls and travel levers when the left console is raised to gain access to driver's cab. Engine starting safety device: The left console must be raised to operate the starter. FOPS 2 (Falling Objects Protection Structure). ROPS 2 (Roll-Over Protective Structure) TOPS (Tilt-Over Protective Structure) Safety valve on blade cylinder. Pressure accumulator on power assist circuit to put the equipment onto the ground when the engine is switched off. Window breaker hammers (cab). Seat belt with sight gauge system. Anti-theft guard integrated in instrument panel. Machine according to European directive 98/37/EC. Noise emissions in the surrounding area as per directive 2000/14/EC. Object handling device complying with EN 474-5 standard. ROPS conforms to ISO Standard 3471/SAE J 1040. FOPS 2 compliant with ISO 3449:2005. TOPS meets ISO 12117 and EN 13531 standards. Electromagnetic compatibility (Mc): Vitron Directive no.

Volvo Construction Equipment is different. The company's products are designed, built and supported in a different way. This difference comes from our 175-year engineering heritage. A heritage of brainstorming to the people who actually operate the machines. About how to make them safer, more comfortable or more productive. About the environment we all share. The result of this thinking lies in a growing range of machines and a global support network that helps you do more.
Not all products are available in all markets. Under our policy of continuous improvement, we reserve the right to change specifi cations and design without prior notice. The illustrations do not necessarily show the standard version of the machine.
Ref. Nr. 22 2 432 1924 Printed in PDF 09/09 Volvo, Asheville Copyright ≤ 2009 Volvo English

Undercarriage Lighting Environmental protection Service and maintenance
Steel tracks: 15" (380 mm) or 18" (500 mm). Angle blade. Wide blade: 6'6" (2020 mm). Additional working light front and rear. Rotating beacon. Biodegradable hydraulic oil: 46. Toolkit.
Safety Miscellaneous
Care Track. Retracting seat belt with sight gauge (2" or 3"). FOPS 2/FOG windscreen guard. Right and left rear mirrors. Special paint (RAL specifications). Pilot control change valve. Cold weather hydraulic oil: 32.

Instrumentation and monitoring Handling and earthwork equipment
Heater and air conditioner. 8 Air fan. Tinted windows. Anti-slip floor and grab handle for access to the driver's cab. Multiadjustable, full suspension, high back, console/seat mounting. Deluxe fabric covered superior comfort seat (cab). Removable front window. Removable lower side window. Sliding right on the window. Rear view mirror in cabin. Rubber attachment. Radio/cassette player with 2 speakers. Flexible antenna system. Interior lighting. Heavy duty travel pedals. Intermittent windshield wipers and windscreen disc at front window. Power socket. Monitoring and warning light for following functions: preheating, engine oil pressure, water temperature, battery charge, air filter clogging. Internal and external fuel gauges. Hour meter. Hydraulic flow adjustment of accessory circuits on instrument panel. 910" (3000 mm) long monobloc boom. 5 ́3‘ (1600 mm) dipper arm. Remote lubrication of offset and dipper arm cylinders.
