EC55 PRO Volvo excavator specs & dimensions (2005 - 2022)

Controls at your fingertips

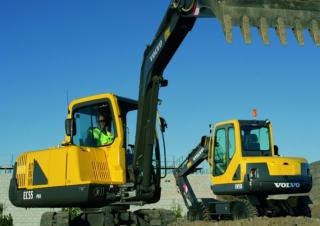

Volvo offers you a wide range of compact excavators. From proven conventional design machines for high performance to wheel and short pivot radius excavators for today's evolving construction sites, Volvo is the right machine at the right time. Both the EC55B Pro and EW55B models feature a large, spacious cab so that even tall operators can feel like home. The flat floor is also wide and uncluttered, giving you plenty of room for your feet. Customize your operating position with the fully adjustable seat and consoles. Joystick controls are conveniently mounted close to the armrests. Control elements are pilot-controlled for smooth, precise movements in the delicate trench. It gives ergonomically positioned forward and reverse travel pedals allowing you to reposition the machine while using the joysticks. In addition, the instrument panel can be angled to view the lights and gauges at a glance. Windshield features a gas stripping device which makes it easy to open and has tinted out five windows/excavators as well as contaminating air conditioners (feasibility control
Start your engines
For power, performance and low fuel consumption look to the EC55B Pro and EW55B models. The EC55B Pro model features a proven 16-valve of 49, 9 hp (37, 2 kw) volvo engine. The EW55B wheel model delivers proven power with a 16-value, 52 hp (38 kW) volvo engine. Both machines are built for digging offering impressive bucket diger forces. Dipper movement is extremely fast for more productive cycle times. The EC55B Pro's optional long dipper arm provides even more power. In addition, the Total Power Control hydraulic system ensures absolute freedom of movement for smooth, productive work cycles. The EC55B Pro has a large lift cylinder together with increased hydraulic system pressure for higher lifting capacity and increased productivity. The high quality hydraulic system is available up to heavy, long cycles tests that make it durable, reliable and ready for daily attack on your job.
A sturdy, rigid design
The center of the undercarriage is on the EC55B Pro X-shaped, while the EW55B is equipped with heavy duty axle housings. Both exceed expectations in extreme conditions and offer greater durability, better load distribution and more stable operation. The undercarriages each model are also very long for incredible stability, performance and comfort. The blade cylinder and connections are well protected against damage. For protection from damage, the EC55B Pro features vibration guard tracks as well as the EW55B wheels provide smooth travel even at higher speeds. The counterweight is rounded off and wraps around the sides to protect the engine cover which is reset by the counterweight to protect it even more. Both machines respectively offer improved conventional design that delivers higher digging power.The EC55B Pro has a larger, longer counterweight for increased balance, stability and lifting capacity. With a combination of increased hydraulic pressure and a heavier counterweight, both machines feature reinforced slope swings for fast cycle times when performing inclines.
Hydraulic system
ISO power-assisted hydraulic control. Cylinder cushions with contamination seals. Total Power Control System. Boom Anti-Lowing Device. Multiple filtration system (30 μm). Double acting hydraulic circuit for accessories fitted to the boom. EC55B Pro single working hydraulic circuit. EW55B Powerfully aided control of Hydraulic equalisation of the boom on left joystick. Auxiliary hydraulics for hammer. Control of forward and reverse movement by two levers coupled to pedals. EC55B Pro Heater and Air Conditioning. Dust guard system through pressurization of cab. EW55B Tinted windows. ROPS (Rollover Protective Structure). EC55B Pro TOPS (Tilt-Over Protective Design). Fabric-covered multiadjustable jump Non-slip float and grack handle for access to the driver's cab. Seat Belt. Adjustable control console. Locked front window. Removable lower side window. Rear mirrors in cabin. Door that can be opened up inside

Standard air conditioning. Reduced interior and exterior noise for a safer job site. Large, spacious cab.
Engine
low emission engine meeting Stage 2 environmental regulations. Two stage air filter with blinding indicators. Electric heating device. Diesel filter and sediment chamber. Oil sump sheet metal. Smooth sound dual case muffler. EC55B Pro
Instrumentation and monitoring
Monitoring and warning light for the following functions: preheating, engine oil pressure, water temperature, battery charge, air filter clogging. Internal and external fuel readings. Hour meter.
Official approval
EC55B Pro machine according to EC directive No. 89/392 and its amendments. Soundproofing in accordance with EC directive No. 86/662 and their modifications. Handling device complying with EN standard 474-5 (option). ROPS complies with ISO standard 3471/SAE J 1040. TOPS comply with ISO standards 12117.

Tough jobs demand machines that can dig into the job at hand and keep coming back for more. The EC55B Pro and EW55B deliver some of the highest breakout and tear-out forces in their class. Because they are easy to service, they will always be ready to dig into your work.
Increased hydraulic pressure in the auxiliary line increases attachment performance. This means more efficient attachment operation for faster cycle times and better operating economy. The exclusive Volvo quick-release coupler makes changing buckets or attachments easier without leaving the cab. The EC55B Pro features a standard double acting circuit to use with hydraulic equipment such as breakers and aprons. For ultimate versatility, the EW55B wheel model ensures at speeds up to 18.6 mph (29.9 kph), increased cycle times and ease of movement between jobsites. Open the wide rear cover for complete access to all critical check points. It is also fast and easy to review service levels and change oil.

The hydraulic quick change coupler makes it easy. Efficient main hydraulic pump helps optimize fuel consumption and improves productivity. Increased incline oscillation means more productivity.

Volvo Construction Equipment is different. It's designed, built and supported in a different way. That differ from our 170-year engineering heritage. A heritage of thinking first about the people who actually use the machines. About how to help them be safer, more comfortable and productive. About the environment we all share. The result of this thinking is a growing range of machines and a global support network aimed at giving you more opportunities.

Undercarriage
Hydrostatic transmission with 4 drive wheels. EW55B Tyre size 12 x 16.5 - 12PR Single. EW55B Rim size 9.75 x 16.5. EW55B 16" (4, mm wide rubber tracks. EC55B Pro Dozer blade. Stabilization and backfill blade. EW55B Remote lubrication of the osci
Handling and earthwork equipment
9 inch 10 inch (3030 mm) for EC55B Pro 9'5" (2900 mm) for EW55B long monobloc boom. 5‘0inch (1540 mm). Remote lubrication of the offset and dipper arm cylinders.
Safety
Device to lock controls when lifting the left console or safety levers is shut down to gain access to the driver's cab. Safety valve on blade cylinder. EC55B Pro pressure accumulator on power assist circuit to be able to put the equipment onto the ground when turning off the engine. EC55B Pro window breaker hammer (cab). EC55B Pro All working functions are locked when the machine is in travel mode. EW55B Full hydraulic force brake with multi-wet disc brake, single circle, one accumulator. All windows hardened safety glass. EW55B Audible reverse alarm. EW55B Right and left rear view mirror.
Handling and earthwork equipment
6' 2" (1900 mm) dipper arm. Safety valve controlled by the power assist circuit on boom arm cylinder with overload indicator. EC55B Pro safety valve on dipper arm cylinder. EC55B Pro Quick-Release accessory hitch. Hydraulic quick coupler. Heavy duty distributor
Miscellaneous
Special paint (RAL specifications). Right and left rear view mirrors. EC55B Pro Pilot control change valve. Travel alarm. EW55B

Electrical system
Maintenance-free 12 V - 100 AH battery. Starter motor 12 v, 0 kw. Halogen working lights (2 on tower and 1 on boom). Indicators for road travel. EW55B

Bio degradable hydraulic oil. EC55B Pro
Safety EC55B Pro anti-theft device coded by Digicode keypad (2 programmable codes). FOPS2/FOG windscreen guard.
