EC15B XT Volvo excavator specs & dimensions (2009 - 2010)

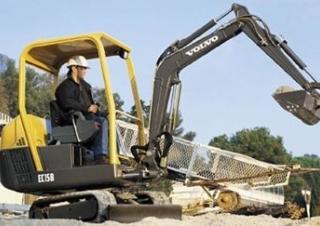

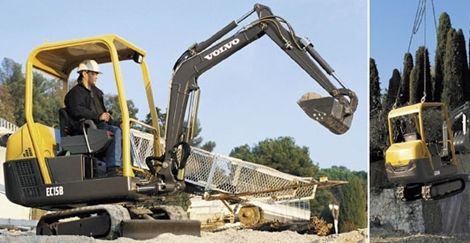

Volvo EC15B XT is a mini excavator manufactured from 2009 to 2010. It has a weight of 1.6 tons and a track width of 230 mm. The tr…

Volvo EC15B XT is a mini excavator manufactured from 2009 to 2010. It has a weight of 1.6 tons and a track width of 230 mm. The transport dimensions are 3.65 meters in length, 0.98 meters in width, and 2.27 meters in height. The bucket width is 0.4 meters with a minimum bucket capacity of 0.03 cubic meters. Special equipment includes a blade and rubber tracks.

Mini Excavators Volvo EC15B XT

Visit Volvo live at

Technical specs - EC15B XT Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.6 t
Transport length
3.65 m
Transport width
0.98 m
Transport height
2.27 m
Bucket capacity min.
0.03 m³
Bucket width
0.4 m
Track width
230 mm
Driver protection
Kb
Max. Reach horizontal
3.94 m
Dredging depth
2.45 m
Tear-out force
15.1 kN
Model series
EC
Engine manuf.
Volvo
Engine type
D 1 D
Engine power
12 kW
Displacement
1 l
Revolutions at max torque
1800 rpm

More technical details, like: bucket capacity, bucket capacity max., standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo EC15B XT FAQ

When was the Volvo EC15B XT manufactured?

The Volvo EC15B XT was manufactured from 2009 to 2010.

How much does the Volvo EC15B XT weigh?

The Volvo EC15B XT weighs 1.6 tons.

What are the transport dimensions of the Volvo EC15B XT mini excavator?

The Volvo EC15B XT has a transport length of 3.65 meters, a transport width of 0.98 meters, and a transport height of 2.27 meters.

What is the track width of the Volvo EC15B XT mini excavator?

The Volvo EC15B XT mini excavator has a track width of 230 mm.

What is the excavation performance of the Volvo EC15B XT mini excavator?

The Volvo EC15B XT mini excavator has a dredging depth of 2.45 meters and a maximum horizontal reach of 3.94 meters.

What is the tear-out force of the Volvo EC15B XT mini excavator?

The Volvo EC15B XT mini excavator has a tear-out force of 15.1 kN.

What are the bucket specifications of the Volvo EC15B XT mini excavator?

The Volvo EC15B XT has a minimum bucket capacity of 0.03 cubic meters and a bucket width of 0.4 meters.

What operator safety and support features does the Volvo EC15B XT have?

The Volvo EC15B XT has a driver protection cabin.

How much is a Volvo EC15B XT Mini excavator (2009u20132010) worth?

The residual value of the Volvo EC15B XT depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Volvo EC15B XT overview

Dimensions and weight

Transport massRubber TracksRubber TracksSteel Tracks
Cab version1538 kg1588 kg
Canopy version1414 kg1464 kg
Operating massRubber TracksRubber TracksSteel Tracks
Cab version1603 kg1663 kg1713 kg
Canopy version1479 kg1539 kg1589 kg
Operating massRubber TracksSteel Tracks
Cab version1761 kg1811 kg
Canopy version1637 kg1687 kg
Transport massRubber TracksSteel Tracks
Cab version1636 kg1686 kg
Canopy version1512 kg1562 kg
Controlpower-assisted hydraulic controls
Gear pump for all the equipment travel and power-assistance circuits:"
Maximum delivery32 litres/min.
Maximum operating pressure17 MPa (170 bars)
Double-acting hydraulic circuit for accessories:
Maximum delivery32 litres/min.
Maximum operating pressure17 MPa (170 bars)
Cushions:
On the boom ramat the rod end
Bucket performance
Breakout force1510 daN
Tearout force960 daN

Tables

Ground pressureEC15B XREC15B XT
Rubber TracksRubber TracksSteel Tracks
Cab version0.30 kg/cm20.32 kg/cm20.31 kg/cm2
Canopy version0.28 kg/cm20.30 kg/cm20.31 kg/cm2
Ground pressureEC15B XTV Rubber TracksSteel Tracks
Cab version0.34 kg/cm20.35 kg/cm2
Canopy version0.32 kg/cm20.33 kg/cm2
Displacement total"952 cc
Gross power rated"12.0 KW (16.1 hp) at 2200 r/min
Power installed (ISO 9249)"11.7 KW (15.7 hp) at 2200 r/min
Maximum torque (ISO 9249)53 Nm at 1800 rpm
Bore x stroke76 mm x 70 mm
Gas emissionPM: 0.4 g/kwh NOx + HC : 7.5 g/kwh CO: 6.6 g/kwh
EC15B XR/XT Track width230 mm
Track tensionby grease piston
Blade height240 mm
Width of the blade980 mm
Electrical system
Rated voltage12 V
Battery capacity12 V - 45 Ah
Alternator rating12 V - 40 A
Starter motor output12 V - 1.6 kW
Track width230 mm
Track tensionby grease piston
Blade height240 mm
Width of the blade980 mm and 1350 mm
Buckets EC15B XR/XT/XTVWidthWeightCapacity
Excavator bucket250 mm25 kg19 |
300 mm28 kg24 |
350 mm30 kg28 1
400 mm32 kg33 1
450 mm35 kg38 1
500 mm37 kg43 1
40 kg53 1
850 mm43 kg52 |
Ditch bucket1000 mm47 kg60 1
GH-JKLMNO
EC15B XR2101501045141586098013453650
EC15B XT2101501085141586098012453650
EC15B XTV22117510851470860980133012253650
PRSTUVWX
EC15B XR2402304501520123022109701120
EC15B XT2402304501520123022109701120
EC15B XTV2402304501520123022109701120
DipperABC*CDEF
900 mm3410248022002050150035703710
1150 mm3550262024502300174038103940
