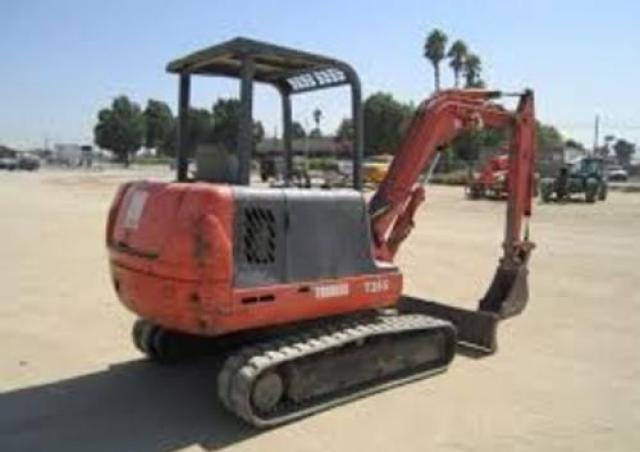

T-35S Thomas excavator specs & dimensions (2001 - 2007)

Thomas T-35S is a mini excavator manufactured from 2001 to 2007, with a weight of 3.2 tons. It features a track width of 300 mm, a…

Thomas T-35S is a mini excavator manufactured from 2001 to 2007, with a weight of 3.2 tons. It features a track width of 300 mm, a transport length of 5 meters, a transport width of 1.5 meters, and a transport height of 2.3 meters. The machine has a tear-out force of 66 kN, a dredging depth of 3.4 meters, and a maximum horizontal reach of 5.4 meters. The bucket width is 0.59 meters with a capacity of 0.1 cubic meters. It is equipped with a blade.

Mini Excavators Thomas T-35S

Technical specs - T-35S Thomas

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.2 t
Transport length
5 m
Transport width
1.5 m
Transport height
2.3 m
Bucket capacity
0.1 m³
Bucket width
0.59 m
Track width
300 mm
Max. Reach horizontal
5.4 m
Dredging depth
3.4 m
Tear-out force
66 kN
Engine manuf.
Isuzu
Engine type
3LDIPA.zO
Engine power
21 kW
Displacement
1.4 l
Revolutions at max torque
2400 rpm
No. of cylinders
3

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, driver protection, model series, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Thomas T-35S FAQ

When was the Thomas T-35S manufactured?

The Thomas T-35S was manufactured from 2001 to 2007.

How much does the Thomas T-35S mini excavator weigh?

The Thomas T-35S mini excavator weighs 3.2 tons.

What are the transport dimensions of the Thomas T-35S mini excavator?

The Thomas T-35S has a transport length of 5 meters, a transport width of 1.5 meters, and a transport height of 2.3 meters.

What is the track width of the Thomas T-35S mini excavator's undercarriage?

The Thomas T-35S mini excavator has a track width of 300 mm.

What is the excavation performance of the Thomas T-35S mini excavator?

The Thomas T-35S mini excavator has a dredging depth of 3.4 meters and a maximum horizontal reach of 5.4 meters.

What is the tear-out force of the Thomas T-35S mini excavator?

The Thomas T-35S mini excavator has a tear-out force of 66 kN.

What are the bucket specifications of the Thomas T-35S mini excavator?

The Thomas T-35S mini excavator has a bucket capacity of 0.1 cubic meters and a bucket width of 0.59 meters.
