HR 22 Terex-Schaeff excavator specs & dimensions (1997 - 2003)

Terex-Schaeff HR 22 is a crawler excavator manufactured from 1997 to 2003, with a weight of 5.8 tons. It features a track width of…

Terex-Schaeff HR 22 is a crawler excavator manufactured from 1997 to 2003, with a weight of 5.8 tons. It features a track width of 400 mm and a transport width of 2.1 meters. The bucket capacity ranges from a minimum of 0.065 cubic meters to a maximum of 0.27 cubic meters.

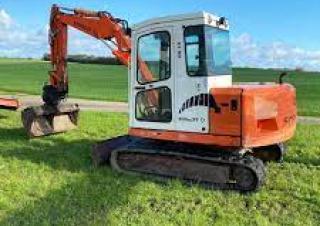

Mini Excavators Terex-Schaeff HR 22

Technical specs - HR 22 Terex-Schaeff

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.8 t
Transport width
2.1 m
Bucket capacity min.
0.07 m³
Bucket capacity max.
0.27 m³
Track width
400 mm
Model series
HR
Engine manuf.
Perkins
Engine type
704.30
Engine power
44 kW

More technical details, like: transport length, transport height, bucket capacity, bucket width, standard tyres, driver protection, max. reach horizontal, dredging depth, tear-out force, dimension lxwxh, displacement, revolutions at max torque...

More technical details, like: transport length, transport height, bucket capacity, bucket width, standard tyres, driver protection, max. reach horizontal, dredging depth, tear-out force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Terex-Schaeff HR 22 FAQ

When was the Terex-Schaeff HR 22 manufactured?

The Terex-Schaeff HR 22 was manufactured from 1997 to 2003.

How much does the Terex-Schaeff HR 22 weigh?

The Terex-Schaeff HR 22 weighs 5.8 tons.

What is the transport width of the Terex-Schaeff HR 22 mini excavator?

The transport width of the Terex-Schaeff HR 22 mini excavator is 2.1 meters.

What is the track width of the Terex-Schaeff HR 22 mini excavator?

The Terex-Schaeff HR 22 mini excavator has a track width of 400 mm.

What are the bucket capacity specifications of the Terex-Schaeff HR 22 mini excavator?

The Terex-Schaeff HR 22 has a bucket capacity ranging from 0.07 to 0.27 cubic meters.
