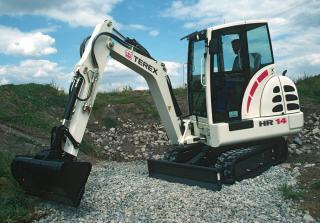

Terex-Schaeff HR 14 excavator specs (1998 - 2006)

8,33/10 Rate this machine now!

Terex-Schaeff is the manufacturer of the mini excavator model HR 14. Find and download detailed specs and data sheets for this mac... Read more

Terex-Schaeff is the manufacturer of the mini excavator model HR 14. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful Mitsubishi engine, this HR 14 2.85t machine can provide 20.5kW or 27 horse power for the mini excavator. This Terex-Schaeff mini excavator belongs to the medium sized machine segment in the mini excavators category. The HR 14’s size is 1.36m x 3.1m x 2.48m. The bucket capacity of HR 14 is 0.11m³, which is above average for this type of machine.

The Terex-Schaeff HR 14 has been equipped and sold with Rubber track and Blade. It does not include Quick hitch mech., Aircondition and Quick hitch hydr.. There are more detailed specifications and machine descriptions available in the original Terex-Schaeff HR 14 specs data sheet. Specification sheet is available for a free download in German - providing the machine descriptions and more detailed specs about this particular model.

The production stopped in 2006, where this HR 14 was available at a new list price between €40000 and €50000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Terex-Schaeff currently produces other mini excavators, which range from up to - the most visited on LECTURA Specs are. Want more detailed specifications? Download the latest Terex-Schaeff HR 14 specs data sheet on LECTURA Specs today!

Technical specs - HR 14 Terex-Schaeff


Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Weight 2.85 t
  • Transport length 3.1 m
  • Transport width 1.36 m
  • Transport height 2.48 m
  • Bucket capacity 0.11 m³
  • Bucket width 1 m
  • Track width 300 mm
  • Driver protection Kb
  • Max. Reach horizontal 4,19 m
  • Dredging depth 2,96 m
  • Tear-out force 13,6 kN
  • Model series HR
  • Engine manuf. Mitsubishi
  • Engine type S4L61 KL
  • Engine power 20.5 kW
  • Displacement 1.2 l
  • Revolutions at max torque 2200 rpm

More technical details, like: average fuel consumption, fuel consumption range (min - max), bucket capacity min., bucket capacity max., standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

  • Track adjustment
  • Rubber track
  • Blade
  • Aircondition
  • Quick hitch hydr.
  • Quick hitch mech.
