HR 12 Terex-Schaeff excavator specs & dimensions (1997 - 2004)

Model rating
8,20 / 10

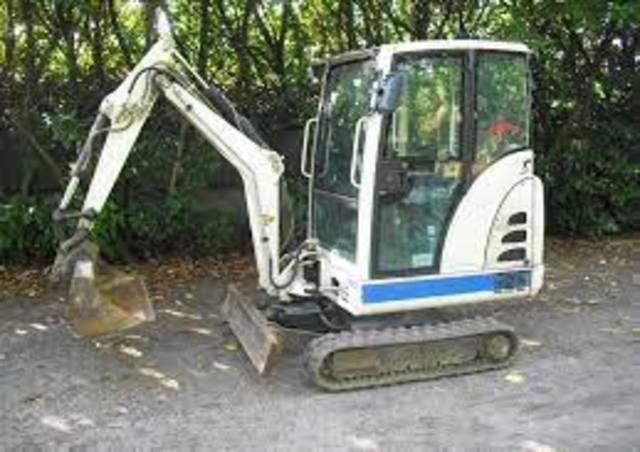

Terex-Schaeff HR 12 is a mini excavator manufactured from 1997 to 2004, with a weight of 1.63 tons. It features a track width of 2…

Terex-Schaeff HR 12 is a mini excavator manufactured from 1997 to 2004, with a weight of 1.63 tons. It features a track width of 230 mm, a transport length of 2.5 meters, a transport width of 1 meter, and a transport height of 2.39 meters. The bucket width is 1 meter, and the bucket capacity is 0.069 cubic meters. Special equipment includes a blade, rubber track, and track adjustment.

Mini Excavators Terex-Schaeff HR 12

Technical specs - HR 12 Terex-Schaeff

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.63 t
Transport length
2.5 m
Transport width
1 m
Transport height
2.39 m
Bucket capacity
0.069 m³
Bucket width
1 m
Track width
230 mm
Driver protection
Kb
Max. Reach horizontal
3.46 m
Dredging depth
2.4 m
Tear-out force
9.3 kN
Model series
HR
Engine manuf.
Mitsubishi
Engine type
L 3 E 61 KL
Engine power
13.3 kW
Displacement
0.952 l
Revolutions at max torque
2400 rpm

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Terex-Schaeff HR 12 FAQ

When was the Terex-Schaeff HR 12 manufactured?

The Terex-Schaeff HR 12 was manufactured from 1997 to 2004.

How much does the Terex-Schaeff HR 12 weigh?

The Terex-Schaeff HR 12 weighs 1.63 tons.

What are the transport dimensions of the Terex-Schaeff HR 12 mini excavator?

The Terex-Schaeff HR 12 has a transport length of 2.5 meters, a transport width of 1 meter, and a transport height of 2.39 meters.

What is the track width of the Terex-Schaeff HR 12 mini excavator?

The Terex-Schaeff HR 12 mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Terex-Schaeff HR 12 mini excavator?

The Terex-Schaeff HR 12 mini excavator has a dredging depth of 2.4 meters and a maximum horizontal reach of 3.46 meters.

What is the tear-out force of the Terex-Schaeff HR 12 mini excavator?

The Terex-Schaeff HR 12 mini excavator has a tear-out force of 9.3 kN.

What are the bucket specifications of the Terex-Schaeff HR 12 mini excavator?

The Terex-Schaeff HR 12 mini excavator has a bucket capacity of 0.069 cubic meters and a bucket width of 1 meter.

What operator safety features does the Terex-Schaeff HR 12 have?

The Terex-Schaeff HR 12 has a cabin for driver protection.

How much is a Terex-Schaeff HR 12 Mini excavator (1997u20132004) worth?

The residual value of the Terex-Schaeff HR 12 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Reviews

Model rating
8,20 / 10
Quotation mark

Terex-Schaeff HR 12 user from

Nice roomy cab. Foot pedals and sticks. Overall a good machine.

Quotation mark

Terex-Schaeff HR 12 user from Denmark

I own one and it has worked ok for 20 years.

Quotation mark

Terex-Schaeff HR 12 user from Poland

Little bit slow.
