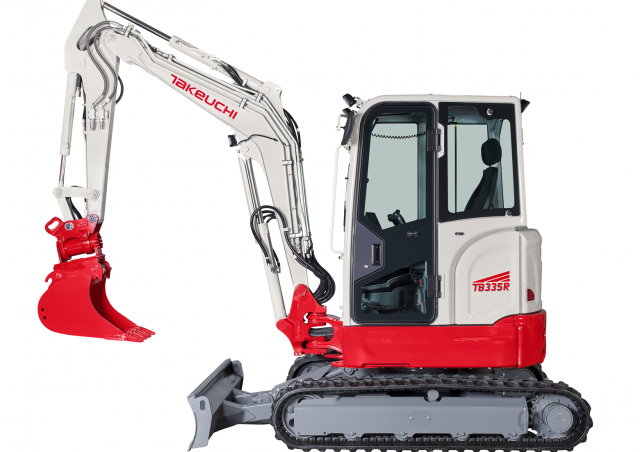

TB 335 R Takeuchi excavator specs & dimensions (2022 - 2026)

Takeuchi TB 335 R is a mini excavator manufactured since 2022. It has a weight of 3.76 tons, a transport length of 4.89 meters, a …

Takeuchi TB 335 R is a mini excavator manufactured since 2022. It has a weight of 3.76 tons, a transport length of 4.89 meters, a transport width of 1.74 meters, and a transport height of 2.52 meters. The machine features a tear-out force of 27.1 kN, a dredging depth of 2.505 meters, and a maximum horizontal reach of 5.305 meters. The bucket capacity is 0.105 cubic meters. Special equipment includes air conditioning, a blade, and rubber tracks.

Mini Excavators Takeuchi TB 335 R

Technical specs - TB 335 R Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.76 t
Transport length
4.89 m
Transport width
1.74 m
Transport height
2.52 m
Bucket capacity
0.105 m³
Driver protection
FD/Kb
Max. Reach horizontal
5.305 m
Dredging depth
2.505 m
Tear-out force
27.1 kN
Model series
TB
Engine manuf.
Kubota
Engine type
V1505
Engine power
18.2 kW
Displacement
1.498 l
Revolutions at max torque
1700 rpm
Max. torque
95.8 Nm
Emission level
EU V / EPA Tier 4

More technical details, like: bucket capacity min., bucket capacity max., bucket width, track width, standard tyres, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Takeuchi TB 335 R FAQ

When was the Takeuchi TB 335 R manufactured?

The Takeuchi TB 335 R was first produced in 2022.

How much does the Takeuchi TB 335 R weigh?

The Takeuchi TB 335 R weighs 3.76 tons.

What are the transport dimensions of the Takeuchi TB 335 R mini excavator?

The Takeuchi TB 335 R has a transport length of 4.89 meters, a transport width of 1.74 meters, and a transport height of 2.52 meters.

What are the excavation performance specifications of the Takeuchi TB 335 R mini excavator?

The Takeuchi TB 335 R has a dredging depth of 2.505 meters and a maximum horizontal reach of 5.305 meters.

What is the tear-out force of the Takeuchi TB 335 R mini excavator?

The Takeuchi TB 335 R has a tear-out force of 27.1 kN.

What is the bucket capacity of the Takeuchi TB 335 R mini excavator?

The Takeuchi TB 335 R mini excavator has a bucket capacity of 0.105 cubic meters.

What operator safety and support features does the Takeuchi TB 335 R have?

The Takeuchi TB 335 R provides operator safety with driver protection in the form of a canopy and a cabin.

How much is a Takeuchi TB 335 R Mini excavator (2022u20132025) worth?

The residual value of the Takeuchi TB 335 R depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
