TB 138 FR Takeuchi excavator specs & dimensions (2024 - 2026)

Weight: 3.935t – Transport length: 4.77m – Transport width: 1.74m – Transport height: 2.555m – Bucket capacity: 0.105m³ – Track wi…

Weight: 3.935t – Transport length: 4.77m – Transport width: 1.74m – Transport height: 2.555m – Bucket capacity: 0.105m³ – Track width: 350mm

Check out detailed specifications, information and technical data for Takeuchi TB 138 FR excavator manufactured between 2024 - 2026. Get more in-depth insight with Takeuchi TB 138 FR digger specifications. See information, like: Weight: 3.935t – Transport length: 4.77m – Transport width: 1.74m – Transport height: 2.555m – Bucket capacity: 0.105m³ – Track width: 350mm and more.

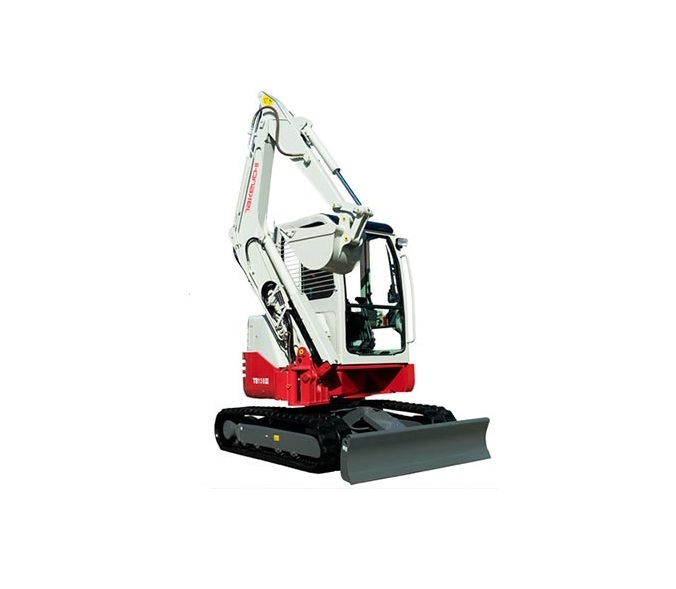

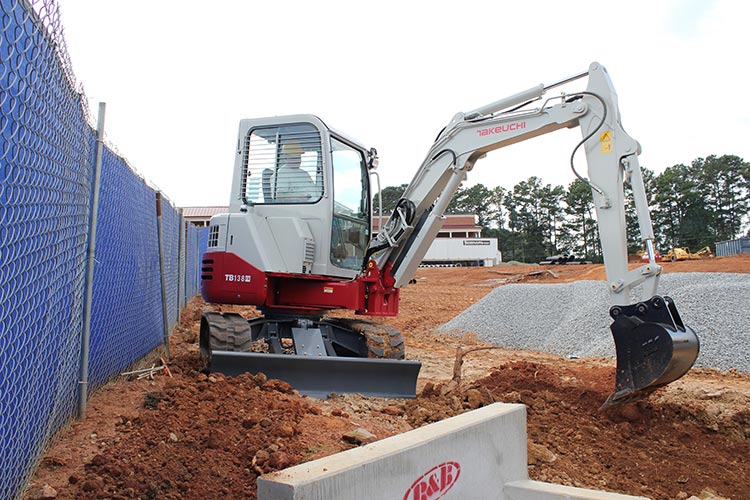

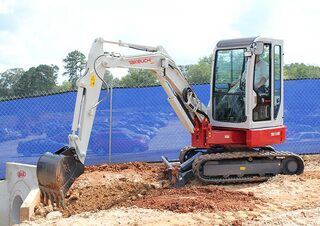

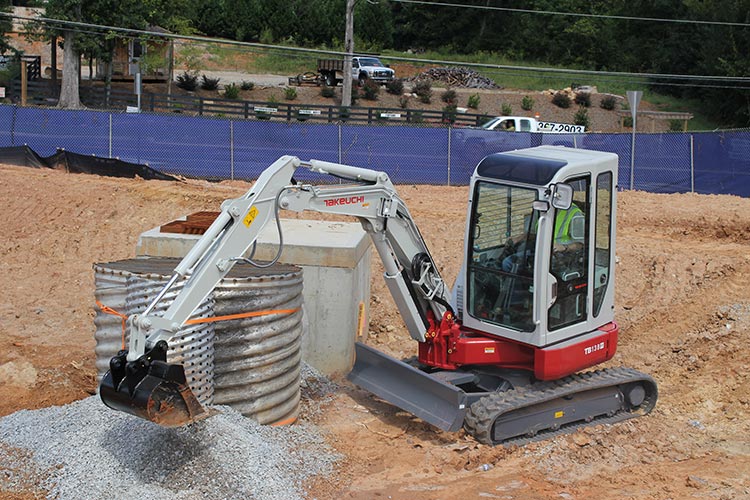

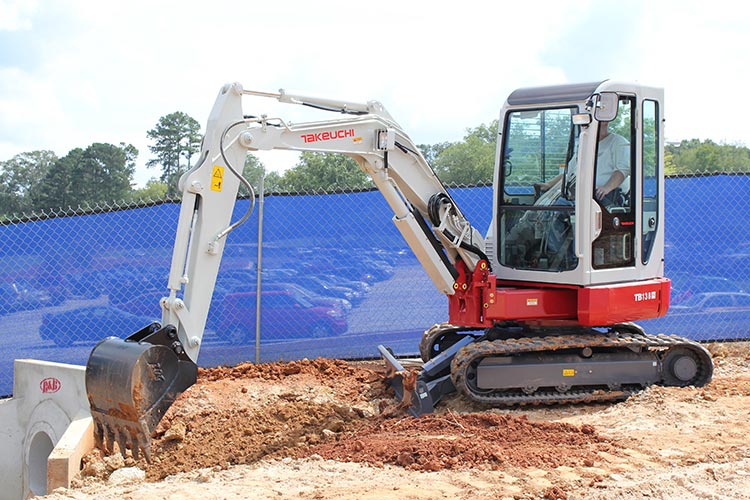

Mini Excavators Takeuchi TB 138 FR
Mini Excavators Takeuchi TB 138 FR
Mini Excavators Takeuchi TB 138 FR
Mini Excavators Takeuchi TB 138 FR
Mini Excavators Takeuchi TB 138 FR
Mini Excavators Takeuchi TB 138 FR
Mini Excavators Takeuchi TB 138 FR
Mini Excavators Takeuchi TB 138 FR

Technical specs - TB 138 FR Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.935 t
Transport length
4.77 m
Transport width
1.74 m
Transport height
2.555 m
Bucket capacity
0.105 m³
Track width
350 mm
Driver protection
Kb
Max. Reach horizontal
5.425 m
Dredging depth
3.42 m
Tear-out force
26.5 kN
Model series
TB
Engine manuf.
Yanmar
Engine type
3TNV88
Engine power
22 kW
Displacement
1.642 l
Revolutions at max torque
2400 rpm
Max. torque
107.1 Nm
Emission level
EU III A/ EPA I Tier 4

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Takeuchi TB 138 FR FAQ

When was the Takeuchi TB 138 FR manufactured?

The Takeuchi TB 138 FR was first produced in 2024.

How much does the Takeuchi TB 138 FR weigh?

The Takeuchi TB 138 FR weighs 3.935 tons.

What are the transport dimensions of the Takeuchi TB 138 FR mini excavator?

The Takeuchi TB 138 FR has a transport length of 4.77 meters, a transport width of 1.74 meters, and a transport height of 2.555 meters.

What is the track width of the Takeuchi TB 138 FR's undercarriage?

The Takeuchi TB 138 FR has a track width of 350 mm.

What are the excavation performance specifications of the Takeuchi TB 138 FR mini excavator?

The Takeuchi TB 138 FR has a dredging depth of 3.42 meters and a maximum horizontal reach of 5.425 meters.

What is the tear-out force of the Takeuchi TB 138 FR?

The Takeuchi TB 138 FR has a tear-out force of 26.5 kN.

What is the bucket capacity of the Takeuchi TB 138 FR mini excavator?

The bucket capacity of the Takeuchi TB 138 FR mini excavator is 0.105 cubic meters.

What operator safety features does the Takeuchi TB 138 FR have?

The Takeuchi TB 138 FR has a cabin for driver protection.
