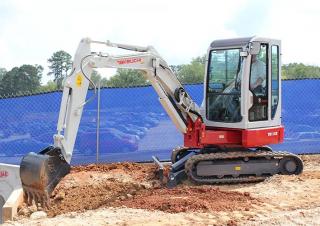

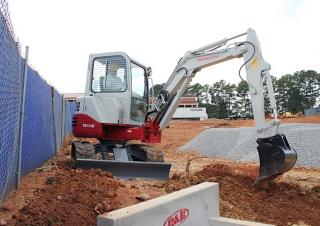

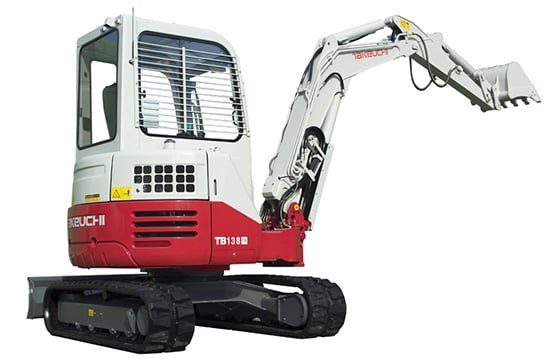

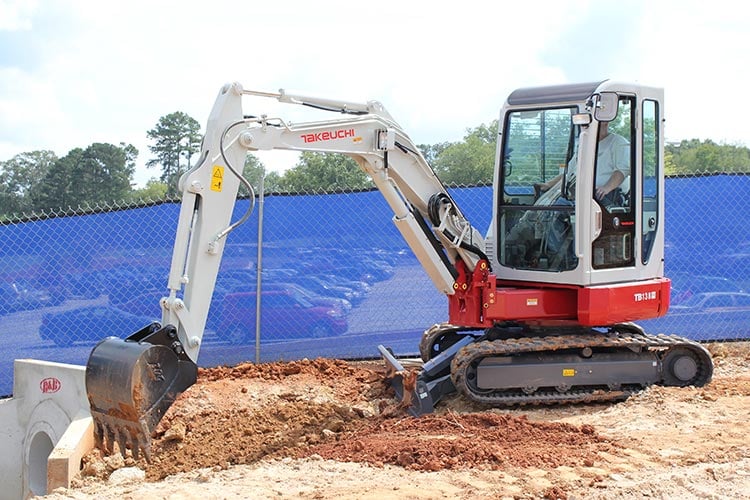

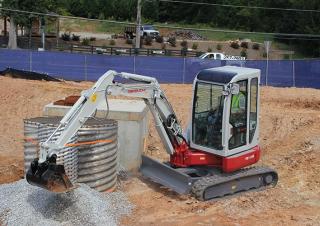

TB 138 FR Takeuchi excavator specs & dimensions (2007 - 2024)
-
Model rating
- 9,50 / 10
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Technical specs - TB 138 FR Takeuchi
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 3.8 t
- Transport width
- 1.74 m
- Bucket capacity
- 0.06 m³
- Track width
- 350 mm
- Driver protection
- Kb
- Model series
- TB
- Engine manuf.
- Yanmar
- Engine type
- 4TNE84
- Engine power
- 20 kW
- Displacement
- 1.64 l
- Revolutions at max torque
- 1200 rpm
- Max. torque
- 106 Nm
- Cylinder bore x stroke
- 88x90 mm
- Emission level
- IIIB
More technical details, like: transport length, transport height, bucket capacity min., bucket capacity max., bucket width, standard tyres, max. reach horizontal, dredging depth, tear-out force, dimension lxwxh, no. of cylinders are available in the full technical specs.
Basic model with standard bucket
Special equipment
- Track adjustment
-
No
- Rubber track
-
Yes
- Blade
-
Yes
- Aircondition
-
No
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
No
