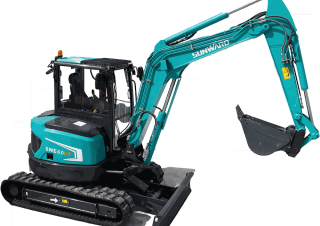

SWE60UF Sunward excavator specs & dimensions (2020 - 2026)

Sunward SWE60UF is a crawler excavator manufactured since 2020, with a weight of 5.7 tons. It features a track width of 700 mm, a …

Sunward SWE60UF is a crawler excavator manufactured since 2020, with a weight of 5.7 tons. It features a track width of 700 mm, a transport length of 5.64 meters, a transport width of 1.96 meters, and a transport height of 2.56 meters. The machine has a tear-out force of 47 kN, a dredging depth of 3.7 meters, and a maximum horizontal reach of 6.2 meters. It is equipped with a blade and rubber tracks.

Mini Excavators Sunward SWE60UF

Technical specs - SWE60UF Sunward

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.7 t
Transport length
5.64 m
Transport width
1.96 m
Transport height
2.56 m
Track width
700 mm
Max. Reach horizontal
6.2 m
Dredging depth
3.7 m
Tear-out force
47 kN
Model series
SWE
Engine manuf.
Kubota
Engine type
V2607-D1-TE3B
Engine power
36.5 kW
Displacement
2.62 l

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, driver protection, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sunward SWE60UF FAQ

When was the Sunward SWE60UF manufactured?

The Sunward SWE60UF was first produced in 2020.

How much does the Sunward SWE60UF mini excavator weigh?

The Sunward SWE60UF mini excavator weighs 5.7 tons.

What are the transport dimensions of the Sunward SWE60UF mini excavator?

The Sunward SWE60UF has a transport length of 5.64 meters, a transport width of 1.96 meters, and a transport height of 2.56 meters.

What is the track width of the Sunward SWE60UF mini excavator?

The Sunward SWE60UF mini excavator has a track width of 700 mm.

What are the excavation performance specifications of the Sunward SWE60UF mini excavator?

The Sunward SWE60UF mini excavator has a dredging depth of 3.7 meters and a maximum horizontal reach of 6.2 meters.

What is the tear-out force of the Sunward SWE60UF mini excavator?

The Sunward SWE60UF mini excavator has a tear-out force of 47 kN.
