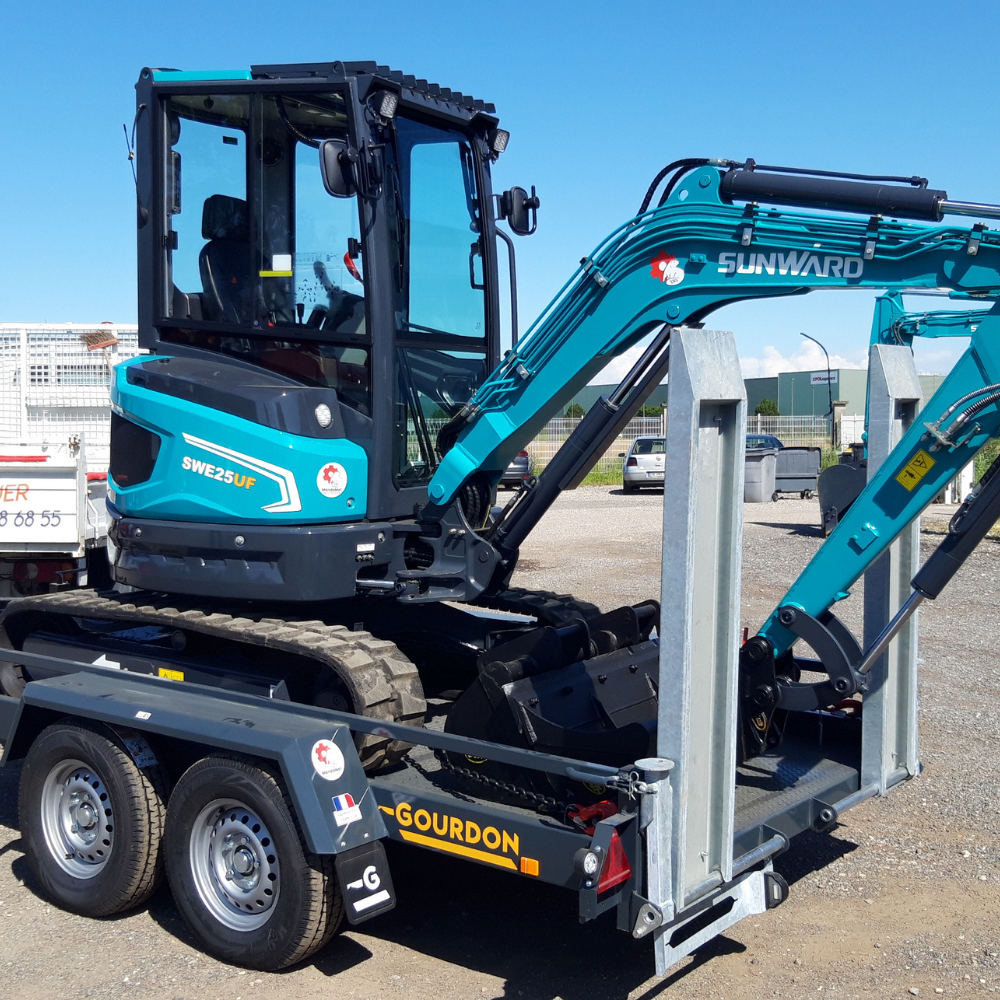

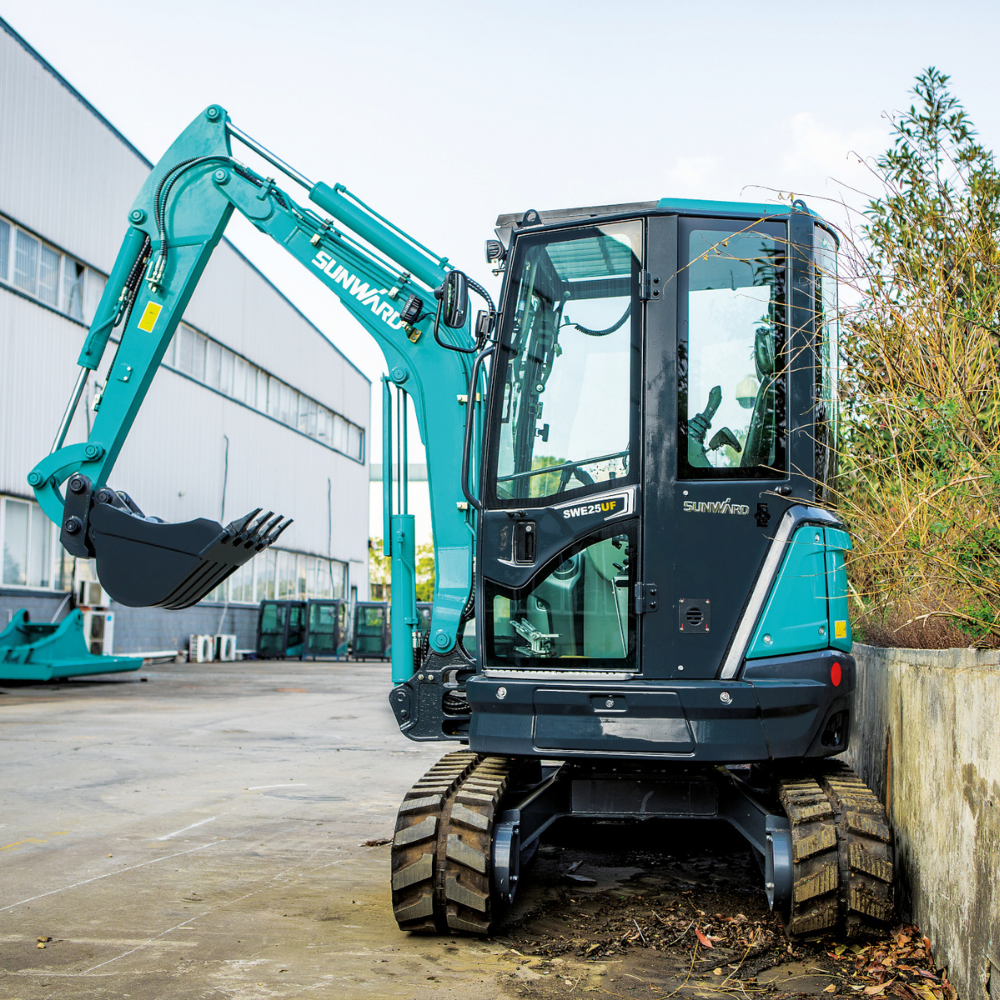

SWE25UF Sunward excavator specs & dimensions (2026 - 2026)

Name: Sunward SWE25UF Mini Excavators
Brand: Sunward

Weight: 2.75t – Transport length: 4.15m – Transport width: 1.5m – Transport height: 2.51m – Bucket capacity: 0.08m³ – Track width:…

Weight: 2.75t – Transport length: 4.15m – Transport width: 1.5m – Transport height: 2.51m – Bucket capacity: 0.08m³ – Track width: 300mm

Check out detailed specifications, information and technical data for Sunward SWE25UF excavator manufactured between 2026 - 2026. Get more in-depth insight with Sunward SWE25UF digger specifications. See information, like: Weight: 2.75t – Transport length: 4.15m – Transport width: 1.5m – Transport height: 2.51m – Bucket capacity: 0.08m³ – Track width: 300mm and more.

SWE25UF

Years of manufacture: 2026—2026

Data sheet
Buy & Rent
Spare parts
Transport
News

Technical specs - SWE25UF Sunward

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.75 t

Transport length: 4.15 m

Transport width: 1.5 m

Transport height: 2.51 m

Bucket capacity: 0.08 m³

Track width: 300 mm

Driver protection: Kb

Max. Reach horizontal: 4.78 m

Dredging depth: 2.8 m

Tear-out force: 24 kN

Model series: SWE

Engine manuf.: Kubota

Engine type: D1105

Engine power: 15.4 kW

Displacement: 1.123 l

Revolutions at max torque: 2400 rpm

Max. torque: 71,4/1600 Nm

No. of cylinders: 3

Emission level: Euro V / US IV

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)
