Sunward SWE20F
- Weight:
- 1.94 t
- Transport length:
- 3.905 m
- Transport width:
- 0.99 m
- Transport height:
- 2.235 m

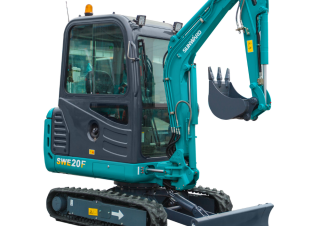

SWE20F Sunward excavator specs & dimensions (2026 - 2026)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
Technical specs - SWE20F Sunward
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 1.94 t
- Transport length
- 3.905 m
- Transport width
- 0.99 m
- Transport height
- 2.235 m
- Bucket capacity
- 0.04 m³
- Track width
- 230 mm
- Driver protection
- Kb
- Max. Reach horizontal
- 4.04 m
- Dredging depth
- 2.38 m
- Tear-out force
- 22.7 kN
- Model series
- SWE
- Engine manuf.
- Yanmar
- Engine type
- 3TNV80-SSU
- Engine power
- 13.4 kW
- Displacement
- 1.267 l
- Revolutions at max torque
- 2200 rpm
- Max. torque
- 67,4/1600 Nm
- No. of cylinders
- 3
- Emission level
- V
More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
Basic model with standard bucket
Special equipment
- Track adjustment
-
No
- Rubber track
-
Yes
- Blade
-
Yes
- Aircondition
-
No
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
No
