SWE20F Sunward excavator specs & dimensions (2020 - 2026)

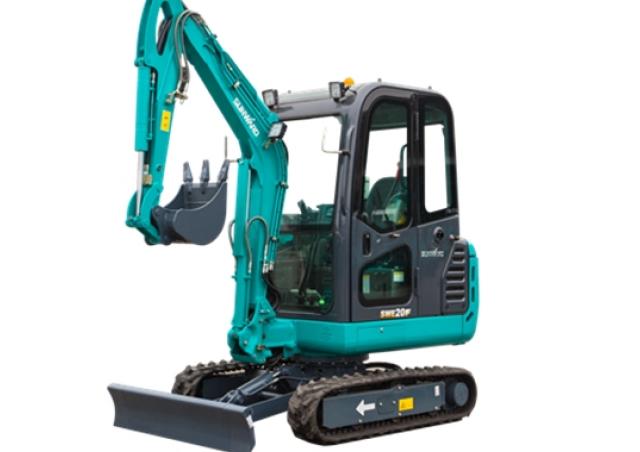

Sunward SWE20F is a mini excavator manufactured since 2020. It has a weight of 1.94 tons and a track width of 230 mm. The transpor…

Sunward SWE20F is a mini excavator manufactured since 2020. It has a weight of 1.94 tons and a track width of 230 mm. The transport dimensions are 3.82 meters in length, 0.99 meters in width, and 2.37 meters in height. The machine features a tear-out force of 22.7 kN, a dredging depth of 2.38 meters, and a maximum horizontal reach of 4.04 meters. The bucket width is 0.38 meters with a capacity of 0.04 cubic meters. Special equipment includes a blade and rubber tracks.

Mini Excavators Sunward SWE20F

Technical specs - SWE20F Sunward

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.94 t
Transport length
3.82 m
Transport width
0.99 m
Transport height
2.37 m
Bucket capacity
0.04 m³
Bucket width
0.38 m
Track width
230 mm
Driver protection
FD/Kb
Max. Reach horizontal
4.04 m
Dredging depth
2.38 m
Tear-out force
22.7 kN
Model series
SWE
Engine manuf.
Yanmar
Engine type
3TNV80F-SSSU
Engine power
13.4 kW
Displacement
1.267 l
Revolutions at max torque
2200 rpm
No. of cylinders
3
Emission level
US IV

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sunward SWE20F FAQ

When was the Sunward SWE20F manufactured?

The Sunward SWE20F was first produced in 2020.

How much does the Sunward SWE20F mini excavator weigh?

The Sunward SWE20F mini excavator weighs 1.94 tons.

What are the transport dimensions of the Sunward SWE20F mini excavator?

The Sunward SWE20F has a transport length of 3.82 meters, a transport width of 0.99 meters, and a transport height of 2.37 meters.

What is the track width of the Sunward SWE20F mini excavator's undercarriage?

The Sunward SWE20F mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Sunward SWE20F mini excavator?

The Sunward SWE20F mini excavator has a dredging depth of 2.38 meters and a maximum horizontal reach of 4.04 meters.

What is the tear-out force rating of the Sunward SWE20F mini excavator?

The Sunward SWE20F mini excavator has a tear-out force of 22.7 kN.

What are the specifications of the primary work tool bucket on the Sunward SWE20F mini excavator?

The primary work tool bucket of the Sunward SWE20F has a capacity of 0.04 cubic meters and a width of 0.38 meters.

What driver protection features does the Sunward SWE20F have?

The Sunward SWE20F has driver protection features including a canopy and a cabin.

How much is a Sunward SWE20F Mini excavator (2020u20132025) worth?

The residual value of the Sunward SWE20F depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
