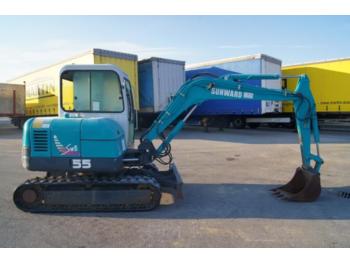

SWE 55 Sunward excavator specs & dimensions (2006 - 2020)

Sunward SWE 55 is a mini excavator manufactured from 2006 to 2020, with a weight of 4.82 tons. It features a track width of 400 mm…

Sunward SWE 55 is a mini excavator manufactured from 2006 to 2020, with a weight of 4.82 tons. It features a track width of 400 mm, a transport length of 5.32 meters, a transport width of 1.884 meters, and a transport height of 2.554 meters. The bucket capacity is 0.28 cubic meters. Special equipment includes air conditioning, rubber tracks, and track adjustment.

Mini Excavators Sunward SWE 55

Technical specs - SWE 55 Sunward

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.82 t
Transport length
5.32 m
Transport width
1.884 m
Transport height
2.554 m
Bucket capacity
0.28 m³
Track width
400 mm
Driver protection
Kb
Dredging depth
3.3 m
Tear-out force
30.3 kN
Model series
SWE
Engine manuf.
Yanmar
Engine type
4TNV88SSU
Engine power
29.2 kW

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, max. reach horizontal, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Sunward SWE 55 FAQ

When was the Sunward SWE 55 manufactured?

The Sunward SWE 55 was manufactured from 2006 to 2020.

How much does the Sunward SWE 55 weigh?

The Sunward SWE 55 weighs 4.82 tons.

What are the transport dimensions of the Sunward SWE 55 mini excavator?

The Sunward SWE 55 has a transport length of 5.32 meters, a transport width of 1.88 meters, and a transport height of 2.55 meters.

What is the track width of the Sunward SWE 55 mini excavator's undercarriage?

The Sunward SWE 55 mini excavator has a track width of 400 mm.

What is the dredging depth capability of the Sunward SWE 55 mini excavator?

The Sunward SWE 55 mini excavator has a dredging depth capability of 3.3 meters.

What is the tear-out force of the Sunward SWE 55 mini excavator?

The Sunward SWE 55 mini excavator has a tear-out force of 30.3 kN.

What is the bucket capacity of the Sunward SWE 55 mini excavator?

The bucket capacity of the Sunward SWE 55 mini excavator is 0.28 cubic meters.

What operator safety feature does the Sunward SWE 55 have?

The Sunward SWE 55 has a cabin for driver protection.

How much is a Sunward SWE 55 Mini excavator (2006u20132020) worth?

The residual value of the Sunward SWE 55 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
