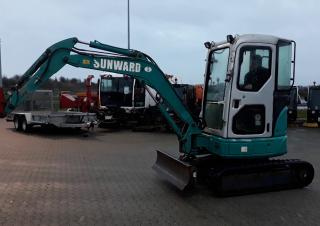

SWE 28 Sunward excavator specs & dimensions (2006 - 2007)
Technical specs - SWE 28 Sunward
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 3 t
- Bucket capacity
- 0.08 m³
- Driver protection
- Kb
- Tear-out force
- 18.2 kN
- Model series
- SWE
- Engine manuf.
- Yanmar
- Engine type
- 3TNV88
- Engine power
- 20.4 kW
- Displacement
- 1.642 l
- Revolutions at max torque
- 2200 rpm
- Max. torque
- 106/1200 Nm
- No. of cylinders
- 3
- Cylinder bore x stroke
- 88x90 mm
- Emission level
- IIIA
More technical details, like: transport length, transport width, transport height, bucket capacity min., bucket capacity max., bucket width, track width, standard tyres, max. reach horizontal, dredging depth, dimension lxwxh are available in the full technical specs.
Basic model with standard bucket
Special equipment
- Track adjustment
-
Yes
- Rubber track
-
Yes
- Blade
-
No
- Aircondition
-
Yes
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
No
