SE60 Strong excavator specs & dimensions (2020 - 2026)

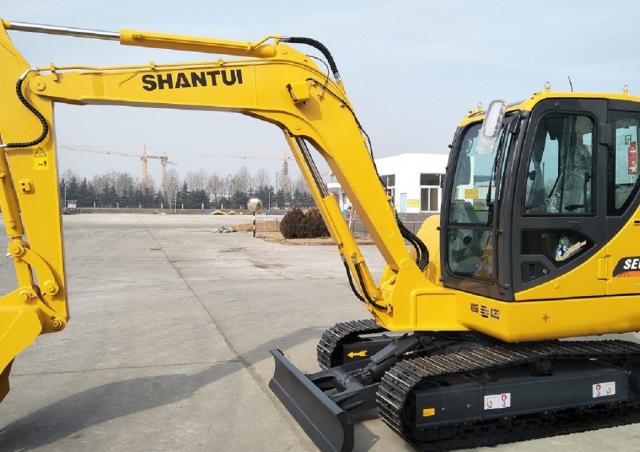

Strong SE60 is a mini excavator manufactured since 2020. It has a weight of 5.85 tons and a track width of 400 mm. The transport d…

Strong SE60 is a mini excavator manufactured since 2020. It has a weight of 5.85 tons and a track width of 400 mm. The transport dimensions are 5.851 meters in length, 1.88 meters in width, and 2.621 meters in height. The machine features a tear-out force of 40.7 kN, a dredging depth of 3.858 meters, and a maximum horizontal reach of 6.195 meters. The bucket width is 0.769 meters with a capacity of 0.22 cubic meters. Special equipment includes air conditioning and a blade.

Mini Excavators Strong SE60

Technical specs - SE60 Strong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.85 t
Transport length
5.851 m
Transport width
1.88 m
Transport height
2.621 m
Bucket capacity
0.22 m³
Bucket width
0.769 m
Track width
400 mm
Driver protection
Kb
Max. Reach horizontal
6.195 m
Dredging depth
3.858 m
Tear-out force
40.7 kN
Model series
SE
Engine manuf.
Kubota
Engine type
V2607T
Engine power
36 kW
Displacement
2.6 l
No. of cylinders
4

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Strong SE60 FAQ

When was the Strong SE60 manufactured?

The Strong SE60 was first produced in 2020.

How much does the Strong SE60 mini excavator weigh?

The Strong SE60 mini excavator weighs 5.85 tons.

What are the transport dimensions of the Strong SE60 mini excavator?

The Strong SE60 mini excavator has a transport length of 5.85 meters, a transport width of 1.88 meters, and a transport height of 2.62 meters.

What is the track width of the Strong SE60 mini excavator's undercarriage?

The Strong SE60 mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Strong SE60 mini excavator?

The Strong SE60 mini excavator has a dredging depth of 3.858 meters and a maximum horizontal reach of 6.195 meters.

What is the tear-out force of the Strong SE60 mini excavator?

The Strong SE60 mini excavator has a tear-out force of 40.7 kN.

What are the bucket specifications of the Strong SE60 mini excavator?

The Strong SE60 mini excavator has a bucket capacity of 0.22 cubic meters and a bucket width of 0.769 meters.

What operator safety features does the Strong SE60 mini excavator have?

The Strong SE60 mini excavator has a cabin for driver protection.
