SWE60 Sinoway excavator specs & dimensions (2018 - 2026)

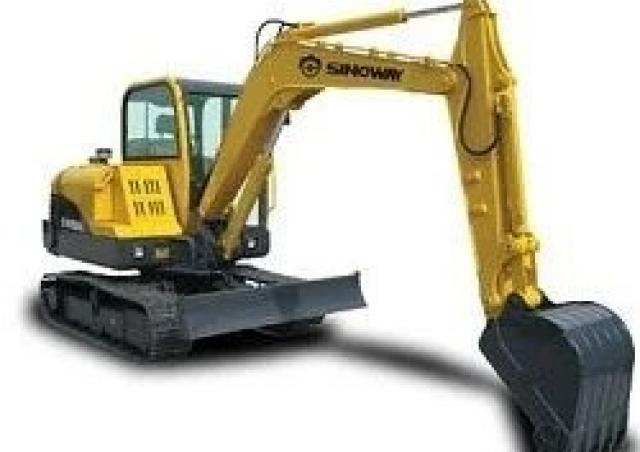

Sinoway SWE60 is a mini excavator manufactured since 2018. It has a weight of 5.8 tons and a track width of 400 mm. The transport …

Sinoway SWE60 is a mini excavator manufactured since 2018. It has a weight of 5.8 tons and a track width of 400 mm. The transport dimensions are 5.963 meters in length, 1.92 meters in width, and 2.6 meters in height. The machine features a tear-out force of 39.7 kN, a dredging depth of 2.764 meters, and a maximum horizontal reach of 6.143 meters. The bucket capacity is 0.21 cubic meters. Special equipment includes a quick hitch hydraulic system, rubber tracks, and track adjustment.

Mini Excavators Sinoway SWE60

Technical specs - SWE60 Sinoway

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.8 t
Transport length
5.963 m
Transport width
1.92 m
Transport height
2.6 m
Bucket capacity
0.21 m³
Track width
400 mm
Standard tyres
SL
Max. Reach horizontal
6.143 m
Dredging depth
2.764 m
Tear-out force
39.7 kN
Model series
SWE
Engine manuf.
Yanmar
Engine type
4TNV94L-SSU
Engine power
35.5 kW
No. of cylinders
4

More technical details, like: bucket capacity min., bucket capacity max., bucket width, driver protection, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
No
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Sinoway SWE60 FAQ

When was the Sinoway SWE60 manufactured?

The Sinoway SWE60 was first produced in 2018.

How much does the Sinoway SWE60 weigh?

The Sinoway SWE60 weighs 5.8 tons.

What are the transport dimensions of the Sinoway SWE60 mini excavator?

The Sinoway SWE60 has a transport length of 5.96 meters, a transport width of 1.92 meters, and a transport height of 2.6 meters.

What are the undercarriage specifications of the Sinoway SWE60 mini excavator?

The Sinoway SWE60 mini excavator has standard SL tyres and a track width of 400 mm.

What is the excavation performance of the Sinoway SWE60 mini excavator?

The Sinoway SWE60 mini excavator has a dredging depth of 2.764 meters and a maximum horizontal reach of 6.143 meters.

What is the tear-out force of the Sinoway SWE60 mini excavator?

The Sinoway SWE60 mini excavator has a tear-out force of 39.7 kN.

What is the bucket capacity of the Sinoway SWE60 mini excavator?

The Sinoway SWE60 mini excavator has a bucket capacity of 0.21 cubic meters.

How much is a Sinoway SWE60 Mini excavator (2018u20132025) worth?

The residual value of the Sinoway SWE60 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
