SE60W Shantui excavator specs & dimensions (2025 - 2026)

Weight: 5.96t – Transport length: 5.855m – Transport width: 1.88m – Transport height: 2.61m – Bucket capacity: 0.22m³ – Bucket cap…

Weight: 5.96t – Transport length: 5.855m – Transport width: 1.88m – Transport height: 2.61m – Bucket capacity: 0.22m³ – Bucket capacity min.: 0.11m³

Check out detailed specifications, information and technical data for Shantui SE60W excavator manufactured between 2025 - 2026. Get more in-depth insight with Shantui SE60W digger specifications. See information, like: Weight: 5.96t – Transport length: 5.855m – Transport width: 1.88m – Transport height: 2.61m – Bucket capacity: 0.22m³ – Bucket capacity min.: 0.11m³ and more.

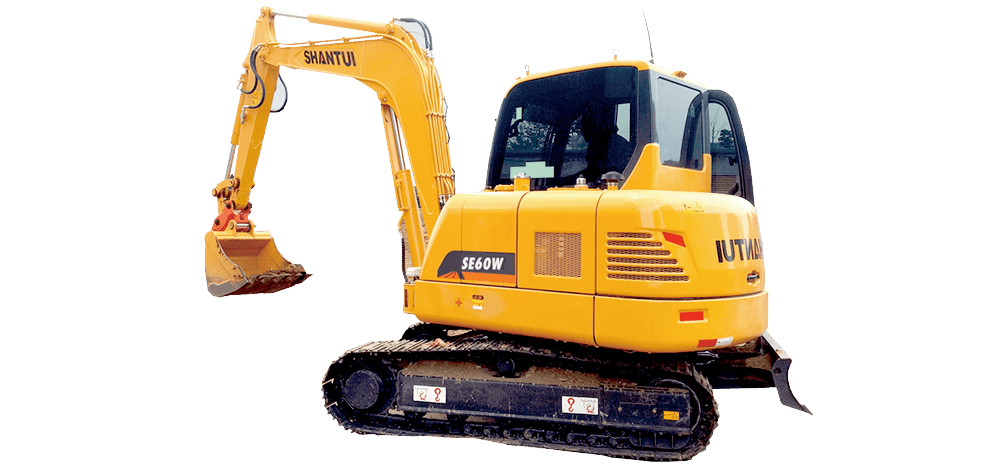

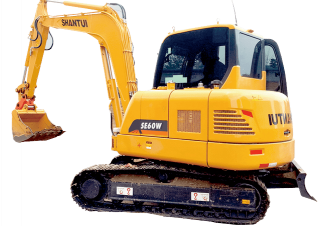

Mini Excavators Shantui SE60W

Technical specs - SE60W Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.96 t
Transport length
5.855 m
Transport width
1.88 m
Transport height
2.61 m
Bucket capacity
0.22 m³
Bucket capacity min.
0.11 m³
Bucket capacity max.
0.22 m³
Track width
400 mm
Max. Reach horizontal
6.06 m
Dredging depth
3.85 m
Tear-out force
48 kN
Engine manuf.
Weichai
Engine type
WP3.2
Engine power
36.8 kW
Displacement
3.17 l
No. of cylinders
4
Emission level
Tier 3 / Stage III

More technical details, like: bucket width, standard tyres, driver protection, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No
