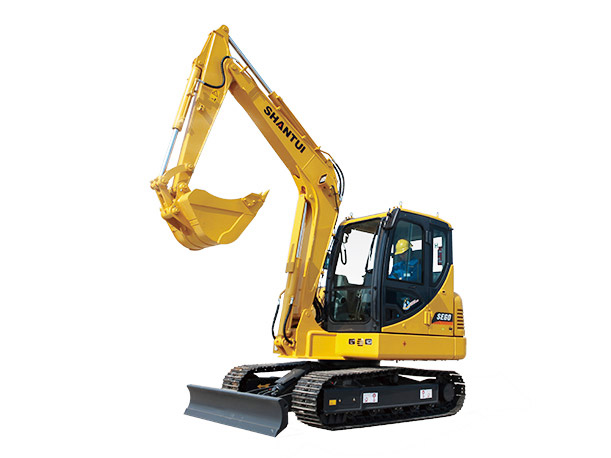

SE60 Shantui excavator specs & dimensions (2020 - 2026)

Shantui SE60 is a mini excavator manufactured since 2020, with a weight of 5.96 tons. It features a track width of 400 mm, a trans…

Shantui SE60 is a mini excavator manufactured since 2020, with a weight of 5.96 tons. It features a track width of 400 mm, a transport length of 5.85 meters, a transport width of 1.18 meters, and a transport height of 2.58 meters. The machine has a dredging depth of 3.85 meters and a maximum horizontal reach of 6.2 meters. It comes with a bucket capacity of 0.22 cubic meters and is equipped with air conditioning and a blade.

Mini Excavators Shantui SE60

Technical specs - SE60 Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.96 t
Transport length
5.855 m
Transport width
1.88 m
Transport height
2.61 m
Bucket capacity
0.22 m³
Bucket capacity min.
0.11 m³
Bucket capacity max.
0.22 m³
Bucket width
0.765 m
Track width
400 mm
Max. Reach horizontal
6.2 m
Dredging depth
3.85 m
Tear-out force
48 kN
Engine manuf.
Kubota
Engine type
V2607
Engine power
36 kW
Displacement
2.615 l
No. of cylinders
4
Emission level
Tier 3 / Stage III

More technical details, like: standard tyres, driver protection, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Shantui SE60 FAQ

When was the Shantui SE60 manufactured?

The Shantui SE60 was first produced in 2020.

How much does the Shantui SE60 weigh?

The Shantui SE60 weighs 5.96 tons.

What are the transport dimensions of the Shantui SE60 mini excavator?

The Shantui SE60 has a transport length of 5.85 meters, a transport width of 1.18 meters, and a transport height of 2.58 meters.

What is the track width of the Shantui SE60 mini excavator?

The Shantui SE60 mini excavator has a track width of 400 mm.

What are the dredging depth and maximum horizontal reach of the Shantui SE60 mini excavator?

The Shantui SE60 mini excavator has a dredging depth of 3.85 meters and a maximum horizontal reach of 6.2 meters.

What is the bucket capacity of the Shantui SE60 mini excavator?

The Shantui SE60 mini excavator has a bucket capacity of 0.22 cubic meters.
