SE27SR Shantui excavator specs & dimensions (2023 - 2026)

Weight: 2.8t – Transport length: 4.2m – Transport width: 1.55m – Transport height: 2.48m – Bucket capacity: 0.065m³ – Bucket width…

Weight: 2.8t – Transport length: 4.2m – Transport width: 1.55m – Transport height: 2.48m – Bucket capacity: 0.065m³ – Bucket width: 0.46m

Check out detailed specifications, information and technical data for Shantui SE27SR excavator manufactured between 2023 - 2026. Get more in-depth insight with Shantui SE27SR digger specifications. See information, like: Weight: 2.8t – Transport length: 4.2m – Transport width: 1.55m – Transport height: 2.48m – Bucket capacity: 0.065m³ – Bucket width: 0.46m and more.

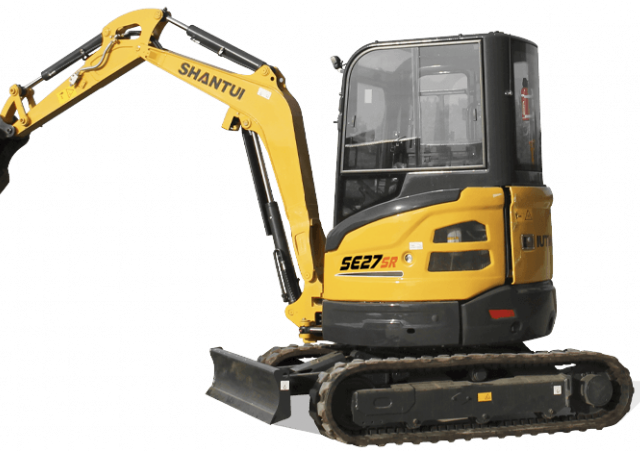

Mini Excavators Shantui SE27SR

Technical specs - SE27SR Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.8 t
Transport length
4.2 m
Transport width
1.55 m
Transport height
2.48 m
Bucket capacity
0.065 m³
Bucket width
0.46 m
Track width
300 mm
Driver protection
Kb
Max. Reach horizontal
4.68 m
Dredging depth
2.8 m
Tear-out force
24 kN
Engine manuf.
Yanmar
Engine type
3TNV80F
Engine power
14.6 kW
Displacement
1.267 l
No. of cylinders
3
Emission level
Tier 4 / Stage V

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Shantui SE27SR FAQ

When was the Shantui SE27SR manufactured?

The Shantui SE27SR was first produced in 2023.

How much does the Shantui SE27SR weigh?

The Shantui SE27SR weighs 2.8 tons.

What are the transport dimensions of the Shantui SE27SR mini excavator?

The Shantui SE27SR has a transport length of 4.2 meters, a transport width of 1.55 meters, and a transport height of 2.48 meters.

What are the excavation performance specifications of the Shantui SE27SR mini excavator?

The Shantui SE27SR mini excavator has a dredging depth of 2.8 meters and a maximum horizontal reach of 4.39 meters.

What is the tear-out force of the Shantui SE27SR mini excavator?

The Shantui SE27SR mini excavator has a tear-out force of 24 kN.

What is the bucket capacity of the Shantui SE27SR mini excavator?

The Shantui SE27SR mini excavator has a bucket capacity of 0.065 cubic meters.
