SE18SR Shantui excavator specs & dimensions (2023 - 2026)

Weight: 1.8t – Transport length: 3.57m – Transport width: 0.99m – Transport height: 2.4m – Bucket capacity: 0.04m³ – Track width: …

Weight: 1.8t – Transport length: 3.57m – Transport width: 0.99m – Transport height: 2.4m – Bucket capacity: 0.04m³ – Track width: 450mm

Check out detailed specifications, information and technical data for Shantui SE18SR excavator manufactured between 2023 - 2026. Get more in-depth insight with Shantui SE18SR digger specifications. See information, like: Weight: 1.8t – Transport length: 3.57m – Transport width: 0.99m – Transport height: 2.4m – Bucket capacity: 0.04m³ – Track width: 450mm and more.

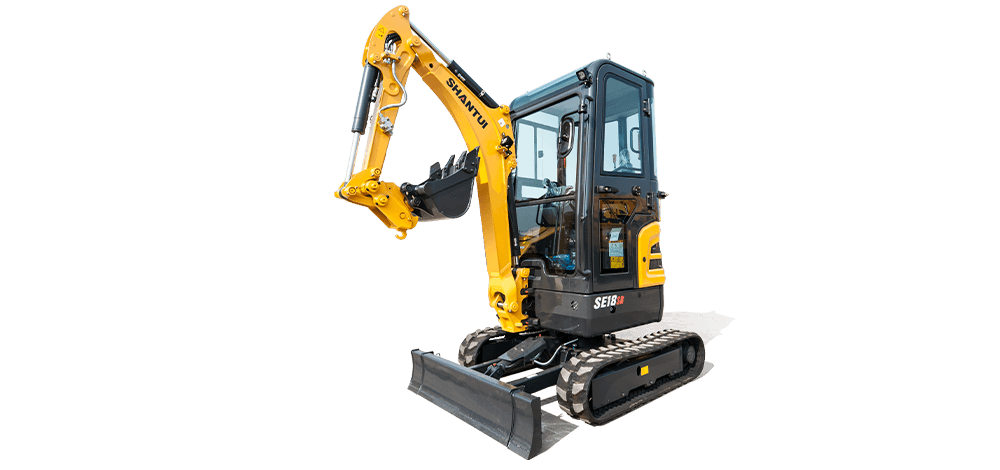

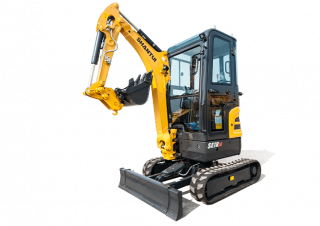

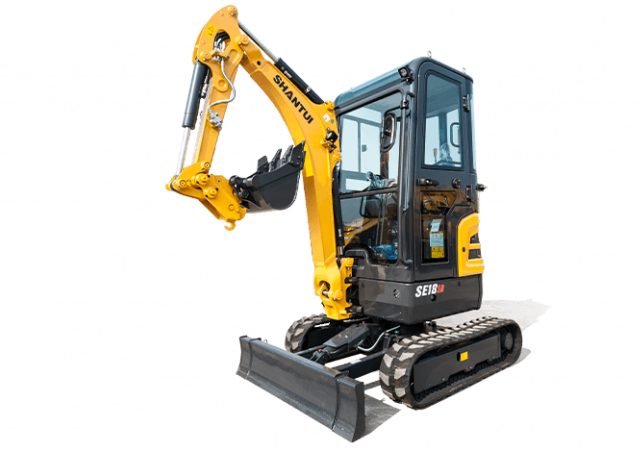

Mini Excavators Shantui SE18SR

Technical specs - SE18SR Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.8 t
Transport length
3.57 m
Transport width
0.99 m
Transport height
2.4 m
Bucket capacity
0.04 m³
Track width
450 mm
Driver protection
FD
Max. Reach horizontal
3.845 m
Dredging depth
2.27 m
Tear-out force
16 kN
Engine manuf.
Kubota
Engine type
D902
Engine power
11.8 kW
Displacement
0.898 l
No. of cylinders
3
Emission level
Tier 4 / Stage V

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Shantui SE18SR FAQ

When was the Shantui SE18SR manufactured?

The Shantui SE18SR was first produced in 2023.

How much does the Shantui SE18SR mini excavator weigh?

The Shantui SE18SR mini excavator weighs 1.88 tons.

What are the transport dimensions of the Shantui SE18SR mini excavator?

The Shantui SE18SR has a transport length of 3.58 meters, a transport width of 1.3 meters, and a transport height of 2.41 meters.

What are the excavation performance specifications of the Shantui SE18SR mini excavator?

The Shantui SE18SR mini excavator has a dredging depth of 2.27 meters and a maximum horizontal reach of 3.535 meters.

What is the tear-out force of the Shantui SE18SR mini excavator?

The Shantui SE18SR mini excavator has a tear-out force of 16 kN. No power ratings are provided in the available data.

What is the bucket capacity of the Shantui SE18SR mini excavator?

The Shantui SE18SR mini excavator has a bucket capacity of 0.04 cubic meters.
