ER626H SDLG excavator specs & dimensions (2026 - 2026)

Weight: 2.85t – Transport length: 4.365m – Transport width: 1.55m – Transport height: 2.46m – Bucket capacity: 0.06m³ – Bucket cap…

Weight: 2.85t – Transport length: 4.365m – Transport width: 1.55m – Transport height: 2.46m – Bucket capacity: 0.06m³ – Bucket capacity min.: 0.06m³

Check out detailed specifications, information and technical data for SDLG ER626H excavator manufactured between 2026 - 2026. Get more in-depth insight with SDLG ER626H digger specifications. See information, like: Weight: 2.85t – Transport length: 4.365m – Transport width: 1.55m – Transport height: 2.46m – Bucket capacity: 0.06m³ – Bucket capacity min.: 0.06m³ and more.

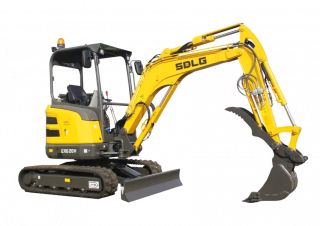

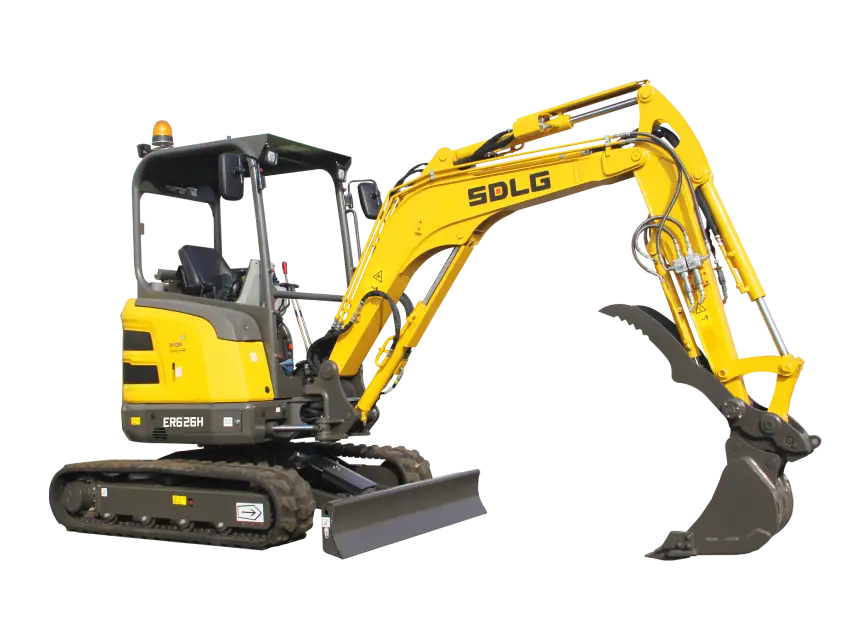

Mini Excavators SDLG ER626H

Technical specs - ER626H SDLG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.85 t
Transport length
4.365 m
Transport width
1.55 m
Transport height
2.46 m
Bucket capacity
0.06 m³
Bucket capacity min.
0.06 m³
Bucket capacity max.
0.47 m³
Max. Reach horizontal
4.88 m
Dredging depth
2.86 m
Tear-out force
24.5 kN
Model series
H
Engine manuf.
Kubota
Engine type
D1105-EF07_CN4
Engine power
15.2 kW
Displacement
1.1 l
Revolutions at max torque
1600 rpm
Max. torque
70.3 Nm
No. of cylinders
3
Cylinder bore x stroke
78×78.4 mm
Emission level
V

More technical details, like: bucket width, track width, standard tyres, driver protection, dimension lxwxh are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No
