TC 60 Schaeff excavator specs & dimensions (2017 - 2020)

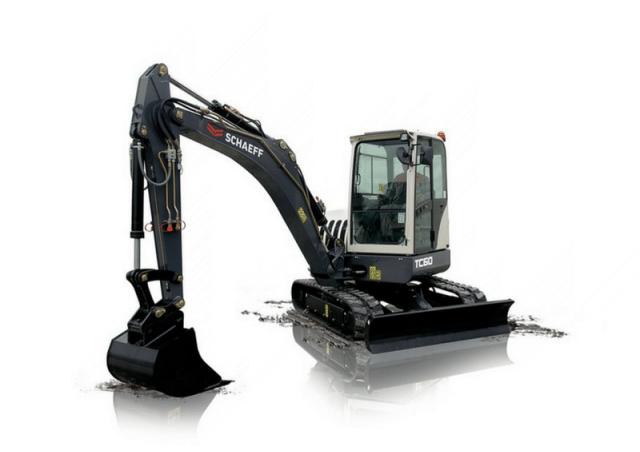

Schaeff TC 60 is a Mini Excavator manufactured from 2017 to 2020. It has a weight of 5.65 tons and a track width of 400 mm. The tr…

Schaeff TC 60 is a Mini Excavator manufactured from 2017 to 2020. It has a weight of 5.65 tons and a track width of 400 mm. The transport dimensions are 5.39 meters in length, 1.99 meters in width, and 2.65 meters in height. The machine features a tear-out force of 28.2 kN, a dredging depth of 3.75 meters, and a maximum horizontal reach of 6.4 meters. The bucket width is 0.4 meters, with a capacity ranging from 0.068 m³ to 0.232 m³. Special equipment includes a blade, mechanical quick hitch, and rubber tracks.

TC 60

Years of manufacture: 2017—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TC 60 Schaeff

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.65 t

Transport length: 5.39 m

Transport width: 1.99 m

Transport height: 2.65 m

Bucket capacity min.: 0.068 m³

Bucket capacity max.: 0.232 m³

Bucket width: 0.4 m

Track width: 400 mm

Driver protection: KbR

Max. Reach horizontal: 6.4 m

Dredging depth: 3.75 m

Tear-out force: 28.2 kN

Engine manuf.: Mitsubishi

Engine type: X4Q2-Y365kl

Engine power: 32.2 kW

Displacement: 2.51 l

Revolutions at max torque: 2400 rpm

Max. torque: 133/2000 Nm

No. of cylinders: 4

Emission level: Tier 4

More technical details, like: bucket capacity, standard tyres, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Download datasheets (PDF)

Schaeff TC 60 FAQ

When was the Schaeff TC 60 manufactured?

The Schaeff TC 60 was manufactured from 2017 to 2020.

How much does the Schaeff TC 60 weigh?

The Schaeff TC 60 weighs 5.65 tons.

What are the transport dimensions of the Schaeff TC 60 mini excavator?

The Schaeff TC 60 has a transport length of 5.39 meters, a transport width of 1.99 meters, and a transport height of 2.65 meters.

What is the track width of the Schaeff TC 60 mini excavator?

The Schaeff TC 60 mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Schaeff TC 60 mini excavator?

The Schaeff TC 60 mini excavator has a dredging depth of 3.75 meters and a maximum horizontal reach of 6.4 meters.

What power ratings are available for the Schaeff TC 60 mini excavator?

The source data does not provide power ratings for the Schaeff TC 60 mini excavator. However, its tear-out force is 28.2 kN.

What are the bucket specifications of the Schaeff TC 60 mini excavator?

The Schaeff TC 60 mini excavator has a bucket width of 0.4 meters, with a bucket capacity ranging from 0.07 to 0.23 cubic meters.

What operator safety and support features does the Schaeff TC 60 have?

The Schaeff TC 60 is equipped with a cabin that includes ROPS for driver protection.

How much is a Schaeff TC 60 Mini excavator (2017u20132020) worth?

The residual value of the Schaeff TC 60 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Schaeff TC 60 overview

Dimensions and weight

Bucket hinge height		Load radius from center of ring gear
Dipperstick 1600 mm		2.0 m	3.0 m	4.0 m	5.0 m	5.4 m
		End	Side	End	Side	End	Side	End	Side	End	Side
2.0 m	S	-	-	-	-	1.44	0.98	-	-	-	-
	T	-	-	-	-	1.13	0.91	-	-	-	-
1.0 m	S	2.99	2.05	2.33	1.52	1.72	0.94	1.35	0.65	1.20	0.57
	T	2.26	1.92	1.80	1.41	1.13	0.89	0.78	0.61	0.68	0.53
0 m	S	-	-	2.93	1.27	1.89	0.83	1.31	0.59	1.08	0.52
	T	-	-	1.88	1.20	1.07	0.79	0.86	0.55	0.76	0.48
0.7 m -	S	2.70	1.67	2.60	1.20	1.72	0.77	1.19	0.58	1.00	0.54
	T	1.65	1.53	1.58	1.15	1.03	0.76	0.74	0.56	0.65	0.51

Maintenance-free crawler-type undercarriage. Idler suspension with hydraulic crawler track tensioning.
Width rubber crawlers / steel crawlers 400 mm
Tread width	1580 mm
Total length (sprocket - idler)	2060 mm
Total length (undercarriage)	2570 mm

Transport weight (incl. bucket)	5650 kg
Total length (trailer transport position)	max. 5810 / min. 5390 mm
Total width (uppercarriage)	1780 mm
Total width (undercarriage)	1980 mm
Uppercarriage tailswing	1050 mm
Uppercarriage frontswing	2050 mm
Working envelope 180° / 360°	3100 / 4100 mm
Ground clearance	360 mm
Bucket digging force (ISO 6015)	40	000 N"
Stick digging force (ISO 6015)	28	200 N"
Ground pressure (rubber crawlers)	0.29 daN/cm2
Ground pressure (steel crawlers)	0.31 daN/cm 2

Tables

Independent of drive train	sensitive control via separate hand lever."
Width x height	1990 x 441 mm
Dozer cut below ground	360 mm
Dozer lift above ground	430 mm
Slope angle	35°

2 speed ranges:
Travel speed	forward and reverse"	0-3 / 5.2 kph
Gradeability	> 60 %
Drawbar pull 1st / 2nd speed range	4202 / 2474 daN

Nominal voltage	12 V
Battery	12 V / 74 Ah
Generator	12 V / 50 A
Starter	12 V / 2.0 kW

Displacement	2505 cm3
Net power rating at 2400 rpm (ISO 9249)	32.2 kW (44 hp)
Specific fuel consumption	255 g/kWh
Torque	133 Nm at 2000 rpm

Lateral parallel adjustment of boom arrangement at full dig depth.
Angle of articulation / lateral adjustment left	60° / 710 mm
Angle of articulation / lateral adjustment right	60° / 850 mm
FLUID CAPACITIES
Fuel tank	95 l
Hydraulic system (incl. tank)	108 l

Bucket, QAS	300 mm wide, capacity 68 l"
Bucket, directly mounted	300 mm wide, capacity 80 l"
Bucket, QAS	400 mm wide, capacity 99 l"
Bucket, directly mounted	400 mm wide, capacity 112 l"
Bucket, QAS	500 mm wide, capacity 131 l"
Bucket, directly mounted	500 mm wide, capacity 144 l"
Bucket, QAS	600 mm wide, capacity 164 l"
Bucket, directly mounted	600 mm wide, capacity 176 l"
Bucket, QAS	700 mm wide, capacity 198 l"
Bucket, directly mounted	750 mm wide, capacity 225 l"
Bucket, QAS	800 mm wide, capacity 232 l"
Ditch-cleaning bucket, QAS	1300 mm wide, capacity 191 l"
Ditch-cleaning bucket, directly mounted	1250 mm wide, capacity 211 l"
Swing bucket, QAS	1300 mm wide, capacity 191 l"
Swing bucket, directly mounted	1000 mm wide, capacity 211 l"

Hydraulic hammer	Cutting unit
Auger	Quick-change adapter for hydraulic hammer
Load hook integrated in quick-attach system	Bolt-on load hook for bucket rod
Further work attachments available on request

Clamshell grab GL 1250, grab swing brake	set of shells 250 mm wide, capacity 45 l"
Clamshell grab GL 1350, grab swing brake	set of shells 350 mm wide, capacity 65 l"
Clamshell grab GL 1450, grab swing brake	set of shells 450 mm wide, capacity 85 l"
Clamshell grab GL 1600, grab swing brake	set of shells 600 mm wide, capacity 115 l"

Air conditioning	FOPS - skylight guard
Lighting package: 1 double beam working floodlight cab-mounted rear center	1 working floodlight - cab-mounted - front right"	Motion alarm incl. horn (to be deactivated on demand)
Yellow beacon	Radio set installation kit
