TC 50 Schaeff excavator specs & dimensions (2017 - 2020)

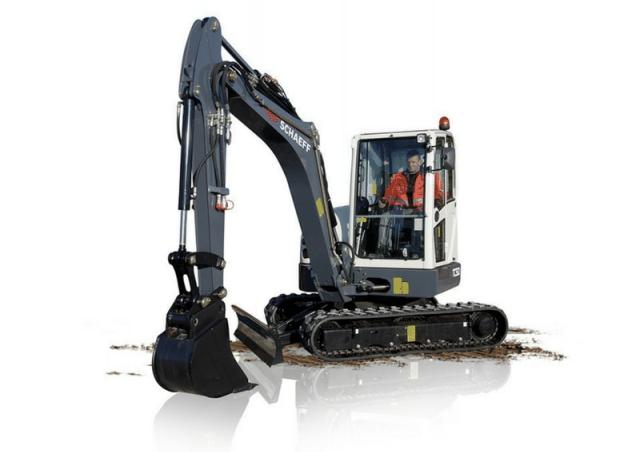

Schaeff TC 50 is a mini excavator manufactured from 2017 to 2020. It has a weight of 4.82 tons and a track width of 400 mm. The tr…

Schaeff TC 50 is a mini excavator manufactured from 2017 to 2020. It has a weight of 4.82 tons and a track width of 400 mm. The transport dimensions are 5.39 m in length, 1.99 m in width, and 2.55 m in height. The machine features a tear-out force of 27 kN, a dredging depth of 3.7 m, and a maximum horizontal reach of 6.22 m. The bucket width is 0.4 m, with a capacity ranging from 0.068 m³ to 0.232 m³. Special equipment includes a blade, mechanical quick hitch, and rubber tracks.

TC 50

Years of manufacture: 2017—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TC 50 Schaeff

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 4.82 t

Transport length: 5.39 m

Transport width: 1.99 m

Transport height: 2.55 m

Bucket capacity min.: 0.068 m³

Bucket capacity max.: 0.232 m³

Bucket width: 0.4 m

Track width: 400 mm

Driver protection: FD

Max. Reach horizontal: 6.22 m

Dredging depth: 3.7 m

Tear-out force: 27 kN

Engine manuf.: Yanmar

Engine type: 4TNV88

Engine power: 26.5 kW

Displacement: 2.19 l

Revolutions at max torque: 2200 rpm

Max. torque: 138/1320 Nm

No. of cylinders: 4

Emission level: Tier 4 i

More technical details, like: bucket capacity, standard tyres, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Download datasheets (PDF)

Schaeff TC 50 FAQ

When was the Schaeff TC 50 manufactured?

The Schaeff TC 50 was manufactured from 2017 to 2020.

How much does the Schaeff TC 50 weigh?

The Schaeff TC 50 weighs 4.82 tons.

What are the transport dimensions of the Schaeff TC 50 mini excavator?

The Schaeff TC 50 has a transport length of 5.39 meters, a transport width of 1.99 meters, and a transport height of 2.55 meters.

What is the track width of the Schaeff TC 50 mini excavator?

The Schaeff TC 50 mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Schaeff TC 50 mini excavator?

The Schaeff TC 50 mini excavator has a dredging depth of 3.7 meters and a maximum horizontal reach of 6.22 meters.

What is the tear-out force of the Schaeff TC 50 mini excavator?

The Schaeff TC 50 mini excavator has a tear-out force of 27 kN.

What are the bucket specifications of the Schaeff TC 50 mini excavator?

The Schaeff TC 50 has a bucket width of 0.4 meters, with a maximum capacity of 0.23 cubic meters and a minimum capacity of 0.07 cubic meters.

What operator safety and support features does the Schaeff TC 50 have?

The Schaeff TC 50 is equipped with a canopy for driver protection.

How much is a Schaeff TC 50 Mini excavator (2017u20132020) worth?

The residual value of the Schaeff TC 50 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Schaeff TC 50 overview

Dimensions and weight

Bucket hinge height Dipperstick 1650 mm		2.5 m		Load radius from center of ring gear
3.0 m	3.5 m	4.0 m	4.5 m	5.0 m	5.3 m
End	Side	End	Side	End	Side	End	Side	End	Side	End	Side	End	Side
2.0 m	S	-	-	1.68	1.27	1.55	1.00	1.39	0.77	1.24	0.65	1.15	0.54	1.08	0.51
	T	-	-	1.52	1.23	1.09	0.94	0.86	0.76	0.71	0.62	0.58	0.51	0.55	0.48
1.0 m	S	3.56	1.49	2.57	1.16	2.00	0.94	1.64	0.77	1.39	0.63	1.18	0.53	1.04	0.48
	T	1.65	1.42	1.32	1.11	1.03	0.89	0.85	0.72	0.70	0.59	0.57	0.50	0.51	0.45
0 m	S	3.03	1.36	2.44	1.07	1.91	0.85	1.57	0.69	1.28	0.59	1.06	0.50	0.97	0.47
	T	1.56	1.32	1.16	1.02	0.94	0.82	0.77	0.67	0.64	0.56	0.55	0.47	0.51	0.44

Width rubber crawlers / steel crawlers	400 mm
Tread width	1590 mm
Total length (sprocket - idler)	1920 mm
Total length (undercarriage)	2430 mm

Transport weight (incl. QAS	without bucket)"	4820 kg
Operating weight acc. to ISO 6016 (incl. operator)	5020 kg
Total length (travel position)	3570 mm
Total height (travel position)	3895 mm
Overall width (undercarriage)	1990 mm
Total width (uppercarriage)	1850 mm
Uppercarriage tailswing	995 mm
Uppercarriage frontswing	2020 mm
Working envelope 180° / 360°	3015 / 4040 mm
Ground clearance	360 mm
Bucket digging force (ISO 6015)	31	200 N"
Stick digging force (ISO 6015)	27	000 (23	800*) N"
Ground pressure (rubber crawlers)	0.27 daN/cm2

Mechanical quick-attach system (QAS)	Crane loading wire-rope harness
Quick-attach system	mechanical (genuine Lehnhoff system)	type MS03"	Canopy with working floodlight (weight reduction: 80 kg)
Additional boom-mounted working floodlight	Electrical refueling pump
Integrated stowage box	Special coating / adhesive films
Front dozer blade - extra-long version	Further optional equipment available on request

Tables

Independent of drive train	sensitive control via hand lever."
Width x height	1990 x 400 mm
Dozer cut below ground	220 mm
Dozer lift above ground	500 mm
Slope angle	38°

Nominal voltage	12 V
Battery	12 V / 74 Ah
Generator	12 V / 40 A
Starter	12 V / 2.3 kW

Travel speed	forward and reverse"	0-2.8 / 5.0 kph
Automatic shift-over between speed range 1 and 2.
Gradeability	max. 60 %
Drawbar pull 1st / 2nd speed range	4280 / 2400 daN

Displacement	2190 cm3
Net power rating at 2200 rpm (ISO 9249)	26.5 kW (36 hp)
Torque	138 Nm at 1320 rpm
Cooling system	Water

Lateral parallel adjustment of boom arrangement at full dig depth.
Angle of articulation / lateral adjustment left	67° / 860 mm
Angle of articulation / lateral adjustment right	64° / 770 mm
FLUID CAPACITIES
Fuel tank	65 l
Hydraulic system (incl. tank 60 l)	90 l

Bucket, QAS	300 mm wide, capacity 68 l"
Bucket, QAS	400 mm wide, capacity 99 l"
Bucket, QAS	500 mm wide, capacity 131 l"
Bucket, QAS	600 mm wide, capacity 164 l"
Bucket, QAS	700 mm wide, capacity 198 l"
Bucket, QAS	800 mm wide, capacity 232 l"
Ditch-cleaning bucket, QAS	1300 mm wide, capacity 191 l"
Swing bucket, QAS	1300 mm wide, capacity 191 l"
Swing bucket, directly mounted	1000 mm wide, capacity 211 l"

Hydraulic hammer	Cutting unit
Auger	Quick-change adapter for hydraulic hammer
Load hook integrated in quick-attach system	Bolt-on load hook for bucket rod

Clamshell grab GL 1250, grab swing brake	set of shells 250 mm wide, capacity 45 l"
Clamshell grab GL 1350, grab swing brake	set of shells 350 mm wide, capacity 65 l"
Clamshell grab GL 1450, grab swing brake	set of shells 450 mm wide, capacity 85 l"
Clamshell grab GL 1600, grab swing brake	set of shells 600 mm wide, capacity 115 l"

Schaeff 'Fingertip' control for work attachments on right joystick	Hose-rupture / load-retaining valve for boom with load warning device
Schaeff 'Fingertip' control incl. second additional control circuit on left joystick	Hose-rupture / load-retaining valve for dipperstick
Second control circuit (e.g. for sorting grab)	Biodegradable hydraulic oil / ester-based HLP 68 (Panolin)
Conversion kit from ISO controls to Schaeff controls DRIVER’S STAND	Float position - dozer blade
