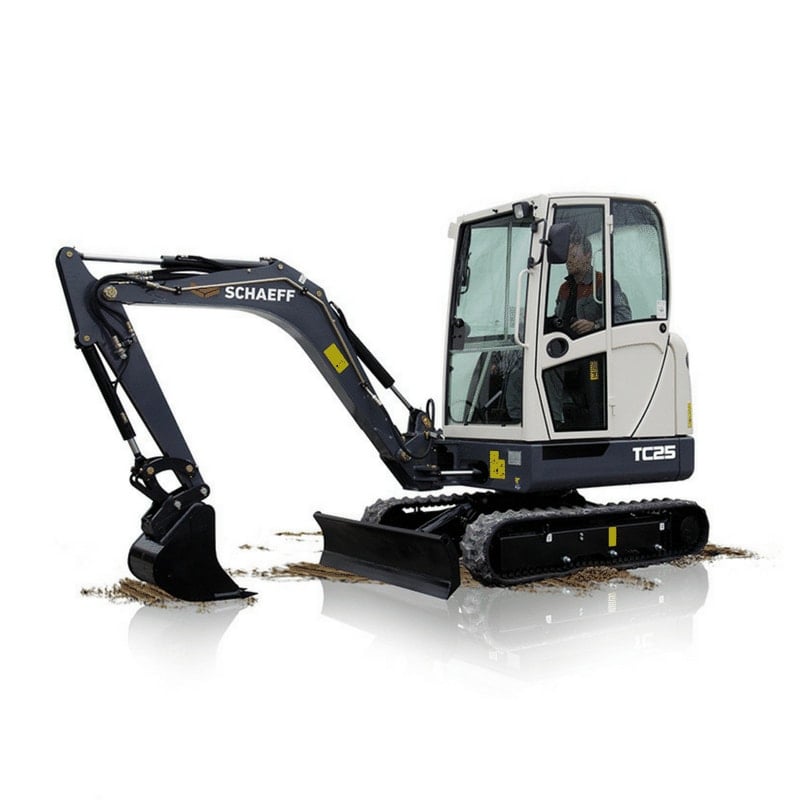

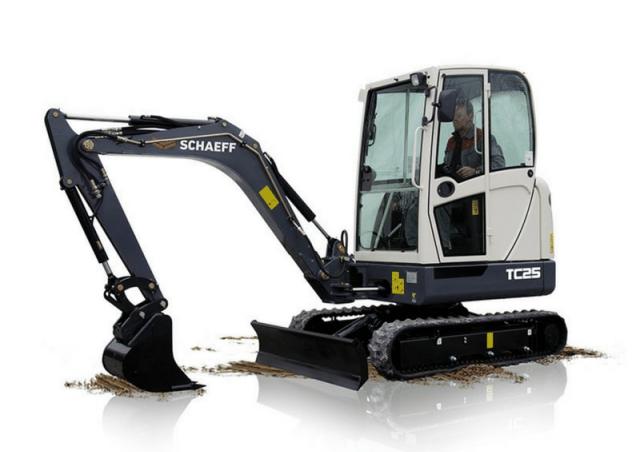

TC 25 Schaeff excavator specs & dimensions (2017 - 2020)

Schaeff TC 25 is a Mini Excavator manufactured from 2017 to 2020, with a weight of 2.45 tons. It features a track width of 250 mm,…

Schaeff TC 25 is a Mini Excavator manufactured from 2017 to 2020, with a weight of 2.45 tons. It features a track width of 250 mm, a transport length of 4.51 meters, a transport width of 1.51 meters, and a transport height of 2.45 meters. The machine has a tear-out force of 12.8 kN, a dredging depth of 2.86 meters, and a maximum horizontal reach of 4.7 meters. The bucket width is 0.3 meters, with a bucket capacity ranging from 0.038 m³ to 0.11 m³. Special equipment includes a blade, a mechanical quick hitch, and rubber tracks.

Mini Excavators Schaeff TC 25

Technical specs - TC 25 Schaeff

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.45 t
Transport length
4.51 m
Transport width
1.51 m
Transport height
2.45 m
Bucket capacity min.
0.038 m³
Bucket capacity max.
0.11 m³
Bucket width
0.3 m
Track width
250 mm
Driver protection
KbR
Max. Reach horizontal
4.7 m
Dredging depth
2.86 m
Tear-out force
12.8 kN
Engine manuf.
Mitsubishi
Engine type
S3L2
Engine power
17.4 kW
Displacement
1.318 l
Revolutions at max torque
2200 rpm
Max. torque
78.4/1800 Nm
No. of cylinders
3
Emission level
Tier 4 f

More technical details, like: bucket capacity, standard tyres, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
Yes

Download datasheets (PDF)

Schaeff TC 25 FAQ

When was the Schaeff TC 25 manufactured?

The Schaeff TC 25 was manufactured from 2017 to 2020.

How much does the Schaeff TC 25 weigh?

The Schaeff TC 25 weighs 2.45 tons.

What are the transport dimensions of the Schaeff TC 25 mini excavator?

The Schaeff TC 25 has a transport length of 4.51 meters, a transport width of 1.51 meters, and a transport height of 2.45 meters.

What is the track width of the Schaeff TC 25 mini excavator?

The Schaeff TC 25 mini excavator has a track width of 250 mm.

What are the excavation performance specifications of the Schaeff TC 25 mini excavator?

The Schaeff TC 25 mini excavator has a dredging depth of 2.86 meters and a maximum horizontal reach of 4.7 meters.

What is the tear-out force of the Schaeff TC 25 mini excavator?

The Schaeff TC 25 mini excavator has a tear-out force of 12.8 kN.

What are the bucket specifications of the Schaeff TC 25 mini excavator?

The Schaeff TC 25 has a bucket width of 0.3 meters, with a bucket capacity ranging from 0.04 to 0.11 cubic meters.

What operator safety and support features does the Schaeff TC 25 have?

The Schaeff TC 25 is equipped with a cabin that includes ROPS (Roll-Over Protective Structure) for driver protection.

How much is a Schaeff TC 25 Mini excavator (2017u20132020) worth?

The residual value of the Schaeff TC 25 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Schaeff TC 25 overview

Dimensions and weight

Bucket hinge heightLoad radius from center of ring gear
Dipperstick 1200 mm2.0 m2.5 m3.0 m3.5 m4.0 m
EndSideEndSideEndSideEndSideEndSide
2.0 mS----0.480.450.470.35--
T----0.470.440.460.33--
1.0 mS1.340.840.890.590.660.450.540.340.440.28
T0.980.790.700.560.520.420.400.330.320.26
0 mS1.220.740.900.590.670.420.500.330.390.27
T0.860.720.630.540.480.390.380.310.310.26
-1.0 mS0.990.710.720.540.520.420.400.34--
T0.850.700.740.530.540.410.370.31--
Transport weight (without bucket)2450 kg
Operating weight acc. to ISO 6016 (incl. operator)2600 kg
Total length (travel position)2950 mm
Total height (travel position)3060 mm
Total width1510 mm
Uppercarriage tailswing1100 mm
Uppercarriage frontswing1470 mm
Working envelope 180° / 360°2570 / 2940 mm
Ground Clearance310 mm
Bucket digging force (ISO 6015)21800 N"
Stick digging force (ISO 6015)12800 N"
Ground pressure (rubber crawlers)0.28 daN/cm2

Tables

Travel speed forward and reverse"0-2.7 / 4.4 km/h
Max.gradeability 60 %
Drawbar pull 1st / 2nd speed range1965 / 1250 daN
Pump capacitymax. 67 l/min
Working pressure250 bar
Displacement1318 cm3
Rated power acc. to ISO 9249 at 2200 rpm17.4 kW (24 hp)
Torque78.4 Nm at 1800 rpm
Cooling systemWater
