TC 19-2 Schaeff excavator specs & dimensions (2017 - 2020)

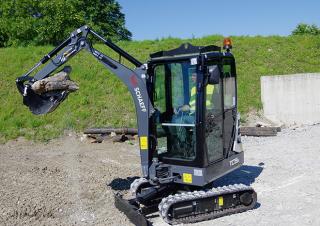

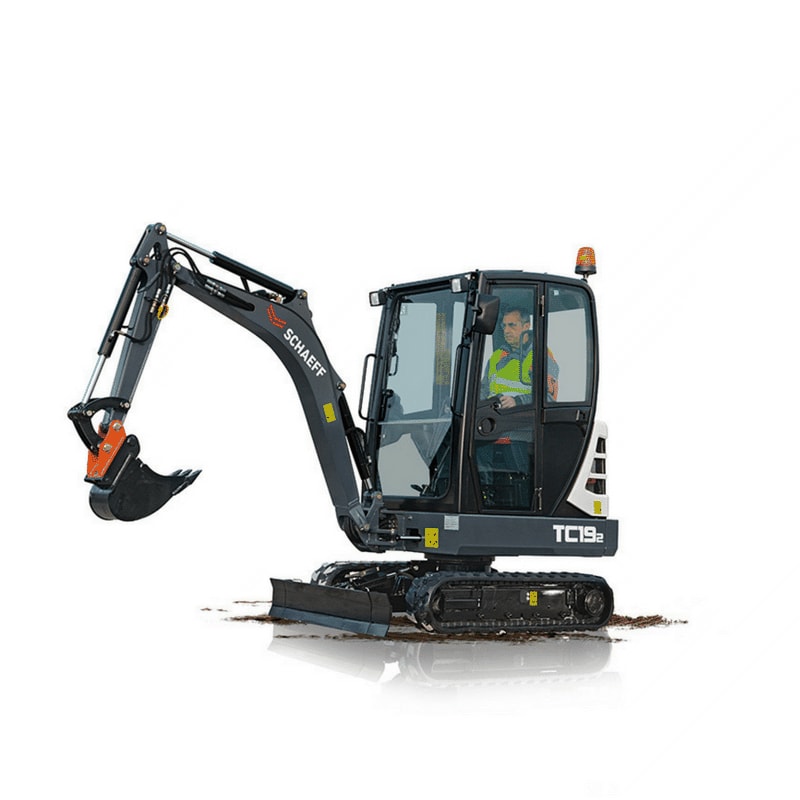

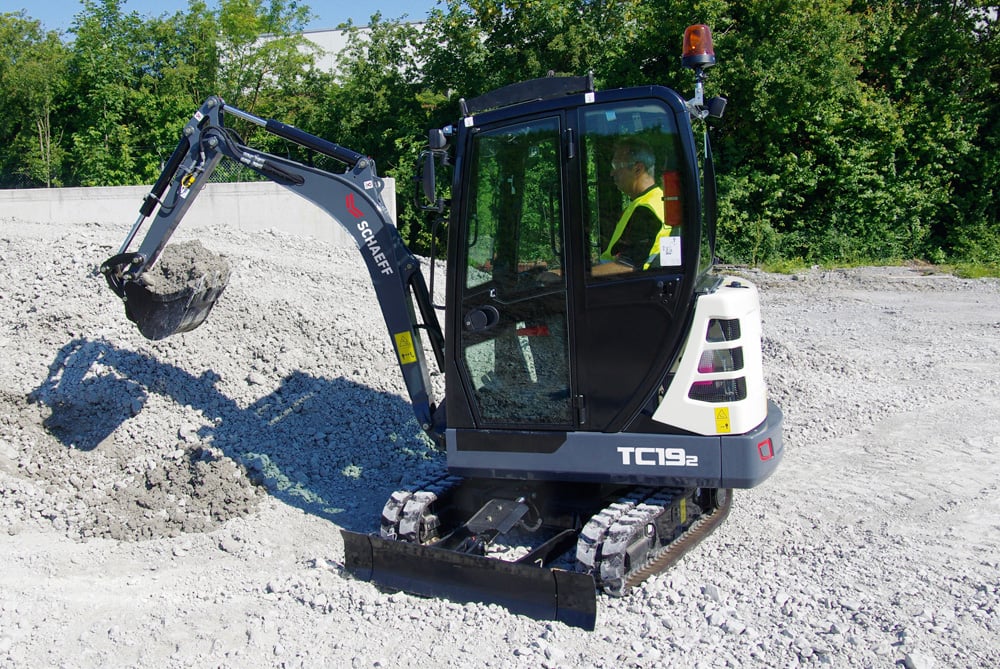

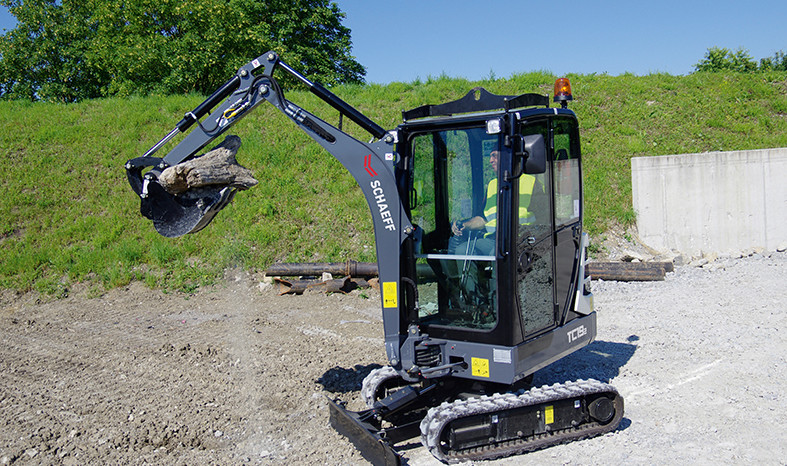

Schaeff TC 19-2 is a mini excavator manufactured from 2017 to 2020. It has a weight of 1.76 tons and a track width of 230 mm. The …

Schaeff TC 19-2 is a mini excavator manufactured from 2017 to 2020. It has a weight of 1.76 tons and a track width of 230 mm. The transport dimensions are 3.65 m in length, 0.99 m in width, and 2.29 m in height. The machine features a tear-out force of 11 kN, a dredging depth of 2.54 m, and a maximum horizontal reach of 4.17 m. The bucket width is 0.3 m with a minimum bucket capacity of 0.026 m³. Special equipment includes a blade, mechanical quick hitch, rubber track, and track adjustment.

TC 19-2

Years of manufacture: 2017—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TC 19-2 Schaeff

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.76 t

Transport length: 3.65 m

Transport width: 0.99 m

Transport height: 2.29 m

Bucket capacity min.: 0.026 m³

Bucket width: 0.3 m

Track width: 230 mm

Driver protection: FD

Max. Reach horizontal: 4.17 m

Dredging depth: 2.54 m

Tear-out force: 11 kN

Model series: 2

Engine manuf.: Kubota

Engine type: D902

Engine power: 12 kW

Displacement: 0.898 l

Revolutions at max torque: 2300 rpm

Max. torque: 52.1/1800 Nm

No. of cylinders: 3

Cylinder bore x stroke: 72x73.6 mm

Emission level: Tier 4 f

More technical details, like: bucket capacity, bucket capacity max., standard tyres, dimension lxwxh are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: Yes
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Download datasheets (PDF)

Schaeff TC 19-2 FAQ

When was the Schaeff TC 19-2 manufactured?

The Schaeff TC 19-2 was manufactured from 2017 to 2020.

How much does the Schaeff TC 19-2 weigh?

The Schaeff TC 19-2 weighs 1.76 tons.

What are the transport dimensions of the Schaeff TC 19-2 mini excavator?

The Schaeff TC 19-2 has a transport length of 3.65 meters, a transport width of 0.99 meters, and a transport height of 2.29 meters.

What is the track width of the Schaeff TC 19-2 mini excavator's undercarriage?

The Schaeff TC 19-2 mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Schaeff TC 19-2 mini excavator?

The Schaeff TC 19-2 mini excavator has a dredging depth of 2.54 meters and a maximum horizontal reach of 4.17 meters.

What is the tear-out force of the Schaeff TC 19-2 mini excavator?

The Schaeff TC 19-2 mini excavator has a tear-out force of 11 kN.

What are the specifications of the primary work tool bucket on the Schaeff TC 19-2 mini excavator?

The Schaeff TC 19-2 mini excavator has a bucket with a minimum capacity of 0.03 cubic meters and a width of 0.3 meters.

What operator safety and support features does the Schaeff TC 19-2 have?

The Schaeff TC 19-2 provides operator safety with a canopy for driver protection.

How much is a Schaeff TC 19-2 Mini excavator (2017u20132020) worth?

The residual value of the Schaeff TC 19-2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Schaeff TC 19-2 overview

Schaeff TC 19-2 features overview

Very simple: the ability to reliably do more.
With these new models mini-excavate you in XL format: High digging forces, functional design, more space. Schaeff offers four models in the 1.5 2.0 tonne segment. From the rental version to high end configuration for demanding job site use. All equipped with high performance genes.
TRADITION MEETS PROGRESS
The Schaeff philosophy of conventional construction, articulated-matik and top mounted cylinders have been retained. A completely new machine has been built around these elements, from high performance brand components to the new driver's cab.

The new XL cab (ROPS/TOPS certified) offers room and comfort like the big ones. For a quick start, the console can be raised for more space to get into the cabin. Footwell provides enough space even on shoe sizes 15 and larger. Generally speaking, the workplace can be individually adjusted to the size of the driver. The large glass area allows optimum visibility over the attachment tools and work environment. For optimal communication on the job site, the right window can be opened up to the ground level.

Engine / Driveline and transmission

Working group with top mounted boom cylinder and hose routing inside Boom for better protection Comfortable and spacious ROPS / TOPS certified cab on common modular operator platform provides good accessibility and visibility Long boom for longer reach than standard Conventional rear swing design for outstanding stability Wide opening engine hood offers good visibility and accessibility of daily service points Performance and weight optimized for performance Bosch Rexroth LUDV (Load Independent Flow Sharing) Hydraulics for strong digging performance and efficiency Schaeff Fingertip controls (optional) Hydraulic Adjustable Untexperience and Blade Norm Automatic Swing Brake for Transport Standard (Transport Safety
TRANSPORT
The automatic swing brake means locking the upper carriage for transport is not to be forgotten.

Hydraulics

ENGINE AND HYDRAULIC SYSTEM
Compared to current competitor models, the mini excavator offers an average of 20 % more working capacity when digging trenches quickly for example. LUDV (Load Independent Flow Sharing) hydraulics are offered by only a few models in this class. Even for extreme terrain, the bucket dig powerfully and is completely filled up.
ERGONOMICS
Special attention has been paid to ergonomics on all models; for example, the blade lever provides an integrated travel speed controller. This feature makes leveling and digging much easier.

Tyres / Tracks

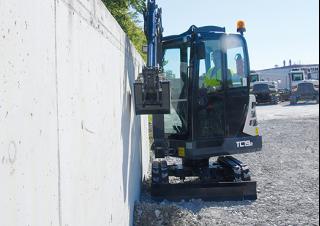

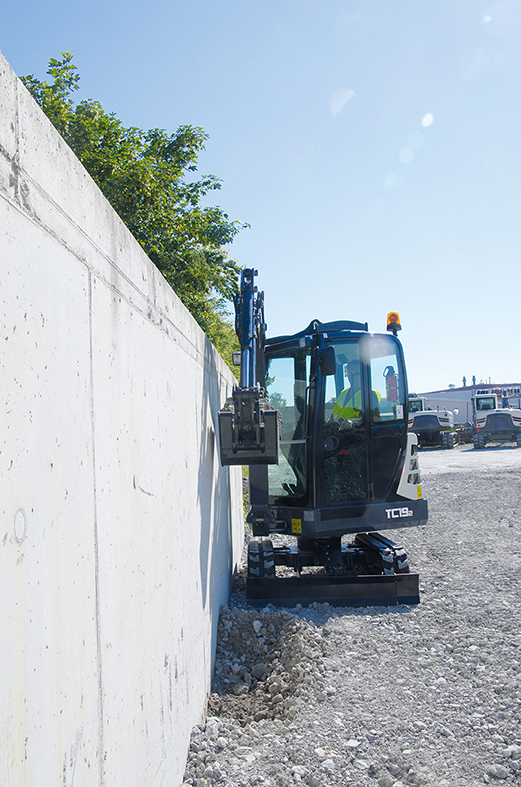

The undercarriage is adjustable from 990 to 1340 mm. This guarantees full mobility on jobsites with narrow passages/gates, and offers exceptional stability in difficult terrain
PAINTING SERVICE – SHOW YOUR COLORS
So one thing matches the other: we're painting with exactly your corporate colors.

Dimensions and weight

Torsion-proof design. Hydraulically undercarriage provided Maintenance-free crawler-type undercarriage. Idler suspension with hydraulic crawler-chain tensioning.
Sliding plate at the top
Range of adjustment	outside edge of crawler chains"	990–1340 mm
Width rubber tracks (short pitch)	230 mm
Total length (undercarriage)	1490 mm
Number of rollers per side	4
Track width	760–1110 mm
Gradeability	max. 60%
Drawbar pull 1st / 2nd speed range	1400 / 780 daN

Total height (top of canopy / cab)	2277 mm / 2295 mm
Total height (travel position)	2673 mm
Total width (undercarriage)	990–1340 mm
Total width of uppercarriage	980 mm
Uppercarriage tail swing	1105 mm
Uppercarriage front swing	1440 mm

180°	2546 mm
360°	2883 mm
Swing clearance	446 mm
Reach max.**	4171 / 4368* mm
Digging depth max.**	2541 /2741* mm
Loading height approx.**	2593 / 2734* mm
Highest reachable height**	3642 / 3772* mm
Bucket rotation angle	191°
Bucket digging force acc. to ISO 6015	18	650 N"
Stick digging force acc. to ISO 6015	11	000 / 9720* N"
Specific ground pressure:
Excavator cpl.	0.29 daN/cm2
* with dipperstick 1150 mm (optional)

1st additional control circuit	rubber tracks	including driver	full fuel tank"	1760 kg
Transport weight: Cab	tank half full	with quick-attach system	w/out bucket"	1715 kg
Transport weight: Canopy	tank half full	with quick-attach system	w/out bucket"	1635 kg
Total length (travel position)	2818 mm
Total length (trailer transport position)	3653 mm

Bucket hinge height		Load radius from center of ring gear
Dipperstick 950 mm		1.5 m	2.0 m	2.5 m	3.0 m	3.5 m
		UR	UE	UR	UE	UR	UE	UR	UE	UR	UE	UR	UE	UR	UE	UR	UE	UR	UE	UR	UE

2.0 m		–	–	–	–	–	–	–	–	0.34	0.34	0.32	0.33	0.35	0.35	0.22	0.33	–	–	–	–
	–	–	–	–	–	–	–	–	0.31	0.31	0.32	0.33	0.33	0.33	0.21	0.33	–	–	–	–
1.0 m		–	–	–	–	0.69	0.69	0.39	0.58	0.49	0.49	0.28	0.41	0.40	0.40	0.21	0.32	0.32	0.32	0.17	024
	–	–	–	–	0.51	0.51	0.38	0.58	0.37	0.37	0.26	0.41	0.29	0.29	0.21	0.30	0.23	0.23	0.16	0.24
0.0 m		–	–	–	–	0.69	0.69	036	0.52	0.50	0.50	0.26	0.38	0.39	0.39	0.20	0.29	0.30	0.30	0.16	0.23
	–	–	–	–	0.51	0.51	0.35	0.52	0.35	0.35	0.25	0.38	0.27	0.27	0.19	0.23	0.23	0.23	0.15	0.23
-0.75 m		–	–	0.50	0.81	0.60	0.60	0.33	0.60	0.45	0.45	0.25	0.45	0.34	0.34	0.21	0.34	–	–	–	–
	–	–	0.48	0.81	0.44	0.44	0.32	0.60	0.33	0.33	0.23	0.45	0.26	0.26	0.21	0.34	–	–	–	–

Bucket hinge height			Load radius from center of ring gear
Dipperstick 1150 mm		1.5 m	2.0 m	2.5 m	3.0 m	3.5 m
		UR	UE	UR	UE	UR	UE	UR	UE	UR	UE	UR	UE	UR	UE	UR	UE	UR	UE	UR	UE
				D
2.0 m		–	–	–	–	–	–	–	–	0.40	0.40	0.30	0.40	0.31	0.31	0.23	0.30	0.30	0.30	0.17	0.30
	–	–	–	–	–	–	–	–	0.39	0.39	0.29	0.40	0.30	0.30	0.23	0.30	0.23	0.23	0.17	0.30
1.0 m		0.87	0.87	0.48	0.84	0.62	0.62	0.40	0.64	0.44	0.44	0.29	0.46	0.36	0.36	0.21	0.37	0.30	0.30	0.17	0.26
	0.63	0.63	0.47	0.84	0.57	0.57	0.39	0.64	0.42	0.42	0.29	0.46	0.27	0.27	0.21	0.37	0.22	0.22	0.17	0.25
0.0 m		0.81	0.81	0.47	0.66	0.67	0.67	0.35	0.54	0.50	0.50	0.26	0.38	0.38	0.38	0.20	0.31	0.30	0.30	0.17	0.25
	0.53	0.53	0.46	0.61	0.42	0.42	0.34	0.52	0.34	0.34	0.26	0.38	0.26	0.26	0.20	0.30	0.21	0.21	0.16	0.24
-0.75 m		0.79	0.79	0.42	0.82	0.60	0.60	0.33	0.62	0.44	0.44	0.26	0.45	0.33	0.33	0.20	0.36	0.23	0.23	0.16	0.24
	0.76	0.76	0.41	0.77	0.44	0.44	0.33	0.61	0.32	0.32	0.26	0.45	0.24	0.24	0.20	0.34	0.23	0.23	0.16	0.24

Other features

SECOND ADDITIONAL CONTROL CIRCUIT
For precise operation of attachment tools, the second auxiliary control circuit is electrically proportionally optional starting from TC16-2 and above. Via a joystick (Schaeff Fingertip Control), the driver exerts a special feature that can normally only be seen on excavators of
SCHAEFF FINGERTIP CONTROL
With the Schaeff Fingertip Control, electrically proportional actuation of hydraulic functions is extremely easy with a thumb wheel on the joystick. This allows the operator to precisely regulate oil flow from zero to full, an advantage when controlling attachments such as clamshell buckets or rocking shovels. Also at the first control circuit and second control circuit left there is also a joystick for the right joystick respectively.
Canopy version
The machines are also available in canopy versions. With safety equipment such as the lockable storage compartment.
ROPS (Roll-Over Protective Structure)
Fuel fill ports in working height, TOPS (TIP-Over Protective Structure)
Additional control circuit up to end of dipperstick
LUDV (Load Independent Flow Sharing) Hydraulics, cab/canopy mounted working flood light, stand and storage options for tools, mobile phone and, weight-dependent adjustable comfort seat, seat belt, hydraulic pilot control with adjustable handrests, cabin heater with disc defroster, front window opening system with throttle damped, wiring for speakers and antenna, radio plug support, battery main switch, 12 V port compartment, side mirrors, accelerator pedals and communications drinks, right window opens wide for optimal ventilation, visibility.
ROPS (Roll-Over Protective Structure)
TOPS (TIP-Over Protective Structure), weight dependent adjustable comfort seat, hydraulic pilot control with adjustable handrests, seat belt, 12 V connection, accelerator pedals, lockable storage space under the driver's seat, stow and bearing options for tools, mobile phone and beverages.

Safety

SCHAEFF KNICKMATIK®
The Schaeff articulated hydraulic system with adjustable articulated boom system is ideal for working along walls or embankments. The overall articulation angle is an impressive 120. The swing cylinder does not project over the track, thus being protected from damage.

With Schaeff-specific design features, damage is avoided right from the start: Because of the upper position of the top mounted cylinder, contact between piston rod and loader edge never exists when loading trucks. The articulatedmatics are deliberately placed on the left so that in case of a collision it is protected against damage. The boom can be pivoted to both sides at fill digging depth.

The hydraulic hoses on the work device are well protected by the boom, or located close to the boom.

Tables

Nominal voltage	12 V
Battery	12 V / 44 Ah
Generator	12 V / 40 A
Starter	1.4 kW
Lighting system:	1 work light front left on the cab / canopy (auxiliary headlamps optional)

Independent of drive train	sensitive control via separate hand lever"
Width x height	1340 x 235 mm
Dozer cut below ground	160 mm
Dozer lift above ground	200 mm
Slope angle	25°

Manufacturer, model	Kubota, D902 Tier 4 final"
Type	3-cylinder diesel engine
Bore x stroke	72 x 73.6 mm
Displacement	898 cm3
Power rating acc. to ISO 14396 @ 2300 rpm	12.0 kW (16.3 HP)
Torque max. @ 1800 rpm	52.1 Nm
Air filter with safety cartridge and maintenance switch

Fuel tank	27 l
Hydraulic system (incl. tank 21 l)	26 l

Pump capacity	max."	30.3 l/min
Working pressure	250 bar
Dual gear pump
Load independent flow distribution (LIFD) for all working movements and travel drive
Simultaneous independent control of all functions
All excavator movements servo-controlled	ISO"
All functions are proportionally controllable
Hydraulic oil cooler
Full flow filtration through return filter
Cylinders for boom	dipper arm and articulation with end position damping at both ends"
Bucket retract function with end-position damping
Safety shutdown activated by exit barrier
Additional control circuit as standard	control via foot pedal"
Additional control circuit with bypass for pressure-reduced return quantity
Hydraulic power to the couplings:
Pump capacity (pressure-controlled)
@ 145 bar	30.3 lpm
@ 210 bar	19 lpm
Max. working pressure	210 bar

Bucket, QAS	250 mm wide, capacity 21 l, 27 kg"
Bucket, QAS	300 mm wide, capacity 26 l, 30 kg"
Bucket, QAS	400 mm wide, capacity 37 l, 35 kg"
Bucket, QAS	500 mm wide, capacity 48 l, 41 kg"
Bucket, QAS	600 mm wide, capacity 59 l, 46 kg"
Ditch-cleaning bucket, QAS	1000 mm wide, capacity 91 l, 79 kg"
Swing bucket, QAS	1000 mm wide, capacity 49 l, 79 kg"
