TC 10 Z Schaeff excavator specs & dimensions (2017 - 2017)

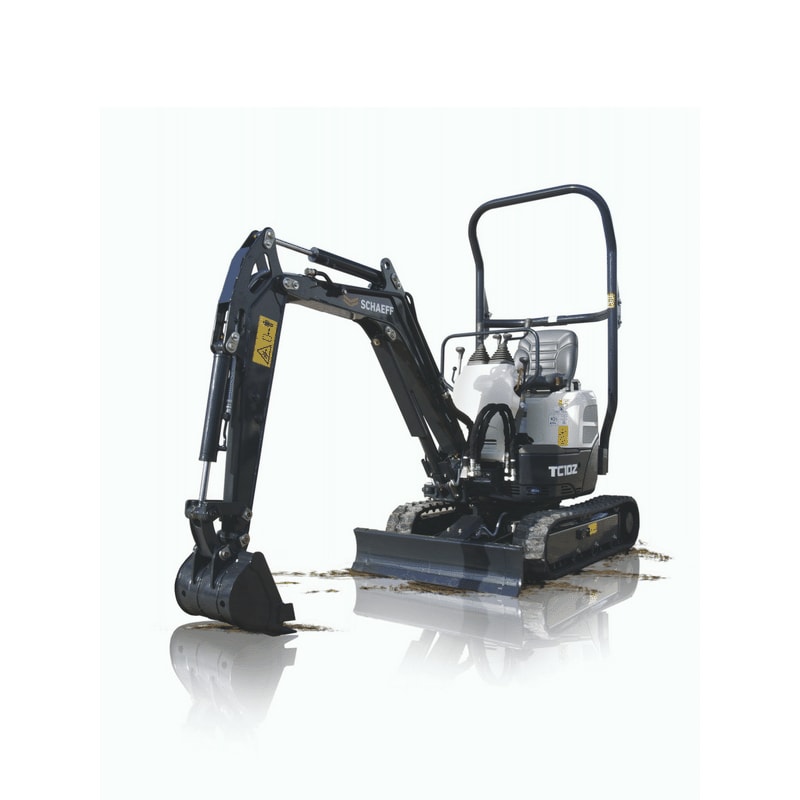

Schaeff TC 10 Z is a Mini Excavator manufactured in 2017, with a weight of 1.16 tons. It features a track width of 180 mm, a trans…

Schaeff TC 10 Z is a Mini Excavator manufactured in 2017, with a weight of 1.16 tons. It features a track width of 180 mm, a transport length of 1.8 meters, a transport width of 0.99 meters, and a transport height of 2.2 meters. The machine has a tear-out force of 7.4 kN, a dredging depth of 1.62 meters, and a maximum horizontal reach of 3.17 meters. The bucket width is 0.25 meters, with a bucket capacity ranging from 0.01 to 0.08 cubic meters. Special equipment includes a blade, mechanical quick hitch, rubber track, and track adjustment.

Mini Excavators Schaeff TC 10 Z

Technical specs - TC 10 Z Schaeff

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.16 t
Transport length
1.8 m
Transport width
0.99 m
Transport height
2.2 m
Bucket capacity min.
0.010 m³
Bucket capacity max.
0.080 m³
Bucket width
0.25 m
Track width
180 mm
Driver protection
FD
Max. Reach horizontal
3.17 m
Dredging depth
1.62 m
Tear-out force
7.4 kN
Model series
Z
Engine manuf.
Yanmar
Engine type
2TNV70
Engine power
7.6 kW
Displacement
0.57 l
Revolutions at max torque
2300 rpm
No. of cylinders
2

More technical details, like: bucket capacity, standard tyres, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
Yes

Download datasheets (PDF)

Schaeff TC 10 Z FAQ

When was the Schaeff TC 10 Z manufactured?

The Schaeff TC 10 Z was manufactured in 2017.

How much does the Schaeff TC 10 Z weigh?

The Schaeff TC 10 Z weighs 1.16 tons.

What are the transport dimensions of the Schaeff TC 10 Z mini excavator?

The Schaeff TC 10 Z has a transport length of 1.8 meters, a transport width of 0.99 meters, and a transport height of 2.2 meters.

What is the track width of the Schaeff TC 10 Z mini excavator?

The Schaeff TC 10 Z mini excavator has a track width of 180 mm.

What are the excavation performance specifications of the Schaeff TC 10 Z mini excavator?

The Schaeff TC 10 Z has a dredging depth of 1.62 meters and a maximum horizontal reach of 3.17 meters.

What are the power ratings of the Schaeff TC 10 Z mini excavator?

The source data does not provide any power ratings for the Schaeff TC 10 Z mini excavator.

What are the bucket specifications of the Schaeff TC 10 Z mini excavator?

The Schaeff TC 10 Z has a bucket width of 0.25 meters, with a maximum capacity of 0.08 cubic meters and a minimum capacity of 0.01 cubic meters.

What operator safety and support features does the Schaeff TC 10 Z have?

The Schaeff TC 10 Z provides operator safety with a canopy for driver protection.

How much is a Schaeff TC 10 Z Mini excavator (2017u20132017) worth?

The residual value of the Schaeff TC 10 Z depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Schaeff TC 10 Z overview

Dimensions and weight

Bucket hinge heightLoad radius from centre of ring gear
Dipperstick 980 mm1.5 m2.0 m2.5 mMax
URUEURUEURUEURUEURUEURUEURUEURUE
2.0 m 1.5 m––––185*185*145185*190*190*120185*185*185*115185*
––––185*185*145185*190*190*120185*185*185*110185*
––––205*205*160205*205*205*12015523023095125
––––205*205*160205*205*205*11515516016090125
1.0 m370*370*255380*270*270*160200240*240*115145230*230*90115
365*365*245380265*265*15520018018011014514514585115
-0.5 m550*550*210305345*345*150195270*270*100145245*245*85110
35535520030523023014519517017010014513013080110
0.0 m600*600*205275385*385*140185305*305*100140260*260*85115
33533520027023023014018517517510013514014080115
-0.5 m615615210260395395135180305*305*105145280*280*90125
33033020026021521513017516516510014015515590125
provided as standard.
Width (outside edge of crawler chains)830 - 1000 mm
Width rubber tracks180 mm
Total length (undercarriage)1440 mm
DOZER BLADE
OPERATING DATA STANDARD EQUIPMENT"
Transport weight (with 2 support members foldable)"1145 kg
Operating weight (with 2 support members foldable) acc. to ISO 6016"1220 kg
Total length (travel position)2270 mm
Total length (trailer transport position)3040 mm
Total height (travel position)2250 mm
Total height (trailer transport position)1420 mm
Total width830 / 1000 mm
Uppercarriage tailswing650 mm
Uppercarriage frontswing1080 mm
Working envelope 180° / 360°1730 / 2160 mm
Ground clearance140 mm
Bucket digging force (ISO 6015)13730 N"
Stick digging force (ISO 6015)5590 N
Ground pressure (rubber crawlers)0.26 daN/cm2
HYDRAULIC SYSTEM
Pumpenfördermenge2 x 11 l/min
Arbeitsdruck210 bar
Arbeitshydraulik: Variable flow dual piston pump for all working movements and travel drive. Simultane- ous independent control of all movements.
Control circuit for work attachments (single or dual-action):
Pump capacity22 ~13 l/min
Max. working pressure210 bar
OPERATOR’S STAND
2 vertical support members foldable ROPS protective frame."
Operator‘s seat with artificial leather covering seat belt."
Instrument panel in front of the operator‘s seat safety bar. Safety lever to lock the machine."main functions of the
Separate pedals for the 3rd circuit (PTO) and boom swing: possibility of combined movements.
Working floodlight mounted on the boom.
Noise emission cab LpA88 dB (A)
Measured in dynamic measuring cycle acc. to EC Directive 2000/14/EC & 2005/88/EG.

Tables

Hydrostatic travel drive fully enclosed."
Travel speed forward and reverse"0-2.1 km/h
Gradeability30 deg. max
Width x height830 / 1000 x 220 mm
Dozer cut below ground230 mm
Dozer lift above ground210 mm
STEERING
Independent, individual control of crawler chains, also counterwise. Sensitive Pedal console serving as foot rest.control via hand levers,"
SWING SYSTEM
Hydrostatic drive also acts as wear-resistant brake. Internally toothed ring"gear.
Bucket, QAS200 mm wide, capacity 10 l"
Tieflöffel, Direktanbau200 mm wide, capacity 10 l"
Bucket, QAS260 mm wide, capacity 15 l"
Tieflöffel, Direktanbau260 mm wide, capacity 15 l"
Bucket, QAS300 mm wide, capacity 18 l"
Tieflöffel, Direktanbau300 mm wide, capacity 18 l"
Bucket, QAS350 mm wide, capacity 21 l"
Tieflöffel, Direktanbau350 mm wide, capacity 21 l"
Bucket, QAS400 mm wide, capacity 25 l"
Tieflöffel, Direktanbau400 mm wide, capacity 25 l"
Bucket, QAS500 mm wide, capacity 32 l"
Tieflöffel, Direktanbau500 mm wide, capacity 32 l"
Ditch-cleaning bucket, QAS700 mm wide, capacity 26 l"
Grabenräumlöffel, Direktanbau700 mm wide, capacity 26 l"
Ditch-cleaning bucket, QAS800 mm wide, capacity 30 l"
Swing bucket, QAS1000 mm wide, capacity 70 l"
Trapezoïdal bucket200 mm wide capacity 80 l"
