SY26U Sany excavator specs & dimensions (2018 - 2021)

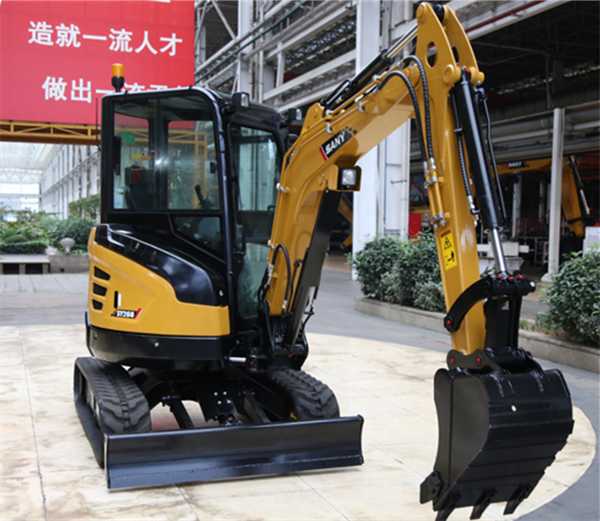

Sany SY26U is a mini excavator manufactured from 2018 to 2021. It has a weight of 2.755 tons and a track width of 300 mm. The tran…

Sany SY26U is a mini excavator manufactured from 2018 to 2021. It has a weight of 2.755 tons and a track width of 300 mm. The transport dimensions are 4.285 meters in length, 1.55 meters in width, and 2.43 meters in height. The machine features a tear-out force of 14.2 kN, a dredging depth of 2.82 meters, and a maximum horizontal reach of 4.85 meters. The bucket capacity is 0.06 cubic meters.

Visit Sany live at

SY26U

Years of manufacture: 2018—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - SY26U Sany

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.755 t

Transport length: 4.285 m

Transport width: 1.55 m

Transport height: 2.43 m

Bucket capacity: 0.06 m³

Track width: 300 mm

Max. Reach horizontal: 4.85 m

Dredging depth: 2.82 m

Tear-out force: 14.2 kN

Model series: SY

Engine manuf.: Yanmar

Engine type: 3TNV80F

Engine power: 14.6 kW

Displacement: 1.267 l

Revolutions at max torque: 2400 rpm

Max. torque: 64.7/1800 Nm

No. of cylinders: 4

Emission level: V

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, driver protection, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: No
Blade: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

SY26U Sany Specification for Europe (EN)

Sany SY26U FAQ

When was the Sany SY26U manufactured?

The Sany SY26U was manufactured from 2018 to 2021.

How much does the Sany SY26U mini excavator weigh?

The Sany SY26U mini excavator weighs 2.76 tons.

What are the transport dimensions of the Sany SY26U mini excavator?

The Sany SY26U mini excavator has a transport length of 4.29 meters, a transport width of 1.55 meters, and a transport height of 2.43 meters.

What is the track width of the Sany SY26U mini excavator's undercarriage?

The Sany SY26U mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the Sany SY26U mini excavator?

The Sany SY26U mini excavator has a dredging depth of 2.82 meters and a maximum horizontal reach of 4.85 meters.

What are the power ratings of the Sany SY26U mini excavator?

The source data does not provide power rating information for the Sany SY26U mini excavator.

What is the bucket capacity of the Sany SY26U mini excavator?

The Sany SY26U mini excavator has a bucket capacity of 0.06 cubic meters.

How much is a Sany SY26U Mini excavator (2018u20132021) worth?

The residual value of the Sany SY26U depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Sany SY26U overview

Dimensions and weight

OPERATING WEIGHT
Operating weight with standard bucket	fully serviced	+75 kg operator (ISO)"
Operating weight (kg)	2755
Ground Pressure (kPa)	26

ITEM	mm
A Transport Length	4285
B Transport Width	1550
C Transport Height	2430
D Blade Height	300
E Standard Track Shoe Width	300
F Track Gauge	1250
G Minimum Ground Clearance	290
H Tail Swing Radius	775
I Center distance of tumblers	1560
J Overall length of crawler	2005
j/k Distance while boom left/right delecxtion	765/540
Counterweight Clearance	555
Boom Length	2100
Arm Length	1300

ITEM	mm
A Max. Digging Height	4410
B Max. Dumping Height	3100
C Max. Digging Depth	2820
D Max. Vertical Digging depth	2760
E Max. Digging Reach	4850
F Min. Swing Radius	2110
G Height at Min. Swing Radius	3200
H Max. Clearance when Blade up	360
I Max. Depth of Blade down	330

Tables

A	MAX	2.0m	3.0m	4.0m
B
4m (kg)	693	584
3m (kg)	540	365			623	470
2m (kg)	493	282			707	459	501	282
1m (kg)	507	256			937	421	717	274
0m (kg)	582	263	1521	715	1095	398	732	267
-1m (kg)	730	316	1807	722	1012	395
-2m (kg)	609	576	883	786

DRIVE
Travel Speed (Low/High) (km/h)	4	5/2	4"
Maximum Travel Force (kN)	20
Gradeability	25°

ENGINE
Model	3TNV80F
Displacement (L)	1	267"
Engine power at rated engine speed (kW/ rpm)	14	6/2400"
Max. Torque (N·m/rpm)	64.7/1800

DIGGING FORCE
Bucket Digging Force (kN)	24	3"
Arm Digging Force (kN)	14	2 Produktionshalle 1"

HYDRAULIC SYSTEM
Type	Load sensitive system
Number of selectable working modes	1
Main pump
Type	Variable-capacity piston pumps
Maximum flow (L/min)	72
Hydraulic motors
Travel	2*axial piston motor with parking brake
Swing	*axial piston motor with swing holding brake
Relief valve setting
Implement circuits (MPa)	24
Travel circuit (MPa)	24
Swing circuit (MPa)	19	6"
Heavy lift circuit (MPa)	24
Pilot circuit (MPa)	3	5"
Hydraulic cylinders
Boom cylinder diameter x stroke (mm)	75×513
Arm cylinder diameter x stroke (mm)	70×493
Bucket cylinder diameter x stroke (mm)	63×481
Blade cylinder diameter x stroke (mm)	85×110

SWING
Swing Speed (rpm)	10

SERVICE REFILL CAPACITIES (L)
Fuel tank	34
Engine coolant	6	5"
Engine oil	3	4"
Swing drive	/Hydrualic self-lubrication
Final drive (each side)	0	7"
Hydraulic oil tank	30

UNDERCARRIAGE
Track shoe width (mm)	300
Number of track shoes (per side)	Rubber crawler
Carrier roller (per side)	1
Track roller (per side)	3
