SY16C Sany excavator specs & dimensions (2018 - 2020)

Sany SY16C is a mini excavator manufactured from 2018 to 2020, with a weight of 1.75 tons. It features a track width of 230 mm, a …

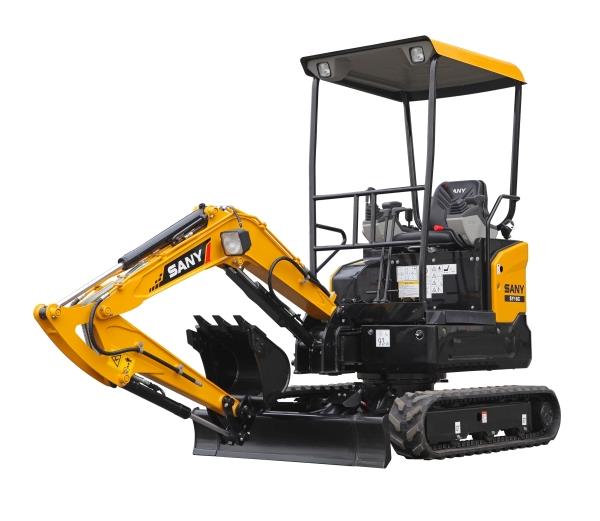

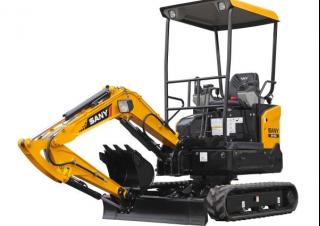

Sany SY16C is a mini excavator manufactured from 2018 to 2020, with a weight of 1.75 tons. It features a track width of 230 mm, a transport length of 3.575 meters, a transport width of 0.98 meters, and a transport height of 2.42 meters. The machine has a tear-out force of 16.6 kN, a dredging depth of 4 meters, and a maximum horizontal reach of 3.665 meters. The bucket capacity is 0.04 cubic meters. Special equipment includes a blade and rubber tracks.

Mini Excavators Sany SY16C

Visit Sany live at

Technical specs - SY16C Sany

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.75 t
Transport length
3.575 m
Transport width
0.98 m
Transport height
2.42 m
Bucket capacity
0.04 m³
Track width
230 mm
Driver protection
FD
Max. Reach horizontal
3.665 m
Dredging depth
4 m
Tear-out force
16.6 kN
Model series
SY
Engine manuf.
Yanmar
Engine type
3TNV74F
Engine power
13.5 kW
Dimension lxwxh
528x429x551 mm
Displacement
0.993 l
Revolutions at max torque
1800 rpm
Max. torque
51.8 Nm
No. of cylinders
3
Cylinder bore x stroke
74x77 mm
Emission level
Tier 4

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sany SY16C FAQ

When was the Sany SY16C manufactured?

The Sany SY16C was manufactured from 2018 to 2020.

How much does the Sany SY16C mini excavator weigh?

The Sany SY16C mini excavator weighs 1.75 tons.

What are the transport dimensions of the Sany SY16C mini excavator?

The Sany SY16C has a transport length of 3.58 meters, a transport width of 0.98 meters, and a transport height of 2.42 meters.

What is the track width of the Sany SY16C?

The Sany SY16C has a track width of 230 mm.

What are the excavation performance specifications of the Sany SY16C mini excavator?

The Sany SY16C mini excavator has a dredging depth of 4 meters and a maximum horizontal reach of 3.665 meters.

What is the tear-out force of the Sany SY16C mini excavator?

The Sany SY16C mini excavator has a tear-out force of 16.6 kN.

What is the bucket capacity of the Sany SY16C mini excavator?

The Sany SY16C mini excavator has a bucket capacity of 0.04 cubic meters.

What operator safety and support features does the Sany SY16C have?

The Sany SY16C provides operator safety with a canopy for driver protection.

How much is a Sany SY16C Mini excavator (2018u20132020) worth?

The residual value of the Sany SY16C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
