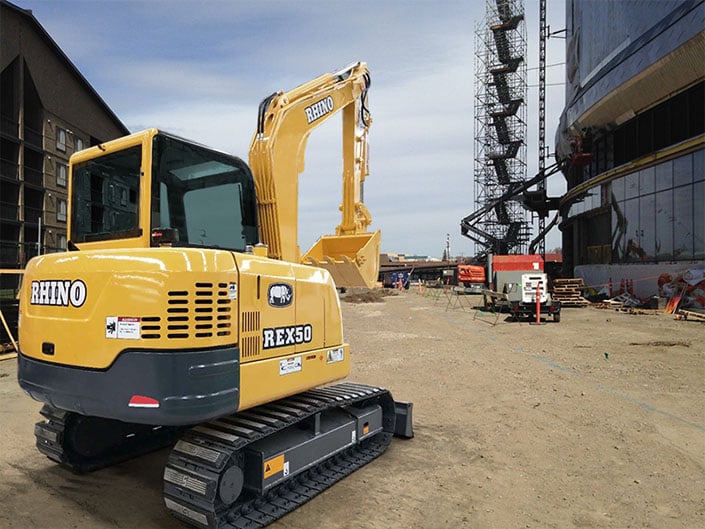

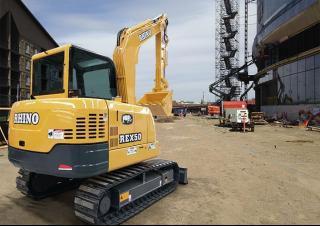

REX50 RHINO excavator specs & dimensions (2017 - 2026)

RHINO REX50 is a Mini Excavator manufactured since 2017, with a weight of 5.71 tons. It features a track width of 400 mm, a transp…

RHINO REX50 is a Mini Excavator manufactured since 2017, with a weight of 5.71 tons. It features a track width of 400 mm, a transport length of 6.035 meters, a transport width of 1.9 meters, and a transport height of 2.57 meters. The machine has a tear-out force of 37.4 kN and a dredging depth of 3.935 meters. The bucket width is 0.775 meters with a capacity of 0.2 cubic meters. Special equipment includes a blade and rubber track.

Mini Excavators RHINO REX50

Technical specs - REX50 RHINO

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.71 t
Transport length
6.035 m
Transport width
1.9 m
Transport height
2.57 m
Bucket capacity
0.2 m³
Bucket width
0.775 m
Track width
400 mm
Driver protection
Kb
Dredging depth
3.935 m
Tear-out force
37.4 kN
Model series
REX

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, max. reach horizontal, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, max. reach horizontal, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

RHINO REX50 FAQ

When was the RHINO REX50 manufactured?

The RHINO REX50 was first produced in 2017.

How much does the RHINO REX50 weigh?

The RHINO REX50 weighs 5.71 tons.

What are the transport dimensions of the RHINO REX50 mini excavator?

The RHINO REX50 has a transport length of 6.04 meters, a transport width of 1.9 meters, and a transport height of 2.57 meters.

What is the track width of the RHINO REX50 mini excavator?

The RHINO REX50 mini excavator has a track width of 400 mm.

What is the dredging depth of the RHINO REX50 mini excavator?

The RHINO REX50 mini excavator has a dredging depth of 3.935 meters.

What is the tear-out force of the RHINO REX50 mini excavator?

The RHINO REX50 mini excavator has a tear-out force of 37.4 kN.

What are the bucket specifications of the RHINO REX50 mini excavator?

The RHINO REX50 mini excavator has a bucket capacity of 0.2 cubic meters and a bucket width of 0.775 meters.

What operator safety features does the RHINO REX50 have?

The RHINO REX50 has a cabin for driver protection.

How much is a RHINO REX50 Mini excavator (2017u20132025) worth?

The residual value of the RHINO REX50 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

RHINO REX50 overview

Hydraulics

OPTIONEN Rhino Excavators can come with various options such as: Tier2, Tier3, Tier4 Engine, Close cab, Rock bucket, Trench bucket, thumb cutter and more depending on work requirements. ATTACHMENTS Rhino Excavators are standard with the hydraulic line for attachments.Rhino Hydraulic Hammer Match: 254SK Many Options Buckets Hydraulic Hammers Trencher Augers u.v.m.

Dimensions and weight

Emissions (optional)Tier 2 (Tier 3 Tier 4)"
Engine Power kw (hp)@2100rpm36.9 (49.5)
Weight kg (lb)5710 (12588)"
Bucket Capacity m30.2
Width of Bucket mm (in)775 (30.5)
Hydraulic Pressure Mpa24.5
Max. Digging Force KN37.4
Gradeability %58
Ground Pressure Kpa34
Speed km/h (mph)5.1 (3.1)
Max. Hauling Force kN44
Swing speed of Platform rpmhts13.5
RANGE OF OPERATION
Max. Digging Height mm (ft)5700 (18.7)"
Max.Digging Depth mm (ft)3935 (12.9)"
Min. Turning Radius mm (in)2670 (105)"
Max. Digging Radius mm (in)6380 (251)"
Max. Dumping Height mm (ft)3380 (11.0)"
Max. Digging Reach mm (ft)6129 (20.1)"
MACHINE DIMENSIONS
A. Overall Length transport mm (ft)6035 (19.7)"
B. Overall Height2570 (8.4)"
C. Overall Width mm (ft)1900 (6.2)"
D. Track Width mm (in)400 (1.3)
E. Undercarriage Length mm (ft)2458 (8.0)"
F. Ground distance mm(ft)360 (1.1)
Width of Platform mm(ft)1810 (5.9)"
Platform ground distance mm(ft)648 (5.9)
Platform tail Turning Radius mm(ft)1660 (5.4)"
