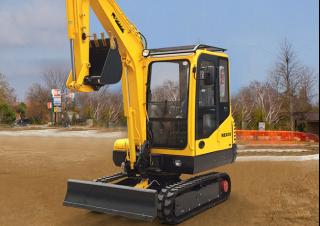

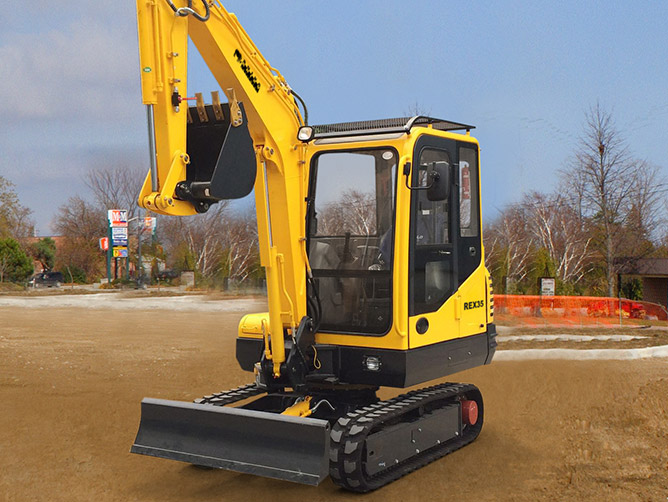

REX35 RHINO excavator specs & dimensions (2017 - 2026)

RHINO REX35 is a Mini Excavator manufactured since 2017, with a weight of 4.2 tons. It features a track width of 350 mm, a transpo…

RHINO REX35 is a Mini Excavator manufactured since 2017, with a weight of 4.2 tons. It features a track width of 350 mm, a transport length of 5.5 meters, a transport width of 1.75 meters, and a transport height of 2.455 meters. The machine has a tear-out force of 23.7 kN, a dredging depth of 3.076 meters, and a maximum horizontal reach of 5.42 meters. The bucket capacity is up to 0.17 cubic meters. Special equipment includes a blade and rubber tracks.

Mini Excavators RHINO REX35

Technical specs - REX35 RHINO

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.2 t
Transport length
5.5 m
Transport width
1.75 m
Transport height
2.455 m
Bucket capacity max.
0.17 m³
Track width
350 mm
Driver protection
Kb
Max. Reach horizontal
5.42 m
Dredging depth
3.076 m
Tear-out force
23.7 kN
Model series
REX

More technical details, like: bucket capacity, bucket capacity min., bucket width, standard tyres, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: bucket capacity, bucket capacity min., bucket width, standard tyres, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

RHINO REX35 FAQ

When was the RHINO REX35 manufactured?

The RHINO REX35 was first produced in 2017.

How much does the RHINO REX35 weigh?

The RHINO REX35 weighs 4.2 tons.

What are the transport dimensions of the RHINO REX35 mini excavator?

The RHINO REX35 has a transport length of 5.5 meters, a transport width of 1.75 meters, and a transport height of 2.46 meters.

What is the track width of the RHINO REX35 mini excavator?

The RHINO REX35 mini excavator has a track width of 350 mm.

What is the excavation performance of the RHINO REX35 mini excavator?

The RHINO REX35 mini excavator has a dredging depth of 3.076 meters and a maximum horizontal reach of 5.42 meters.

What is the tear-out force of the RHINO REX35 mini excavator?

The RHINO REX35 mini excavator has a tear-out force of 23.7 kN.

What is the maximum bucket capacity of the RHINO REX35 mini excavator?

The RHINO REX35 mini excavator has a maximum bucket capacity of 0.17 cubic meters.

What operator safety features does the RHINO REX35 have?

The RHINO REX35 has driver protection in the form of a cabin.

How much is a RHINO REX35 Mini excavator (2017u20132025) worth?

The residual value of the RHINO REX35 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

RHINO REX35 overview

Dimensions and weight

Track
AdjustmentHydraulic
GuidesFront Idler
ChainSealed and lubricated
GROUND PRESSURE
Rubber Track (350mm) (13.8 in) Kpa (psi)36(5.2)
SWING MECHANISM
Speed12 rpm
REFILL CAPACITIES L (gal)
Fuel Tank82(22)
Cooling System5(1)
Engine Oil7.4(2)
Hydraulic Tank90(24)
OPERATING WEIGHTS
With full fuel tank; 79 kg (175lb) operator; 0.17 m3 (0.22 cu. Yd) general purpose bucket; 350 mm (13.8 in) tracks; and 1450 mm (4.8 ft) arm"
Base Weight kg (lb)4200(9259)"
OPERATING DIMENSIONS
Arm Length mm (ft)1450(4.8)"
Arm Digging Force kN (lb)19(4159)"
Bucket Digging Force kN (lb)23.7(5328)"
A. Max. Reach mm (ft)5530(18.1)"
A´. Max. Reach at Ground Level mm (ft)5420(17.8)"
B. Max. Digging Depth mm (ft)3076(10.1)"
C. Max. Cutting Height mm (ft)5030(16.5)"
D. Max. Dumping Height mm (ft)3410(11.2)"
Min. Swing Radius mm (ft)2185(7.2)"
MACHINE DIMENSIONS
A. Overall Length mm (ft)5500(18.0)"
B. Overall Height mm (ft)1861(6.1)"
C. Overall Height to Top of Cab mm (ft)2455(8.1)"
D. Swing Radius mm (ft)1600(5.2)"
E. Length of Track on Ground mm (ft)1710(5.6)"
F. Undercarriage Length mm (ft)2190(7.2)"
G. Counterweight Clearance mm (ft)585(1.9)
H. Upperstructure Width mm (ft)1640(5.4)"
I. Track Width mm (in)350(13.8)
J. Undercarriage Width mm (ft)1750(5.7)"
Min. Ground Clearance mm (in)350(13.8)
Overall Length, Transport mm (ft)3,353(11.0)"

Tables

Cylinders4
Displacement L (cu. In)2.2(134)
Net Power kW (Hp) @2200 rpm"25(34)
Fuel SystemDirect Injection
AspirationNaturally Aspirated
COOLING
Fan DriveBelt driven
POWERTRAIN
Type Dual speedmode for tracks on-dashone-button activation
Maximum Travel Speeds
Low kg (lb)2.7(1.7)
High kg (lb)4.0(2.5)
HYDRAULICS
Type Open center load sensing; two variable-displacement axial-piston pumps"
Pressure Mpa (psi)24.5(3553)"
Max. Flow L/min (gpm) (each)46(12)
Power Boost Mpa (psi)25(3553)"
Control 2 pilot levers low-effort hydraulic controls with horn and boost bottons"
CYLINDERSBore RodDiameterStroke
Boom (2) mm (in)75(3.0)40(1.6)550(21.7)
Arm (1) mm (in)75(3.0)45(1.8)605(23.8)
Bucket (1) mm (in)70(2.8)40(1.6)510(20.1)
ELECTRICAL
Alternator Rating50 A
