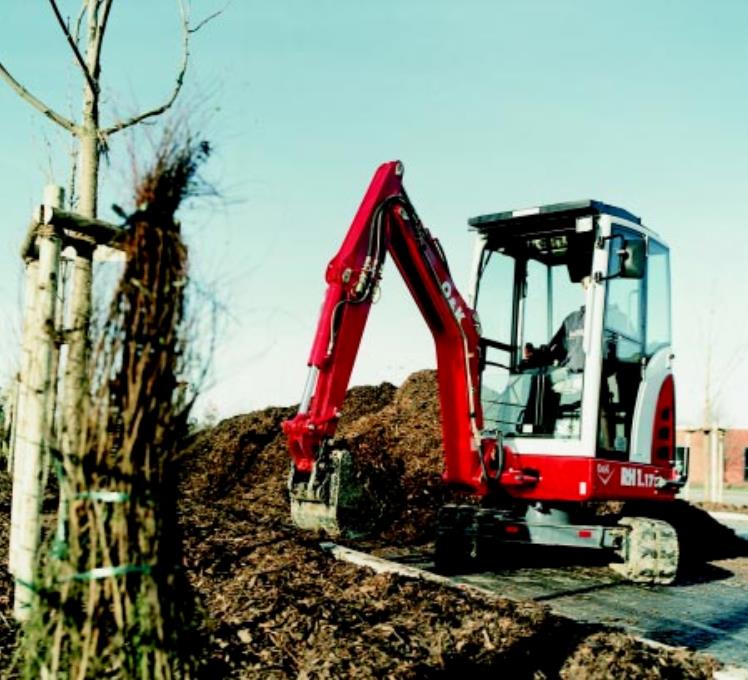

RH 1.48 O&K excavator specs & dimensions (2000 - 2005)

O&K RH 1.48 is a mini excavator manufactured from 2000 to 2005. It has a weight of 4.8 tons and a track width of 400 mm. The trans…

O&K RH 1.48 is a mini excavator manufactured from 2000 to 2005. It has a weight of 4.8 tons and a track width of 400 mm. The transport dimensions are 3.063 meters in length, 1.85 meters in width, and 2.61 meters in height. The bucket capacity ranges from a minimum of 0.075 cubic meters to a maximum of 0.245 cubic meters, with a standard capacity of 0.18 cubic meters.

Mini Excavators O&K RH 1.48

Technical specs - RH 1.48 O&K

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.8 t
Transport length
3.06 m
Transport width
1.85 m
Transport height
2.61 m
Bucket capacity
0.18 m³
Bucket capacity min.
0.08 m³
Bucket capacity max.
0.25 m³
Track width
400 mm
Driver protection
FD
Max. Reach horizontal
5.22 m
Dredging depth
3.7 m
Model series
RH
Engine manuf.
Mitsubishi
Engine type
S4Q2Y162 KL
Engine power
34.6 kW
Displacement
2.505 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket width, standard tyres, tear-out force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

O&K RH 1.48 FAQ

When was the O&K RH 1.48 manufactured?

The O&K RH 1.48 was manufactured from 2000 to 2005.

How much does the O&K RH 1.48 weigh?

The O&K RH 1.48 weighs 4.8 tons.

What are the transport dimensions of the O&K RH 1.48 mini excavator?

The O&K RH 1.48 has a transport length of 3.06 meters, a transport width of 1.85 meters, and a transport height of 2.61 meters.

What is the track width of the O&K RH 1.48 mini excavator?

The O&K RH 1.48 mini excavator has a track width of 400 mm.

What is the excavation performance of the O&K RH 1.48 mini excavator?

The O&K RH 1.48 mini excavator has a dredging depth of 3.7 meters and a maximum horizontal reach of 5.22 meters.

What are the bucket capacity specifications of the O&K RH 1.48 mini excavator?

The O&K RH 1.48 mini excavator has a bucket capacity of 0.18 mu00b3, with a maximum capacity of 0.25 mu00b3 and a minimum capacity of 0.08 mu00b3.

What operator safety and support features does the O&K RH 1.48 have?

The O&K RH 1.48 provides driver protection through a canopy.
