RH 1.29 O&K excavator specs & dimensions (2000 - 2005)

Model rating
9,50 / 10

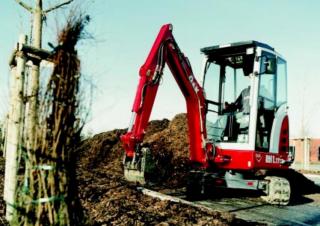

O&K RH 1.29 is a mini excavator manufactured from 2000 to 2005, with a weight of 2.9 tons. It features a track width of 300 mm, a …

O&K RH 1.29 is a mini excavator manufactured from 2000 to 2005, with a weight of 2.9 tons. It features a track width of 300 mm, a transport length of 2.523 meters, a transport width of 1.4 meters, and a transport height of 2.48 meters. The excavator has a maximum horizontal reach of 4.065 meters and a bucket capacity of 0.075 cubic meters.

Mini Excavators O&K RH 1.29

Technical specs - RH 1.29 O&K

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.9 t
Transport length
2.52 m
Transport width
1.4 m
Transport height
2.48 m
Bucket capacity
0.075 m³
Track width
300 mm
Driver protection
FD
Max. Reach horizontal
4.065 m
Dredging depth
2.76 m
Model series
RH
Engine manuf.
Mitsubishi
Engine type
S4L61 KL
Engine power
20.5 kW
Displacement
1.2 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, tear-out force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

O&K RH 1.29 FAQ

When was the O&K RH 1.29 manufactured?

The O&K RH 1.29 was manufactured from 2000 to 2005.

How much does the O&K RH 1.29 mini excavator weigh?

The O&K RH 1.29 mini excavator weighs 2.9 tons.

What are the transport dimensions of the O&K RH 1.29 mini excavator?

The O&K RH 1.29 mini excavator has a transport length of 2.52 meters, a transport width of 1.4 meters, and a transport height of 2.48 meters.

What is the track width of the O&K RH 1.29 mini excavator's undercarriage?

The O&K RH 1.29 mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the O&K RH 1.29 mini excavator?

The O&K RH 1.29 mini excavator has a dredging depth of 2.76 meters and a maximum horizontal reach of 4.065 meters.

What is the bucket capacity of the O&K RH 1.29 mini excavator?

The O&K RH 1.29 mini excavator has a bucket capacity of 0.075 cubic meters.

What operator safety and support features does the O&K RH 1.29 have?

The O&K RH 1.29 is equipped with a canopy for driver protection.
