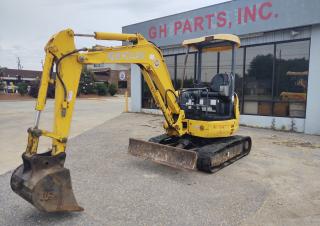

EH30.B New Holland excavator specs & dimensions (2005 - 2026)

New Holland EH30.B is a mini excavator manufactured since 2005, with a weight of 3 tons. It features a track width of 300 mm and h…

New Holland EH30.B is a mini excavator manufactured since 2005, with a weight of 3 tons. It features a track width of 300 mm and has transport dimensions of 4 meters in length, 1 meter in width, and 2 meters in height. The machine provides a tear-out force of 38 kN, a dredging depth of 2 meters, and a maximum horizontal reach of 4 meters. It is equipped with a blade, rubber track, and track adjustment.

Mini Excavators New Holland EH30.B

Technical specs - EH30.B New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.03 t
Transport length
4.39 m
Transport width
1.2 m
Transport height
2.57 m
Bucket capacity
0.09 m³
Bucket width
0.5 m
Track width
300 mm
Driver protection
Ü
Max. Reach horizontal
4.93 m
Dredging depth
2.81 m
Tear-out force
38.5 kN
Engine manuf.
Yanmar
Engine type
3TNV88-PYB
Engine power
21.2 kW
Displacement
1.642 l
No. of cylinders
3

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

New Holland EH30.B FAQ

When was the New Holland EH30.B manufactured?

The New Holland EH30.B was first produced in 2005.

How much does the New Holland EH30.B weigh?

The New Holland EH30.B weighs 3.03 tons.

What are the transport dimensions of the New Holland EH30.B mini excavator?

The New Holland EH30.B has a transport length of 4.39 meters, a transport width of 1.2 meters, and a transport height of 2.57 meters.

What is the track width of the New Holland EH30.B mini excavator's undercarriage?

The New Holland EH30.B mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the New Holland EH30.B mini excavator?

The New Holland EH30.B mini excavator has a dredging depth of 2.81 meters and a maximum horizontal reach of 4.93 meters.

What are the power ratings of the New Holland EH30.B mini excavator?

There are no power rating specifications available for the New Holland EH30.B mini excavator in the provided data.

What are the bucket specifications of the New Holland EH30.B mini excavator?

The New Holland EH30.B mini excavator has a bucket capacity of 0.09 cubic meters and a bucket width of 0.5 meters.

What operator safety and support features does the New Holland EH30.B have?

The New Holland EH30.B is equipped with a roll-over bar for driver protection.

How much is a New Holland EH30.B Mini excavator (2005u20132025) worth?

The residual value of the New Holland EH30.B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

New Holland EH30.B overview

Engine / Driveline and transmission

INFORMATION ON DISPLAY Indicators
Engine oil pressure, fuel level gauge, hour blade - visible from ground level, water temperature
Warning lights
water temperature, air filter, water separator detection, low fuel, glow plug indicator, battery charge.

Hydraulics

Light-touch, low-effort controls
Control pattern selector SAE or ISO, Responsive for delicate work, Exclusive boom center wing hand control, Auxiliary hydraulics Hand controls, Easy to reach dozer blade control handle

Other features

OPERATOR COMFORT IS NOT AN OPTION, BUT STANDARD.
With outstanding visibility and easy-to-use controls, operators remain comfortable and productive.
More spacious and comfortable
20% larger operator platform offers more legroom, three-post design provides 40% wider access to the platform for easy entry and exit.
Comfortable seating
Upholstered seat adjusts to each operator, standard armrests, Extended seat slide.

The wider cab and windshield give you an excellent view of the trench and surrounding work area. Heating is standard. Air conditioning is one option. The larger platform and broader threshold make it easy to get in and out.
