E55B New Holland excavator specs & dimensions (2012 - 2015)

New Holland E55B is a mini excavator manufactured from 2012 to 2015, with a weight of 5.5 t. It features a track width of 400 mm, …

New Holland E55B is a mini excavator manufactured from 2012 to 2015, with a weight of 5.5 t. It features a track width of 400 mm, a transport length of 5.23 m, a transport width of 1.96 m, and a transport height of 2.7 m. The machine has a tear-out force of 36 kN, a dredging depth of 3.9 m, and a maximum horizontal reach of 5.38 m. The bucket capacity is up to 0.18 m³. Special equipment includes a blade and rubber track.

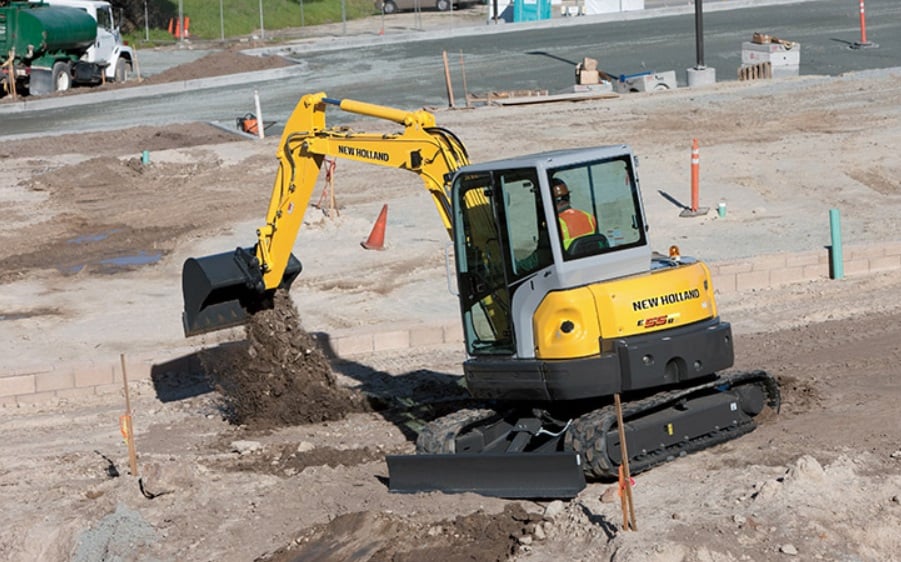

Mini Excavators New Holland E55B
Mini Excavators New Holland E55B
Mini Excavators New Holland E55B
Mini Excavators New Holland E55B

Technical specs - E55B New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.5 t
Transport length
5.23 m
Transport width
1.96 m
Transport height
2.7 m
Bucket capacity max.
0.18 m³
Track width
400 mm
Driver protection
Kb
Max. Reach horizontal
5.38 m
Dredging depth
3.9 m
Tear-out force
36 kN
Model series
E
Engine manuf.
Yanmar
Engine type
4TNV88XYB
Engine power
58 kW
Displacement
2.19 l
Revolutions at max torque
2400 rpm

More technical details, like: bucket capacity, bucket capacity min., bucket width, standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

New Holland E55B FAQ

When was the New Holland E55B manufactured?

The New Holland E55B was manufactured from 2012 to 2015.

How much does the New Holland E55B weigh?

The New Holland E55B weighs 5.5 tons.

What are the transport dimensions of the New Holland E55B mini excavator?

The New Holland E55B has a transport length of 5.23 meters, a transport width of 1.96 meters, and a transport height of 2.7 meters.

What is the track width of the New Holland E55B mini excavator?

The New Holland E55B mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the New Holland E55B mini excavator?

The New Holland E55B mini excavator has a dredging depth of 3.9 meters and a maximum horizontal reach of 5.38 meters.

What is the tear-out force rating of the New Holland E55B mini excavator?

The New Holland E55B mini excavator has a tear-out force rating of 36 kN.

What is the maximum bucket capacity of the New Holland E55B mini excavator?

The New Holland E55B mini excavator has a maximum bucket capacity of 0.18 cubic meters.

What operator safety and support features does the New Holland E55B have?

The New Holland E55B provides operator safety through a protective cabin.

How much is a New Holland E55B Mini excavator (2012u20132015) worth?

The residual value of the New Holland E55B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
