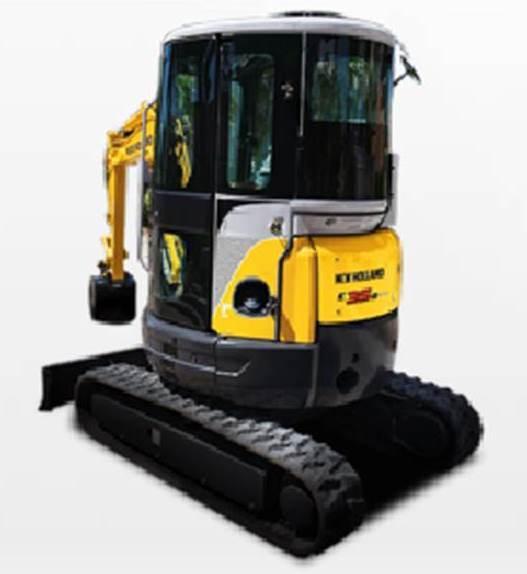

E35B SR New Holland excavator specs & dimensions (2011 - 2015)

New Holland E35B SR is a mini excavator manufactured from 2011 to 2015. It has a weight of 3.34 tons and a track width of 300 mm. …

New Holland E35B SR is a mini excavator manufactured from 2011 to 2015. It has a weight of 3.34 tons and a track width of 300 mm. The transport dimensions are 4.39 meters in length, 1.55 meters in width, and 2.57 meters in height. The tear-out force is 28 kN, and the bucket capacity ranges from 0.05 m³ to 0.12 m³.

Mini Excavators New Holland E35B SR

Technical specs - E35B SR New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.34 t
Transport length
4.39 m
Transport width
1.55 m
Transport height
2.57 m
Bucket capacity min.
0.05 m³
Bucket capacity max.
0.12 m³
Track width
300 mm
Driver protection
Kb
Max. Reach horizontal
4.96 m
Dredging depth
3.1 m
Tear-out force
28 kN
Model series
E

More technical details, like: bucket capacity, bucket width, standard tyres, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

New Holland E35B SR FAQ

When was the New Holland E35B SR manufactured?

The New Holland E35B SR was manufactured from 2011 to 2015.

How much does the New Holland E35B SR weigh?

The New Holland E35B SR weighs 3.34 tons.

What are the transport dimensions of the New Holland E35B SR mini excavator?

The New Holland E35B SR has a transport length of 4.39 meters, a transport width of 1.55 meters, and a transport height of 2.57 meters.

What is the track width of the New Holland E35B SR mini excavator's undercarriage?

The New Holland E35B SR mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the New Holland E35B SR mini excavator?

The New Holland E35B SR has a dredging depth of 3.1 meters and a maximum horizontal reach of 4.96 meters.

What is the tear-out force of the New Holland E35B SR?

The New Holland E35B SR has a tear-out force of 28 kN.

What are the bucket capacity specifications of the New Holland E35B SR mini excavator?

The New Holland E35B SR mini excavator has a bucket capacity ranging from 0.05 to 0.12 cubic meters.

What operator safety and support features does the New Holland E35B SR have?

The New Holland E35B SR has a cabin for driver protection.

How much is a New Holland E35B SR Mini excavator (2011u20132015) worth?

The residual value of the New Holland E35B SR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
