803 Neuson excavator specs & dimensions (2006 - 2008)

Neuson 803 is a Mini Excavator manufactured from 2006 to 2008. It has a weight of 0.9 tons and a track width of 180 mm. The transp…

Neuson 803 is a Mini Excavator manufactured from 2006 to 2008. It has a weight of 0.9 tons and a track width of 180 mm. The transport dimensions are 2.746 meters in length, 0.7 meters in width, and 1.507 meters in height. The dredging depth is 1.731 meters, and the maximum horizontal reach is 3.074 meters. The bucket capacity is 0.08 cubic meters. Special equipment includes a blade, rubber track, and track adjustment.

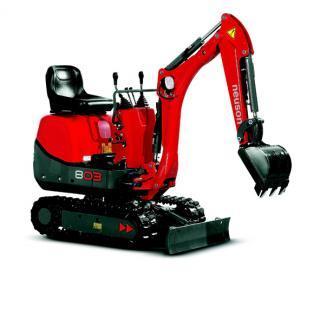

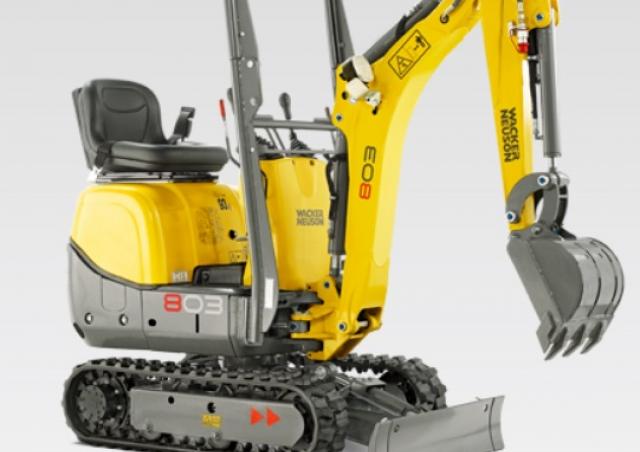

Mini Excavators Neuson 803
Mini Excavators Neuson 803
Mini Excavators Neuson 803
Mini Excavators Neuson 803

Technical specs - 803 Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
0.9 t
Transport length
2.746 m
Transport width
0.7 m
Transport height
1.507 m
Bucket capacity
0.08 m³
Track width
180 mm
Driver protection
Ü
Max. Reach horizontal
3.074 m
Dredging depth
1.731 m
Tear-out force
4.5 kN
Engine manuf.
Yanmar
Engine type
3TNV70
Engine power
13.7 kW
Displacement
0.854 l
Revolutions at max torque
2100 rpm
No. of cylinders
3

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Neuson 803 FAQ

When was the Neuson 803 manufactured?

The Neuson 803 was manufactured from 2006 to 2008.

How much does the Neuson 803 mini excavator weigh?

The Neuson 803 mini excavator weighs 0.9 tons.

What are the transport dimensions of the Neuson 803 mini excavator?

The Neuson 803 has a transport length of 2.75 meters, a transport width of 0.7 meters, and a transport height of 1.51 meters.

What is the track width of the Neuson 803 mini excavator?

The Neuson 803 mini excavator has a track width of 180 mm.

What are the excavation performance specifications of the Neuson 803 mini excavator?

The Neuson 803 mini excavator has a dredging depth of 1.731 meters and a maximum horizontal reach of 3.074 meters.

What is the tear-out force of the Neuson 803 mini excavator?

The Neuson 803 mini excavator has a tear-out force of 4.5 kN.

What is the bucket capacity of the Neuson 803 mini excavator?

The Neuson 803 mini excavator has a bucket capacity of 0.08 cubic meters.

What operator safety and support features does the Neuson 803 have?

The Neuson 803 is equipped with a roll-over bar for driver protection.

How much is a Neuson 803 Mini excavator (2006u20132008) worth?

The residual value of the Neuson 803 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Neuson 803 overview

Hydraulics

803 Compact Excavators < 6 t
803 A small giant. The 803 is the smallest Wacker Neuson excavator but what it lacks in size, it makes itself into force. Its compact size with only 700 mm width makes it ideal for demolition and renovation work within buildings. Rubber rails do not damage soils and can easily travel through interior doors. Hydraulic functionality has been given special attention. Standard auxiliary hydraulics enable operation of various hydraulic attachments such as the perfectly matched Wacker Neuson hydraulic hammer. A truly professional performance:The proven 3-cylinder diesel engine is a veritable power plant; efficient, economical and reliable. One-time auxiliary hydraulics are standard features: Ideal to operate the perfectly fitting Wacker Neuson hydraulic hammer. The folding dozer blade always remains connected to the machine and never loses itself. The extended hydraulic telescopic housing with an outside width of 860 mm gives added stability. It can be returned to a width of 700 mm in quick turn at hand. Extremely robust design. wackerneuson.com 23.02.2013 Page: 1 / 3

Dimensions and weight

Duty pump2 gear pumps
Flow rate228 l/min"
Operating pressure for working and traction hydraulics170 bar
Operating pressure Slewing gear70 bar
RPM / speed Superstructure8 rpm
Hydraulic oil tank14 l

Tables

Engine / Motor manufacturerYanmar
Engine / Motor type3TNV70
Engine / MotorWater-cooled 3-cylinder diesel engine
Displacement854 cm³
RPM / speed2.100 rpm
Engine performance acc. to ISO96 kW"
Battery20 Ah
Tank capacity10 l
Travel speed18 km/h"
Gradeability58 %
Chain width180 mm
Ground clearance127 mm
