NR 6.0 K Neumeier excavator specs & dimensions (2006 - 2020)

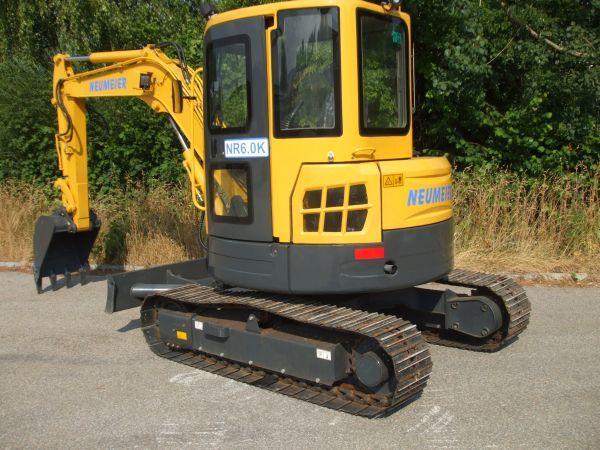

Neumeier NR 6.0 K is a mini excavator manufactured since 2006. It has a weight of 5.75 tons and a track width of 2000 mm. The tran…

Neumeier NR 6.0 K is a mini excavator manufactured since 2006. It has a weight of 5.75 tons and a track width of 2000 mm. The transport dimensions are 6 meters in length, 2 meters in width, and 2.72 meters in height. The tear-out force is 44 kN, and the bucket capacity is 0.2 m³. Special equipment includes air conditioning, a blade, and a rubber track.

Mini Excavators Neumeier NR 6.0 K
Mini Excavators Neumeier NR 6.0 K
Mini Excavators Neumeier NR 6.0 K
Mini Excavators Neumeier NR 6.0 K
Mini Excavators Neumeier NR 6.0 K
Mini Excavators Neumeier NR 6.0 K
Mini Excavators Neumeier NR 6.0 K
Mini Excavators Neumeier NR 6.0 K

Technical specs - NR 6.0 K Neumeier

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.75 t
Transport length
6 m
Transport width
2 m
Transport height
2.72 m
Bucket capacity
0.2 m³
Track width
2000 mm
Standard tyres
400
Driver protection
Kb
Max. Reach horizontal
6.37 m
Dredging depth
3.79 m
Tear-out force
44 kN
Model series
NR
Engine manuf.
Yanmar
Engine type
4TNV94L
Engine power
36 kW
Displacement
3.01 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity min., bucket capacity max., bucket width, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Neumeier NR 6.0 K FAQ

When was the Neumeier NR 6.0 K manufactured?

The Neumeier NR 6.0 K was first produced in 2006.

How much does the Neumeier NR 6.0 K weigh?

The Neumeier NR 6.0 K weighs 5.75 tons.

What are the transport dimensions of the Neumeier NR 6.0 K mini excavator?

The Neumeier NR 6.0 K has a transport length of 6 meters, a transport width of 2 meters, and a transport height of 2.72 meters.

What are the undercarriage specifications, including tyre size and track width, of the Neumeier NR 6.0 K mini excavator?

The Neumeier NR 6.0 K mini excavator has standard tyres with a size of 400 and a track width of 2000 mm.

What are the excavation performance specifications of the Neumeier NR 6.0 K mini excavator?

The Neumeier NR 6.0 K mini excavator has a dredging depth of 3.79 meters and a maximum horizontal reach of 6.37 meters.

What is the tear-out force of the Neumeier NR 6.0 K mini excavator?

The Neumeier NR 6.0 K mini excavator has a tear-out force of 44 kN.

What is the bucket capacity of the Neumeier NR 6.0 K mini excavator?

The Neumeier NR 6.0 K mini excavator has a bucket capacity of 0.2 cubic meters.

What operator safety feature does the Neumeier NR 6.0 K have?

The Neumeier NR 6.0 K has a cabin for driver protection.
