NR 1.5 Neumeier excavator specs & dimensions (2015 - 2020)

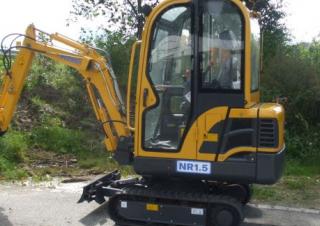

Neumeier NR 1.5 is a mini excavator manufactured since 2015. It has a weight of 1.7 tons and a track width of 230 mm. The transpor…

Neumeier NR 1.5 is a mini excavator manufactured since 2015. It has a weight of 1.7 tons and a track width of 230 mm. The transport dimensions are 3.6 meters in length, 0.98 meters in width, and 2.28 meters in height. The bucket capacity is 0.07 cubic meters. Special equipment includes a blade and rubber track.

Mini Excavators Neumeier NR 1.5

Technical specs - NR 1.5 Neumeier

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.7 t
Transport length
3.6 m
Transport width
0.98 m
Transport height
2.28 m
Bucket capacity
0.07 m³
Track width
230 mm
Driver protection
Kb
Max. Reach horizontal
3.7 m
Dredging depth
2.05 m
Tear-out force
11.6 kN
Model series
NR
Engine manuf.
Perkins
Engine type
403C
Engine power
14.7 kW
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Neumeier NR 1.5 FAQ

When was the Neumeier NR 1.5 manufactured?

The Neumeier NR 1.5 was first produced in 2015.

How much does the Neumeier NR 1.5 weigh?

The Neumeier NR 1.5 weighs 1.7 tons.

What are the transport dimensions of the Neumeier NR 1.5 mini excavator?

The Neumeier NR 1.5 has a transport length of 3.6 meters, a transport width of 0.98 meters, and a transport height of 2.28 meters.

What is the track width of the Neumeier NR 1.5 mini excavator?

The Neumeier NR 1.5 mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Neumeier NR 1.5 mini excavator?

The Neumeier NR 1.5 mini excavator has a dredging depth of 2.05 meters and a maximum horizontal reach of 3.7 meters.

What is the tear-out force of the Neumeier NR 1.5 mini excavator?

The Neumeier NR 1.5 mini excavator has a tear-out force of 11.6 kN.

What is the bucket capacity of the Neumeier NR 1.5 mini excavator?

The Neumeier NR 1.5 mini excavator has a bucket capacity of 0.07 cubic meters.

What operator safety features does the Neumeier NR 1.5 have?

The Neumeier NR 1.5 provides operator safety through a protective cabin.

How much is a Neumeier NR 1.5 Mini excavator (2015u20132025) worth?

The residual value of the Neumeier NR 1.5 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
