NT28U Nante excavator specs & dimensions (2017 - 2020)

Nante NT28U is a mini excavator manufactured from 2017 to 2020. It has a weight of 3.2 tons and a track width of 300 mm. The trans…

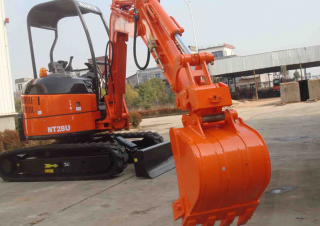

Nante NT28U is a mini excavator manufactured from 2017 to 2020. It has a weight of 3.2 tons and a track width of 300 mm. The transport dimensions are 4.46 meters in length, 2.685 meters in width, and 1.55 meters in height. The machine features a tear-out force of 17.8 kN, a dredging depth of 2.706 meters, and a maximum horizontal reach of 4.642 meters. The bucket capacity is 0.1 cubic meters, and it comes equipped with a blade.

Mini Excavators Nante NT28U

Technical specs - NT28U Nante

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.2 t
Transport length
4.46 m
Transport width
2.685 m
Transport height
1.55 m
Bucket capacity
0.1 m³
Track width
300 mm
Driver protection
FD/Kb
Max. Reach horizontal
4.642 m
Dredging depth
2.706 m
Tear-out force
17.8 kN
Engine manuf.
Kohler
Engine type
KDI2504
Engine power
48 kW
Max. torque
305/1500 Nm
No. of cylinders
4

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, displacement, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Nante NT28U FAQ

When was the Nante NT28U manufactured?

The Nante NT28U was manufactured from 2017 to 2020.

How much does the Nante NT28U mini excavator weigh?

The Nante NT28U mini excavator weighs 3.2 tons.

What are the transport dimensions of the Nante NT28U mini excavator?

The Nante NT28U has a transport length of 4.46 meters, a transport width of 2.69 meters, and a transport height of 1.55 meters.

What is the track width of the Nante NT28U mini excavator?

The Nante NT28U mini excavator has a track width of 300 mm.

What is the excavation performance of the Nante NT28U mini excavator?

The Nante NT28U mini excavator has a dredging depth of 2.706 meters and a maximum horizontal reach of 4.642 meters.

What is the tear-out force of the Nante NT28U mini excavator?

The Nante NT28U mini excavator has a tear-out force of 17.8 kN.

What is the bucket capacity of the Nante NT28U mini excavator?

The Nante NT28U mini excavator has a bucket capacity of 0.1 cubic meters.

What operator safety and support features does the Nante NT28U offer?

The Nante NT28U provides operator safety with driver protection features including a canopy and a cabin.
