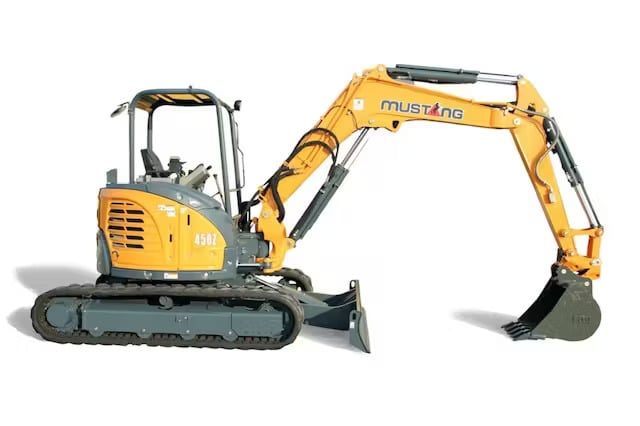

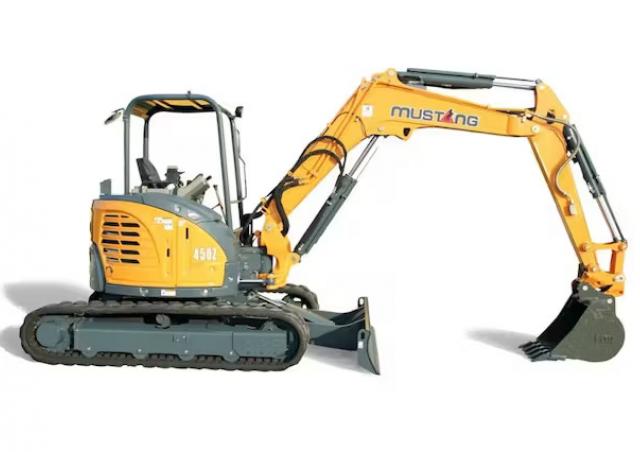

450Z Mustang excavator specs & dimensions (2012 - 2018)

Mustang 450Z is a mini excavator manufactured from 2012 to 2018. It has a weight of 4 tons and a track width of 350 mm. The transp…

Mustang 450Z is a mini excavator manufactured from 2012 to 2018. It has a weight of 4 tons and a track width of 350 mm. The transport dimensions are 5 meters in length, 1 meter in width, and 2 meters in height. The machine features a tear-out force of 29 kN, a dredging depth of 3 meters, and a maximum horizontal reach of 5 meters. Special equipment includes air conditioning, a blade, and rubber tracks.

Mini Excavators Mustang 450Z

Technical specs - 450Z Mustang

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.79 t
Transport length
5.26 m
Transport width
1.95 m
Transport height
2.62 m
Track width
350 mm
Driver protection
Ü
Max. Reach horizontal
5.75 m
Dredging depth
3.68 m
Tear-out force
29.91 kN
Engine manuf.
Yanmar
Engine type
4TNV88-BXBV
Engine power
29.5 kW
Displacement
2.19 l
Emission level
Tier IV

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Mustang 450Z FAQ

When was the Mustang 450Z manufactured?

The Mustang 450Z was manufactured from 2012 to 2018.

How much does the Mustang 450Z weigh?

The Mustang 450Z weighs 4.79 tons.

What are the transport dimensions of the Mustang 450Z mini excavator?

The Mustang 450Z has a transport length of 5.26 meters, a transport width of 1.95 meters, and a transport height of 2.62 meters.

What is the track width of the Mustang 450Z mini excavator?

The Mustang 450Z mini excavator has a track width of 350 mm.

What are the excavation performance specifications of the Mustang 450Z mini excavator?

The Mustang 450Z mini excavator has a dredging depth of 3.68 meters and a maximum horizontal reach of 5.75 meters.

What is the tear-out force of the Mustang 450Z mini excavator?

The Mustang 450Z mini excavator has a tear-out force of 29.91 kN.

What operator safety features does the Mustang 450Z have?

The Mustang 450Z is equipped with a roll-over bar for driver protection.
