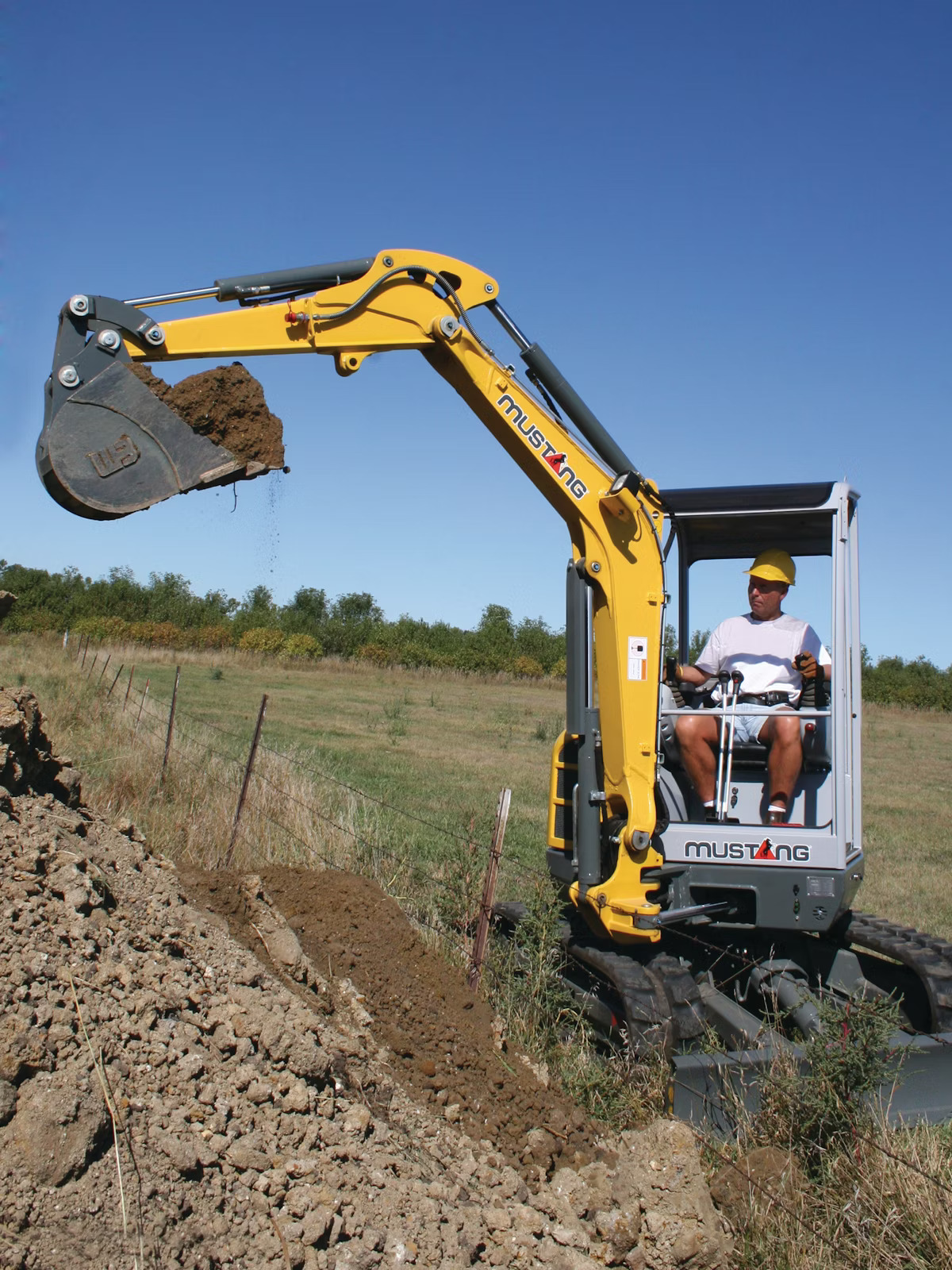

2803ZT Mustang excavator specs & dimensions (2008 - 2025)

Mustang 2803ZT is a mini excavator manufactured since 2008, weighing 2 tons. It features a track width of 305 mm, a transport leng…

Mustang 2803ZT is a mini excavator manufactured since 2008, weighing 2 tons. It features a track width of 305 mm, a transport length of 4.255 meters, a transport width of 1 meter, and a transport height of 2.408 meters. The machine has a tear-out force of 25 kN, a dredging depth of 2.744 meters, and a maximum horizontal reach of 4.681 meters. The bucket width is 1 meter, and it comes equipped with a blade and rubber tracks.

Mini Excavators Mustang 2803ZT

Technical specs - 2803ZT Mustang

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.67 t
Transport length
4.26 m
Transport width
1.57 m
Transport height
2.41 m
Bucket width
1.57 m
Track width
305 mm
Driver protection
Kb
Max. Reach horizontal
4.681 m
Dredging depth
2.744 m
Tear-out force
25.7 kN
Engine manuf.
Yanmar
Engine type
3TNV88-PNS
Engine power
18 kW
Displacement
1114 l
No. of cylinders
3
Emission level
Tier III

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., standard tyres, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Mustang 2803ZT FAQ

When was the Mustang 2803ZT manufactured?

The Mustang 2803ZT was first produced in 2008.

How much does the Mustang 2803ZT mini excavator weigh?

The Mustang 2803ZT mini excavator weighs 2.67 tons.

What are the transport dimensions of the Mustang 2803ZT mini excavator?

The Mustang 2803ZT has a transport length of 4.26 meters, a transport width of 1.57 meters, and a transport height of 2.41 meters.

What is the track width of the Mustang 2803ZT mini excavator?

The Mustang 2803ZT mini excavator has a track width of 305 mm.

What is the excavation performance of the Mustang 2803ZT mini excavator?

The Mustang 2803ZT mini excavator has a dredging depth of 2.744 meters and a maximum horizontal reach of 4.681 meters.

What is the tear-out force of the Mustang 2803ZT mini excavator, given that no power rating data is available?

The Mustang 2803ZT mini excavator has a tear-out force of 25.7 kN. No power rating data is provided for this model.

What is the bucket width of the Mustang 2803ZT mini excavator?

The Mustang 2803ZT mini excavator has a bucket width of 1.57 meters.

What driver protection feature does the Mustang 2803ZT have?

The Mustang 2803ZT has a cabin for driver protection.
