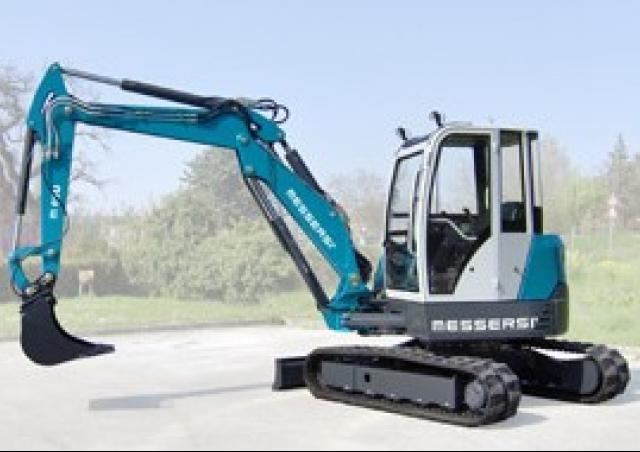

M60U Messersi excavator specs & dimensions (2021 - 2026)

Messersi M60U is a Mini Excavator manufactured since 2021, with a weight of 5.75 tons. It features a track width of 400 mm, a tran…

Messersi M60U is a Mini Excavator manufactured since 2021, with a weight of 5.75 tons. It features a track width of 400 mm, a transport length of 5.24 meters, a transport width of 2.07 meters, and a transport height of 2.6 meters. The machine has a tear-out force of 39.7 kN, a dredging depth of 3.743 meters, and a maximum horizontal reach of 6.58 meters. The bucket width is 0.6 meters with a capacity of 0.157 cubic meters. Special equipment includes air conditioning, a blade, hydraulic quick hitch, mechanical quick hitch, and rubber tracks.

Mini Excavators Messersi M60U

Technical specs - M60U Messersi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.75 t
Transport length
5.24 m
Transport width
2.07 m
Transport height
2.6 m
Bucket capacity
0.157 m³
Bucket width
0.6 m
Track width
400 mm
Max. Reach horizontal
6.58 m
Dredging depth
3.743 m
Tear-out force
39.7 kN
Model series
M
Engine manuf.
Kubota
Engine type
V2403M-T
Engine power
44 kW
Displacement
2.434 l
Revolutions at max torque
2700 rpm
No. of cylinders
4

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, driver protection, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Download datasheets (PDF)

Messersi M60U FAQ

When was the Messersi M60U manufactured?

The Messersi M60U was first produced in 2021.

How much does the Messersi M60U weigh?

The Messersi M60U weighs 5.75 tons.

What are the transport dimensions of the Messersi M60U mini excavator?

The Messersi M60U has a transport length of 5.24 meters, a transport width of 2.07 meters, and a transport height of 2.6 meters.

What is the track width of the Messersi M60U mini excavator's undercarriage?

The Messersi M60U mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Messersi M60U mini excavator?

The Messersi M60U mini excavator has a dredging depth of 3.743 meters and a maximum horizontal reach of 6.58 meters.

What are the power ratings of the Messersi M60U mini excavator?

The source data does not provide any power ratings for the Messersi M60U mini excavator.

What are the bucket specifications of the Messersi M60U mini excavator?

The Messersi M60U mini excavator has a bucket capacity of 0.157 cubic meters and a bucket width of 0.6 meters.

How much is a Messersi M60U Mini excavator (2021u20132025) worth?

The residual value of the Messersi M60U depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
