M55U Messersi excavator specs & dimensions (2021 - 2026)

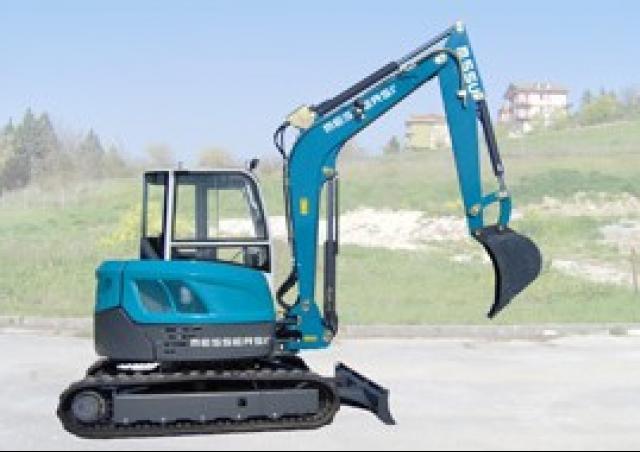

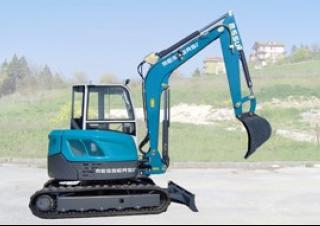

Messersi M55U is a Mini Excavator manufactured since 2021, with a weight of 5.25 tons. It features a track width of 400 mm, a tran…

Messersi M55U is a Mini Excavator manufactured since 2021, with a weight of 5.25 tons. It features a track width of 400 mm, a transport length of 5.55 meters, a transport width of 2.07 meters, and a transport height of 2.56 meters. The machine has a tear-out force of 39.7 kN, a dredging depth of 3.46 meters, and a maximum horizontal reach of 6.22 meters. The bucket width is 0.6 meters with a capacity of 0.157 cubic meters. Special equipment includes air conditioning, a blade, hydraulic quick hitch, mechanical quick hitch, and rubber tracks.

Mini Excavators Messersi M55U

Technical specs - M55U Messersi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.25 t
Transport length
5.55 m
Transport width
2.07 m
Transport height
2.56 m
Bucket capacity
0.157 m³
Bucket width
0.6 m
Track width
400 mm
Max. Reach horizontal
6.22 m
Dredging depth
3.46 m
Tear-out force
39.7 kN
Model series
M
Engine manuf.
Kubota
Engine type
V2403M-T
Engine power
44 kW
Displacement
2.434 l
Revolutions at max torque
2700 rpm
No. of cylinders
4

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, driver protection, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Download datasheets (PDF)

Messersi M55U FAQ

When was the Messersi M55U manufactured?

The Messersi M55U was first produced in 2021.

How much does the Messersi M55U mini excavator weigh?

The Messersi M55U mini excavator weighs 5.25 tons.

What are the transport dimensions of the Messersi M55U mini excavator?

The Messersi M55U has a transport length of 5.55 meters, a transport width of 2.07 meters, and a transport height of 2.56 meters.

What is the track width of the Messersi M55U mini excavator?

The Messersi M55U mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Messersi M55U mini excavator?

The Messersi M55U mini excavator has a dredging depth of 3.46 meters and a maximum horizontal reach of 6.22 meters.

What is the tear-out force of the Messersi M55U mini excavator?

The Messersi M55U mini excavator has a tear-out force of 39.7 kN.

What are the specifications of the primary work tool bucket on the Messersi M55U mini excavator?

The primary work tool bucket of the Messersi M55U has a capacity of 0.157 cubic meters and a width of 0.6 meters.
