M 50 Messersi excavator specs & dimensions (2007 - 2009)

Messersi M 50 is a mini excavator manufactured from 2007 to 2009, with a weight of 4.9 tons. It features a track width of 400 mm a…

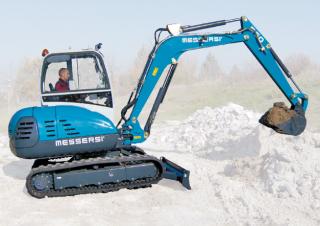

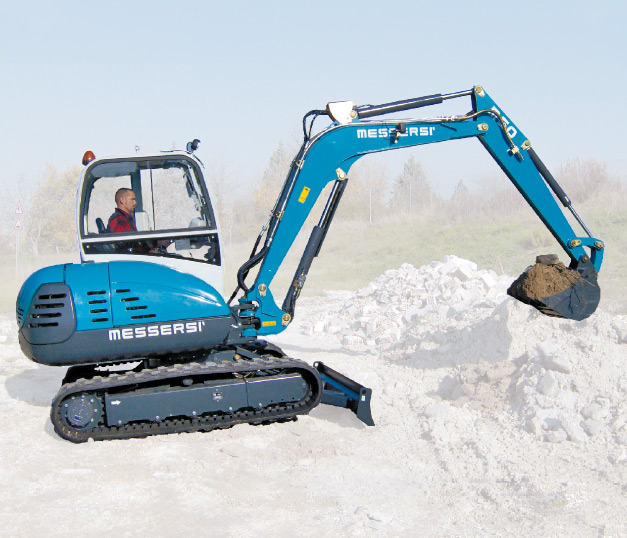

Messersi M 50 is a mini excavator manufactured from 2007 to 2009, with a weight of 4.9 tons. It features a track width of 400 mm and a transport width of 1.87 meters. The machine has a tear-out force of 28 kN and a bucket capacity of 0.18 cubic meters. Special equipment includes a blade and rubber tracks.

M 50

Years of manufacture: 2007—2009

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - M 50 Messersi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 4.9 t

Transport width: 1.87 m

Bucket capacity: 0.18 m³

Track width: 400 mm

Driver protection: KbR

Dredging depth: 3.63 m

Tear-out force: 28 kN

Model series: M

Engine manuf.: Cummins

Engine type: A2300

Engine power: 30.5 kW

Revolutions at max torque: 2200 rpm

More technical details, like: transport length, transport height, bucket capacity min., bucket capacity max., bucket width, standard tyres, max. reach horizontal, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Messersi M 50 FAQ

When was the Messersi M 50 manufactured?

The Messersi M 50 was manufactured from 2007 to 2009.

How much does the Messersi M 50 weigh?

The Messersi M 50 weighs 4.9 tons.

What is the transport width of the Messersi M 50 mini excavator?

The transport width of the Messersi M 50 mini excavator is 1.87 meters.

What is the track width of the Messersi M 50 mini excavator?

The Messersi M 50 mini excavator has a track width of 400 mm.

What is the dredging depth of the Messersi M 50 mini excavator?

The Messersi M 50 mini excavator has a dredging depth of 3.63 meters.

What is the tear-out force of the Messersi M 50 mini excavator?

The Messersi M 50 mini excavator has a tear-out force of 28 kN.

What is the bucket capacity of the Messersi M 50 mini excavator?

The Messersi M 50 mini excavator has a bucket capacity of 0.18 cubic meters.

What operator safety and support features does the Messersi M 50 have?

The Messersi M 50 is equipped with a cabin that includes ROPS for driver protection.

How much is a Messersi M 50 Mini excavator (2007u20132009) worth?

The residual value of the Messersi M 50 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
