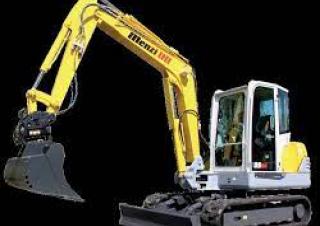

IHI 55v4 Menzi excavator specs & dimensions (2019 - 2022)

Menzi IHI 55v4 is a mini excavator manufactured from 2019 to 2022. It has a weight of 5.14 tons, a transport length of 5.37 meters…

Menzi IHI 55v4 is a mini excavator manufactured from 2019 to 2022. It has a weight of 5.14 tons, a transport length of 5.37 meters, a transport width of 1.99 meters, and a transport height of 2.57 meters. The machine features a tear-out force of 31 kN, a dredging depth of 3.59 meters, and a maximum horizontal reach of 5.97 meters. The bucket width is 0.8 meters, and it comes equipped with a blade and rubber tracks.

Mini Excavators Menzi IHI 55v4

Technical specs - IHI 55v4 Menzi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.14 t
Transport length
5.37 m
Transport width
1.99 m
Transport height
2.57 m
Bucket width
0.8 m
Driver protection
Kb
Max. Reach horizontal
5.97 m
Dredging depth
3.59 m
Tear-out force
31 kN
Model series
IHI
Engine manuf.
Kubota
Engine type
V2403-DI-EDM
Displacement
2.43 l
No. of cylinders
4

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., track width, standard tyres, engine power, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Menzi IHI 55v4 FAQ

When was the Menzi IHI 55v4 manufactured?

The Menzi IHI 55v4 was manufactured from 2019 to 2022.

How much does the Menzi IHI 55v4 weigh?

The Menzi IHI 55v4 weighs 5.14 tons.

What are the transport dimensions of the Menzi IHI 55v4 mini excavator?

The Menzi IHI 55v4 mini excavator has a transport length of 5.37 meters, a transport width of 1.99 meters, and a transport height of 2.57 meters.

What are the excavation performance specifications of the Menzi IHI 55v4 mini excavator?

The Menzi IHI 55v4 mini excavator has a dredging depth of 3.59 meters and a maximum horizontal reach of 5.97 meters.

What is the tear-out force of the Menzi IHI 55v4 mini excavator?

The Menzi IHI 55v4 mini excavator has a tear-out force of 31 kN.

What is the bucket width of the Menzi IHI 55v4 mini excavator?

The Menzi IHI 55v4 mini excavator has a bucket width of 0.8 meters.

What operator safety features does the Menzi IHI 55v4 have?

The Menzi IHI 55v4 has a cabin for driver protection.
