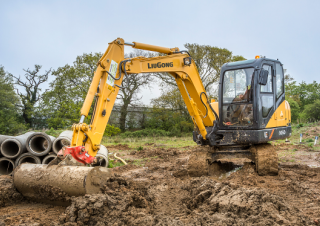

906D Liugong excavator specs & dimensions (2017 - 2025)

Liugong 906D is a Crawler Excavator manufactured since 2017. It has a weight of 5.9 tons and a track width of 400 mm. The transpor…

Liugong 906D is a Crawler Excavator manufactured since 2017. It has a weight of 5.9 tons and a track width of 400 mm. The transport dimensions are 5.9 meters in length, 1.9 meters in width, and 2.63 meters in height. The excavator features a tear-out force of 41 kN, a dredging depth of 3.875 meters, and a maximum horizontal reach of 6.065 meters. The bucket capacity is 0.12 cubic meters.

Mini Excavators Liugong 906D

Visit Liugong live at

Technical specs - 906D Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.9 t
Transport length
5.9 m
Transport width
1.9 m
Transport height
2.63 m
Bucket capacity
0.12 m³
Track width
400 mm
Max. Reach horizontal
6.065 m
Dredging depth
3.875 m
Tear-out force
41 kN
Model series
D
Engine manuf.
Yanmar
Engine type
4TNV94L-BVLY
Engine power
33.7 kW
Displacement
3.05 l
Revolutions at max torque
1100 rpm
Max. torque
210 Nm
No. of cylinders
4
Emission level
Tier 3 / Stage IIIA

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, driver protection, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liugong 906D FAQ

When was the Liugong 906D manufactured?

The Liugong 906D was first produced in 2017.

How much does the Liugong 906D mini excavator weigh?

The Liugong 906D mini excavator weighs 5.9 tons.

What are the transport dimensions of the Liugong 906D mini excavator?

The Liugong 906D has a transport length of 5.9 meters, a transport width of 1.9 meters, and a transport height of 2.63 meters.

What is the track width of the Liugong 906D mini excavator's undercarriage?

The Liugong 906D mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Liugong 906D mini excavator?

The Liugong 906D mini excavator has a dredging depth of 3.875 meters and a maximum horizontal reach of 6.065 meters.

What is the tear-out force of the Liugong 906D mini excavator?

The Liugong 906D mini excavator has a tear-out force of 41 kN.

What is the bucket capacity of the Liugong 906D mini excavator?

The bucket capacity of the Liugong 906D mini excavator is 0.12 cubic meters.

How much is a Liugong 906D Mini excavator (2017u20132025) worth?

The residual value of the Liugong 906D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
