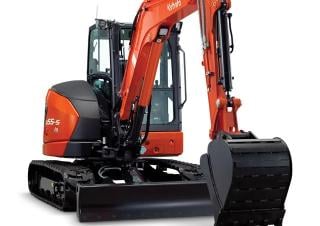

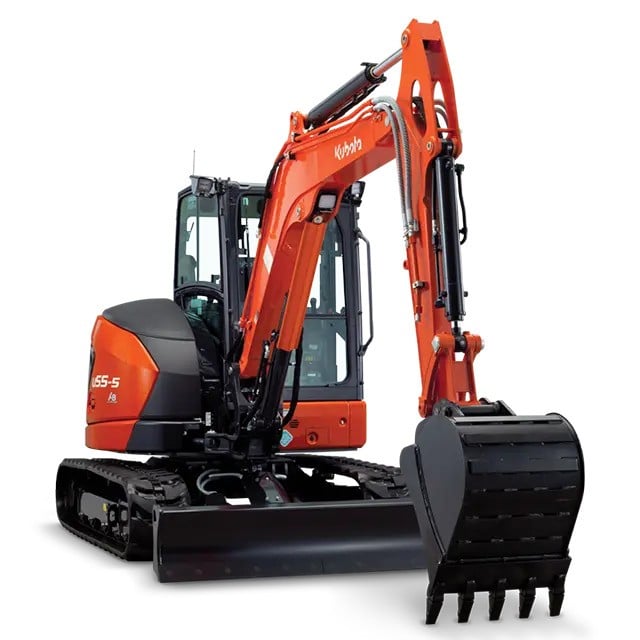

U55-5 Kubota excavator specs & dimensions (2023 - 2026)

Weight: 5.555t – Transport length: 5.415m – Transport width: 1.96m – Transport height: 2.55m – Track width: 400mm – Max. Reach hor…

Weight: 5.555t – Transport length: 5.415m – Transport width: 1.96m – Transport height: 2.55m – Track width: 400mm – Max. Reach horizontal: 6.105m

Check out detailed specifications, information and technical data for Kubota U55-5 excavator manufactured between 2023 - 2026. Get more in-depth insight with Kubota U55-5 digger specifications. See information, like: Weight: 5.555t – Transport length: 5.415m – Transport width: 1.96m – Transport height: 2.55m – Track width: 400mm – Max. Reach horizontal: 6.105m and more.

Mini Excavators Kubota U55-5

Technical specs - U55-5 Kubota

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.555 t
Transport length
5.415 m
Transport width
1.96 m
Transport height
2.55 m
Track width
400 mm
Max. Reach horizontal
6.105 m
Dredging depth
3.63 m
Model series
U
Engine manuf.
Kubota
Engine type
V2607-CR-E5-BH1
Engine power
35.5 kW
Displacement
2.615 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, driver protection, tear-out force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kubota U55-5 FAQ

When was the Kubota U55-5 manufactured?

The Kubota U55-5 was first produced in 2023.

How much does the Kubota U55-5 weigh?

The Kubota U55-5 weighs 5.56 tons.

What are the transport dimensions of the Kubota U55-5 mini excavator?

The Kubota U55-5 has a transport length of 5.42 meters, a transport width of 1.96 meters, and a transport height of 2.55 meters.

What is the track width of the Kubota U55-5's undercarriage?

The Kubota U55-5 has a track width of 400 mm.

What are the excavation performance specifications of the Kubota U55-5 mini excavator?

The Kubota U55-5 mini excavator has a dredging depth of 3.63 meters and a maximum horizontal reach of 6.105 meters.
