    Kubota U35-3α2 excavator specs (2008 - 2011)

    Rate this machine now!

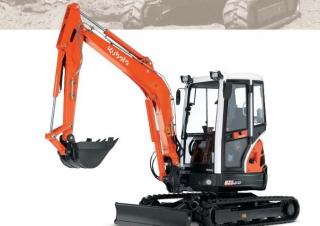

    Manufactured by Kubota, this is the U 35-3 Alpha 2 mini excavator. Find and download detailed specs and data sheets for this machi... Read more

    Manufactured by Kubota, this is the U 35-3 Alpha 2 mini excavator. Find and download detailed specs and data sheets for this machine here.

    This mini excavator is built to provide up to 20.3kW or 27 horse power, delivered from its powerful Kubota engine to the 3.36t U 35-3 Alpha 2 machine. The U 35-3 Alpha 2 is categorised in the biggest machine segment in the mini excavators category. The U 35-3 Alpha 2’s size is 1.55m x 4.45m x 2.44m. The bucket of U 35-3 Alpha 2 has a capacity of 0.08m³ which is average for this type of machine.

    Since 2008, this model has included Blade and Rubber track. It has been sold without air Aircondition, Quick hitch hydr. And Track adaption as of 2011. There are more detailed specifications and machine descriptions available in the original Kubota U 35-3 Alpha 2 specs data sheet. Download a free data sheet in German and English from LECTURA Specs.

    The production stopped in 2011, where this U 35-3 Alpha 2 was available at a new list price between €56000 and €71000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

    Kubota currently produces 39 other mini excavators, which range from 1t up to 5.5t - the most visited on LECTURA Specs are KX 61-3 GL, KX 71-3 GL, KX 057-4. Want more detailed specifications? Download the latest Kubota U 35-3 Alpha 2 specs data sheet on LECTURA Specs today!

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 3.36 t
    • Transport length 4.45 m
    • Transport width 1.55 m
    • Transport height 2.44 m
    • Bucket capacity 0.08 m³
    • Bucket width 0.495 m
    • Track width 300 mm
    • Max. Reach horizontal 5,16 m
    • Dredging depth 3,06 m
    • Tear-out force 26,5 kN
    • Engine manuf. Kubota
    • Engine type D1503M-EBH 4EC-N
    • Engine power 20.3 kW
    • Displacement 1.49 l
    • Revolutions at max torque 2300 rpm
    • Bucket capacity min. ###
    • Bucket capacity max. ###
    • Standard tyres ###
    • Driver protection ###
    • Dimension lxwxh ###
    • Max. torque ###
    • No. of cylinders ###
    • Cylinder bore x stroke ###
    • Emission level ###

    Basic model with standard bucket

    Special equipment

    • Track adjustment
    • Rubber track
    • Blade
    • Aircondition
    • Quick hitch hydr.
    • Quick hitch mech.

    Carbon footprint calculation

    Calculate the carbon footprint of the Kubota U35-3α2 per hour of use:

    Or go directly to ERA Equipment CO2 Calculator

    service provided by ERA

    Kubota U35-3α2 overview

    • Kubota U35-3α2 features overview

      Strong digging force
      A well-balanced arm and bucket guarantee superior digging power whenever you need it. The U35-3α3 delivers impressive shovel digging force. Its powerful and balanced arm and bucket allow the operator to finish work more effectively.
      Working Equipment
      1350 mm Arm, auxiliary hydraulic circuit line to the arm end, 2 working lights on the cab and 1 light on the boom, ROPS (Roll-over Protective Structure, ISO3471), FOPS (Falling Object Protective Structure) Level 1, weight adjustable half suspension seat, seat belt, hydraulic pilot control lever with wrist rests, travel lever with foot pedals, cabin heater for defrost & dumping, emergency exit hammer, front window electrically supported with 2 gas flaps, 12 V power source for radio stereo, 2 speakers and radio antenna, location for radio, cup holder
      Canopy
      ROPS (Roll-over Protective Structure, ISO3471), FOPS (Falling Object Protective Structure) Level 1, weight adjustable half suspension seat, seat belt, Hydraulic pilot control lever with wrist rests, travel lever with foot pedals.
    • Engine / Driveline and transmission

      Auto-shift
      The Auto-Shift system enables automatic travel shift from high to low depending on traction force and terrain. This achieves smoother operations when dozing and turning.
      D I G I T A L P A N E L
      Informative, interactive and functional. Kubota's Intelligent Control System keeps you in line with the vital signs of the excavator. It accurately shows diagnosis of current working conditions and warning indicators for engine speed and hour meter as well as fuel, temperature and oil level. When filling up using fuel, our panel also informs the operator that the tank is almost full; it alerts the operator during routine maintenance. Overall, the panel reduces an excavator repair time to a decrease in total operating costs.
      Kubota engine
      Kubota's unique new 31.1 hp (Three Vortex Combustion System) E-TVCS enables high energy output, low vibration and low fuel consumption while minimizing exhaust emissions.
      Standard Equipment Engine/Fuel System
      Double Element Air Cleaner, Electric Fuel Pump, Auto Idling
    • Hydraulics

      Load Sensing Hydraulic System
      Kubota's improved 1-pump load sensing hydraulic system ensures smoother operation, regardless of the load size. It allows flow of the hydraulic oil according to the specific area of lever movement of the operator.
      Adjustable maximum oil flow on auxiliary circuit
      The maximum oil flow rate of the auxiliary circuit can be changed/adjusted by simply pushing a switch without needing additional tools. This simplifies the use of front attachments such as tilt shovels, brush cutters and hydraulic hammers so you can reduce or increase flow to get exactly the right level of control.
      Third line hydraulic direct return for AUX
      The third line hydraulic return enables higher oil flow efficiency by reducing back pressure when working with hydraulically actuated attachments, such as a hydraulic hammer. It also prevents hydraulic oil contamination.
      Hydraulic System
      Adjustable maximum oil flow at auxiliary circuit (SP1), pressure accumulator, Hydraulic pressure check ports, Straight travel circuit, Third line hydraulic direct return for, auxiliary switch on right control lever.
    • Tyres / Tracks

      Undercarriage
      300 mm rubber track, 1 x upper run roller, 4 x outer flange track roller, 2-speed travel switch on dozer lever.
    • Other features

      Engine inspection
      Primary points, such as the engine and air cleaner, can easily be inspected and serviced via the rear bonnet of the engine. Fuel filters and water separators are independently installed from each other both located within the reinforced hood which is widely open for quick inspection and routine maintenance. An engine inspection window is also located behind the seat to facilitate access to the engine injection nozzles.
      Two-piece hose design
      The two-piece hose design on dozer and boom cylinders reduces the replacement time of the hose. In addition, in this design virtually eliminates the need to enter the machine for maintenance
      Control valve inspection
      A quick and easy inspection of the control valve is possible by simply opening the locking on the bonnet located to the right of the cab. If more detailed maintenance or repairs are required, the remaining panels can be easily removed at the swing frame with standard tools.
    • Safety

      Swivel negative brake
      The swing negative brake automatically locks the swing function into its current position when the engine is stopped or the pilot control safety lever is raised. Therefore, the swing transport lock pin is no longer required.
      ROPS/FOPS cabin (Level,
      For maximum operator safety, the cab offers a Rollover Protection Structure (ROPS) and Falling Object Protection Structure (FOPS).
